TP-Link AC2600 Wi-Fi Range Extender
|Standards and Protocols||IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a|
|interface||1x 10/100/1000M Ethernet Port (RJ45)|
|Button||WPS Button, Reset Button, LED Button, Power Button|
|power consumption||12W（max power consumption)|
|Dimensions (B * T * H)||6.4x 3.4 x 1.6 in. (163 x 86 x 40mm)|
|frequency||2.4GHz & 5GHz(11ac)|
|Signal rate||5GHz: Up to 1733Mbps |
2.4GHz: Up to 800Mbbs
|Receiver sensitivity||5GHz: |
11a 6Mbps: -96dBm at 10% PER
11a 54Mbps: -78dBm at 10% PER
11ac HT20 mcs8: -69dBm at 10% PER
11ac HT40 mcs9: -66dBm at 10% PER
11ac HT80 mcs9: -63dBm at 10% PER
11g 54M: -79dBm at 10% PER
11n HT20 mcs7: -77dBm at 10% PER
11n HT40 mcs7: -74dBm at 10% PER
|Wireless Modes||Range Extender/Access Point|
|Wireless Functions||Wireless Statistic|
Concurrent Mode boost both 2.4G/5G WiFi band
High Speed Mode for great speed for HD Gaming and video
Domain Login Function
|Wireless Security||64/128-bit WEP|
WPA-PSK / WPA2-PSK
|Dimensions of package (B * T * H)||7.9 x 4.9 x 3.8in. (202x 125 x 97mm)|
|System requirements||Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.|
|Surroundings||Operating Humidity: 10%~90% non-condensing|
Storage humidity: 5% .. 90%, non-condensing

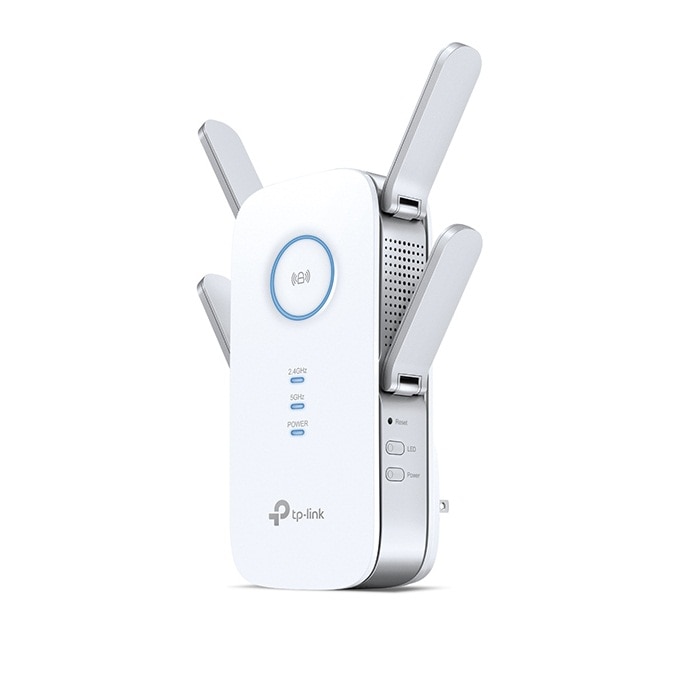

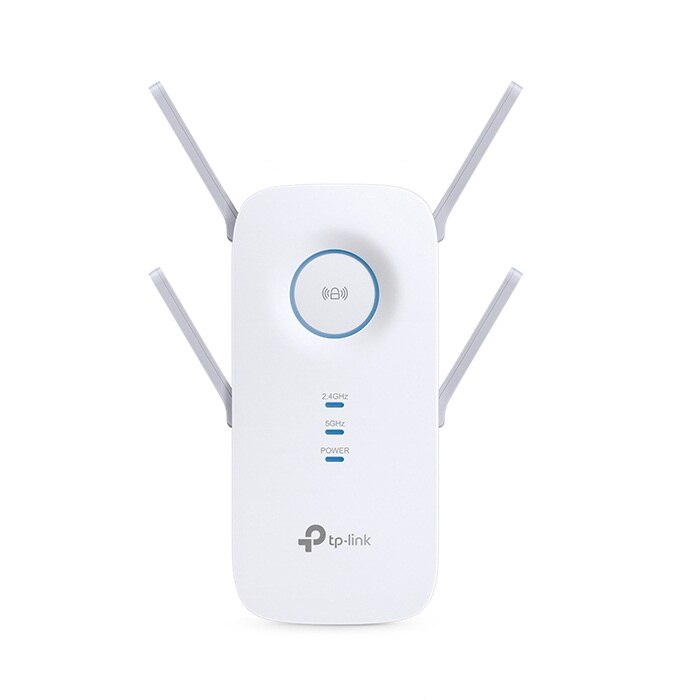

AC2600 Wi-Fi Range Extender
Far Reaching Wi-Fi and Powerful Performance
Powerful Quad-Antenna design with Beamforming delivers highly targeted Wi-Fi connections to improve throughput and signal quality for stronger Wi-Fi across your home. The Intelligent Processing Engine balances the demands of your devices to keep their connections fast and uninterrupted, sending Wi-Fi traffic to dedicated processors while the powerful dual-core CPU handles the rest.
*Maximum extended Wi-Fi coverage specification is based on performance test results. Actual Wi-Fi coverage may vary due to different environment, building material and wireless interferences.
4-Stream AC2600 Dual Band Wi-Fi
Using 4-Stream and TurboQAM technology to boost its Wi-Fibandwidth, the RE650 reaches industry leading maximum speeds of up to 800 Mbps on 2.4GHz and 1733 Mbps on 5GHz. This provides the performance necessary to support your most demanding online applications, including 4K streaming and gaming.
More Connections and Faster for Everyone
MU-MIMO technology allows the RE650 to serve up to four devices at once, reducing wait time and greatly increasing Wi-Fi throughput for every device. With MU-MIMO, the RE650 runs up to 4x faster than traditional AC range extender.

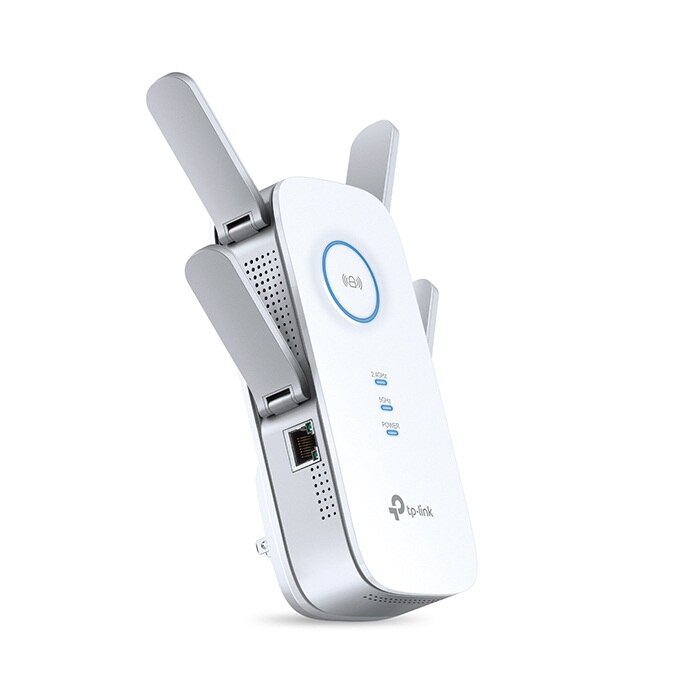

High-Speed Gigabit Wired Connection
The RE650’s Gigabit Ethernet port lets you connect a wired device such as a game console or smart TV to create a fast, reliable wired connection.
Find the Best Spot with Intelligent Signal Indicator
The Intelligent Signal Light helps you quickly find the best location to install the RE650.
Built-In Access Point Mode
RE650 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 4×4 MU-MIMO dual band wireless access point.
Drop-Free and Seamless Dual Band Connections
If one of the main router's dual bands drops suddenly, or in case the main router can only deliver single band, the RE650 still provides stable dual-band connections for clients, allowing you to enjoy stable and drop-free experience on all your devices.
Easy Monitoring and Control
TP-Link Tether is an intuitive app that allows users to conveniently monitor the state of your range extender, controlling its functions and altering its settings from any compatible mobile device.
- Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage*
- 4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz*
- 4×4 MU-MIMO** – Simultaneously transfers data to multiple devices for 4x faster performance
- Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections
- Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point***
