TP-Link PoE+ Injector 2 Gigabit Ports

(0)No Reviews yet
  • SKU: TL-POE160S
  • Manufacturer: TP-Link
  • Data Sheet: Download

Product Information

TP-Link TL-POE160S

PoE+ Injector 2 Gigabit Ports

What This Product Does

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.


  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at standards, supplies up to 30 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation, requires no configuration
  • Integrated power supply


Specifications TL-POE160S

Standards and ProtocolsIEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
CertificationFCC, CE, RoHS
EnvironmentOperating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

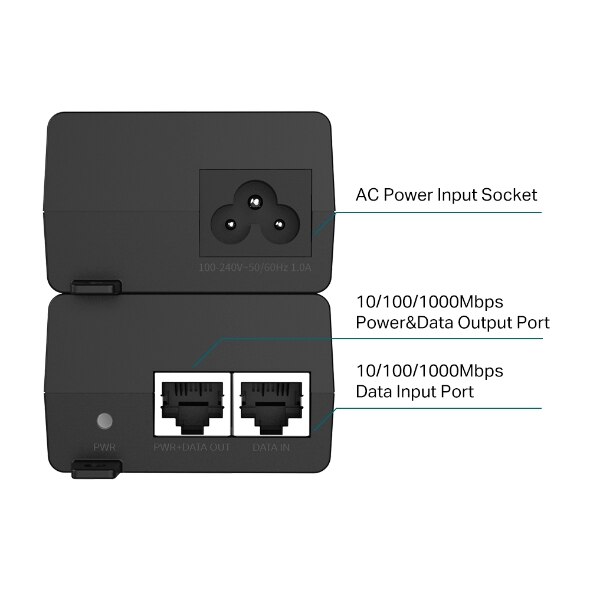

Ports1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket
Power ConsumptionInput: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W)
Basic FunctionAuto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
LED IndicatorON: Supplying power normally OFF: No power supply
Dimensions ( W x D x H )4.9*2.3*1.4 in (125*59.4*36.8 mm)
