TP-Link 2.5 Gigabit PCI Express Network Adapter

(0)No Reviews yet

Out of Stock

 Open chat or call us for stock status

Product Information

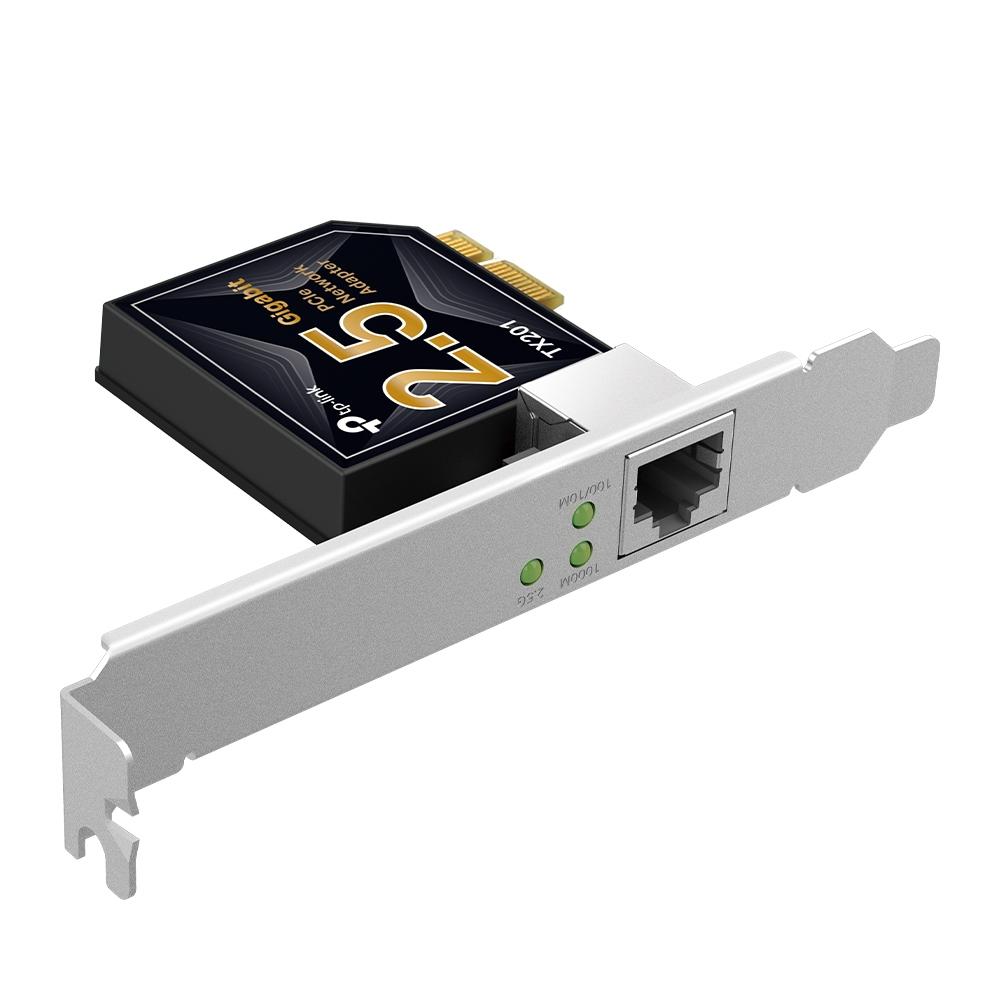

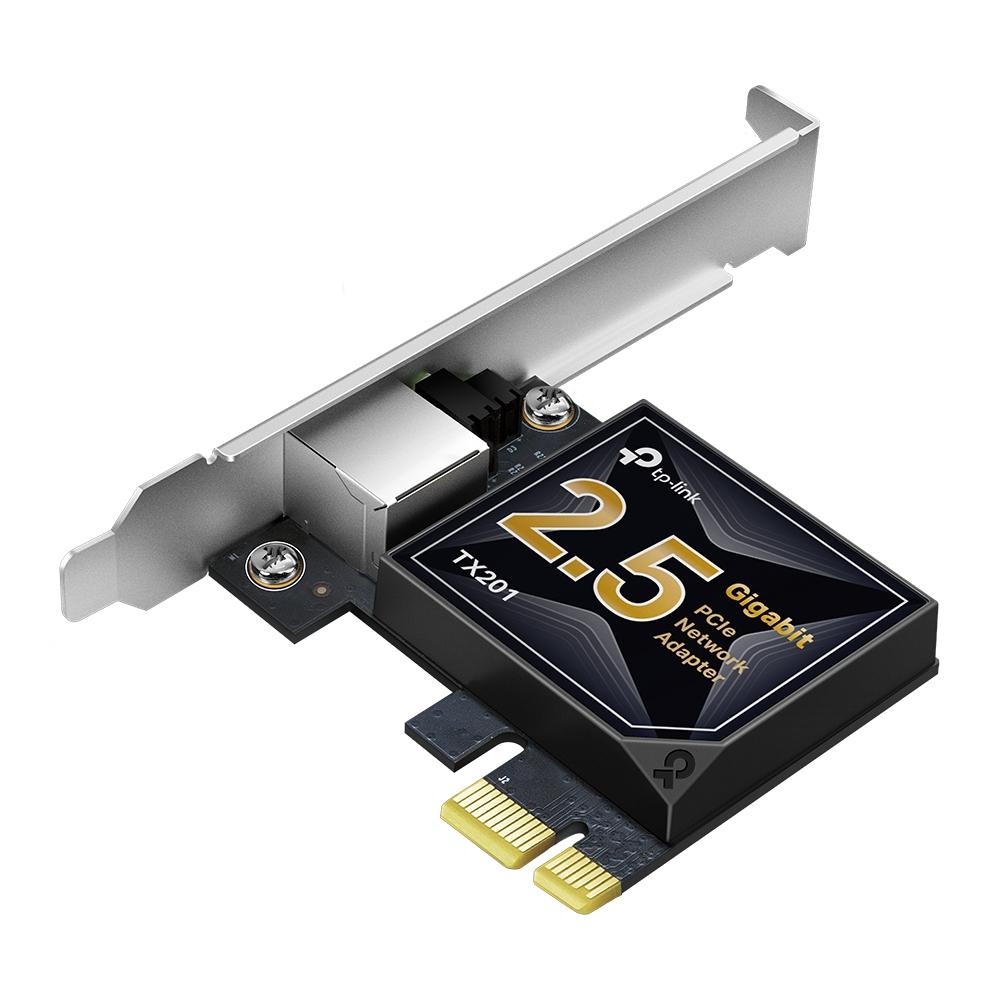

TP-Link TX201

2.5 Gigabit PCIe Network Adapter

Incredible 2.5G Networking

2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.

Household Storage, Share in Seconds

For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

2.5G Extremely Fast Internet Response

With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

Versatile, Multi-Speed Compatibility

2.5G Base-T is backwards compatible with multiple data rates, including 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps Base-T connectivity. The 2.5G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 2.5G networking smoothly.

QoS Support

Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.

Low-Profile Bracket

In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Easy Setup

Simple software installation with the intuitive Utility on the provided CD.

Comprehensive System Support

Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 022/2019/2016/2012 R2/2012/2008 R2, Linux.



Features:

  • 2.5 Gbps Networking - 2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.†
  • Versatile Compatibility - With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
  • Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
  • Comprehensive System Support - Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.‡

Specifications

Specifications TX201

Weight0.11 lbs
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Interface1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port
Network Media2.5GBASE-T/1000BASE-T/100BASE-TX
LED2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act
Data Rates10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode, 20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode
Dimensions120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
Flow Control802.3x
OTHERS
CertificationFCC, CE, RoHS
System RequirementsWindows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux
Environment
Operating Temperature0℃~40℃ (32℉ ~104℉)
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
