Product Information
TP-Link XZ000-G3
1-Port Gigabit GPON Terminal
High-Speed GPON Service
Compliant with the ITU-T G.984 GPON standards, XZ000-G3 supports maximum data rates of up to 2.488Gbps downstream, 1.244Gbps upstream.
Make Fiber-to-the-Home Yours
TP-Link’s XZ000-G3 is a Gigabit Passive Optical Network(GPON) terminal, ideal for Fiber-to-the-Home solution.
Full Gigabit Port
One GPON port and one Gigabit Ethernet port, the XZ000-G3 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Features:
- Quality of Service-Quality of Service control for transaction prioritization and bandwidth management
- Durability-Intelligent power-saving method
- Easy Remote Management-TR-069 protocol enables an operator to remotely configure and manage end-user devices
- Full Gigabit Port-Fiber access and gigabit port provide incredibly fast transfer speeds
Specifications
Specifications TP-Link XZ000-G3

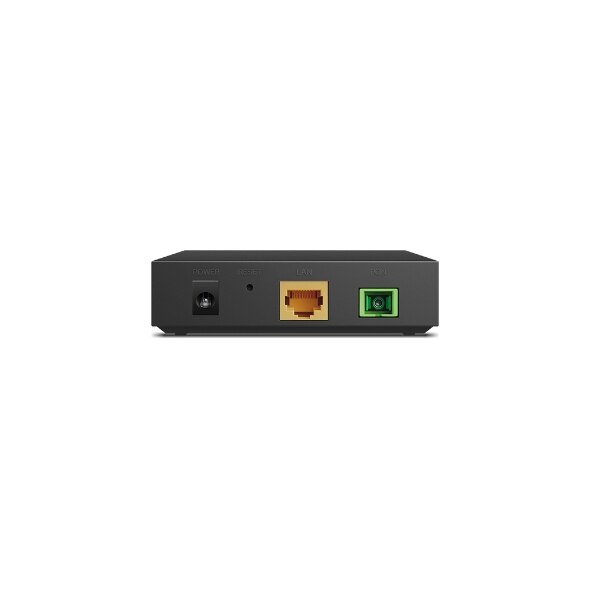

Interface | 1 10/100/1000Mbps RJ45 Port, 1 SC/APC Port |
Button | 1 RESET Button |
External Power Supply | 9VDC/0.6A |
IEEE Standards | IEEE 802.3, 802.3u, 802.1p, 802.1Q |
Data Rates | Upstream: 1.244Gbps, Downstream: 2.488Gbps |
Dimensions ( W x D x H ) Weight | 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm) 0.51 lbs. |
Distance | 0 ~ 20Km Max |
GPON Standards | ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4 |
Optical Module | Class B+ |
Receiver | Super-TIA |
Transmitter | DFB Laser |
Wavelength | Upstream: 1310nm, Downstream: 1490nm |
SOFTWARE FEATURES | |
VLAN | 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
Security | AES Encryption, Packet Filter based on VLAN |
Management | Managed by Web, OMCI and Telnet, Specifed the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
Advanced Features | Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism |
IGMP | IGMP v1/v2/v3 |
OTHERS | |
System Requirements | Microsoft® Windows 8/7/Vista/XP, MAC® OS, NetWare®, UNIX® or Linux |
Certifications | CE, FCC, ROHS |
Environment | Operating Temperature: 0℃~40℃(32℉~104℉); Storage Temperature: -40℃~70℃(-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
