Tripp Lite PowerVerter 750W UPS Inverter 2-Outlets 12VDC-120VAC
- SKU: APS750
- Manufacturer: Tripp Lite
- Data Sheet: Download
Product Information

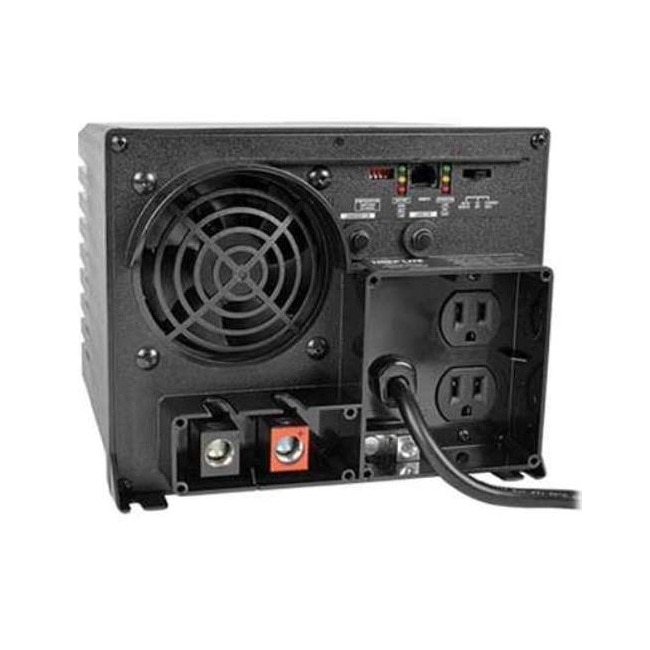

Tripp Lite APS750
APS750 PowerVerter 750W UPS Inverter 2-Outlets 12VDC-120VAC
Tripp Lite's APS750 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 750 watts of continuous 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. OverPower™ inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost™ inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When AC cable is connected to a live wall socket, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 20 amp charging system. Supports an unlimited amount of runtime with any number of user-supplied batteries connected.
Specifications
Specifications APS750
| Product Name | APS750 PowerVerter 750W UPS Inverter 2-Outlets 12VDC-120VAC |
| Product Type | Power Inverter |
| Product Line | PowerVerter |
| Product Series | APS |
| Product Model | APS750 |
| Technical Information | |
| Plug / Connector Type | NEMA 5-15P |
| Receptacles | 2 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 12 V DC, 120 V AC |
| Frequency | 60 Hz ±0.3Hz |
| Output Voltage | 120 V AC ±5% Nominal |
| Load Capacity | 750 W Continuous Power / 1.50 kW Peak Power |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Physical Characteristics | |
| Height | 7" |
| Width | 8.8" |
| Depth | 9" |
| Length | 12.5" |
| Other Information | |
| Color | Black |
| Input Voltage Range | 10 to 15 V DC |
| Status Indicators | 6 diagnostic LEDs indicate: AC present, On battery, Charge rate, Overload, Battery voltage level (high, medium & low) |
| Humidity | 0% to 95% Non-condensing Relative Humidity Operating |
| Input Current | 72 A @ 12 V DC, 8 A @ 120 V AC |
| Power Cord / Cable | 6 ft |
| Protection Type | Overload Protection - Resettable circuit breakers 6A at input, 8A at output |
| Switching Time | 6 ms |
| Temperature | 32°F (0°C) to 104°F (40°C) Operating |
