Tycon Power UV Resistant Polycarbonate IP66 11x7x6″ Outdoor Enclosure
- SKU: ENC-PL-11x7x6
Product Information
Tycon Power ENC-PL-11x7x6
UV Resistant Polycarbonate IP66 11x7x6″ Outdoor Enclosure
The ENC-PL-11x7x6 outdoor enclosures from Tycon Systems® cater to applications that require a lightweight, sturdy, weatherproof, and RF transparent solution to house various electronics. Featuring a hinged door with gasket seals, these enclosures ensure reliable protection. The toggle clamps secure the door effectively, and the included combination lock provides added security for the contents inside.
Interior Features

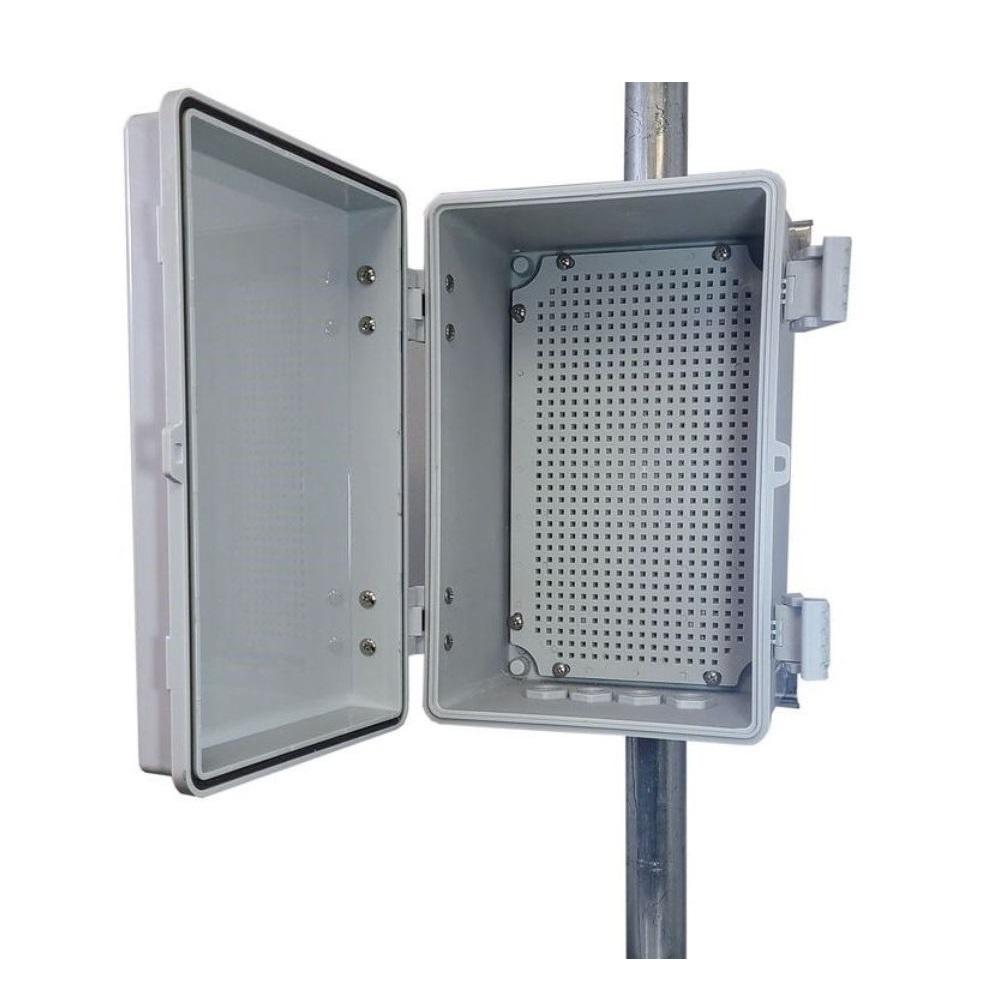

Flexible Mounting Options: Inside the enclosure, a perforated universal ABS backplate allows for flexible mounting of customer devices using a #8 sheet metal screw. This feature ensures that you can easily install and organize your electronic components as needed.
Versatile Mounting Options

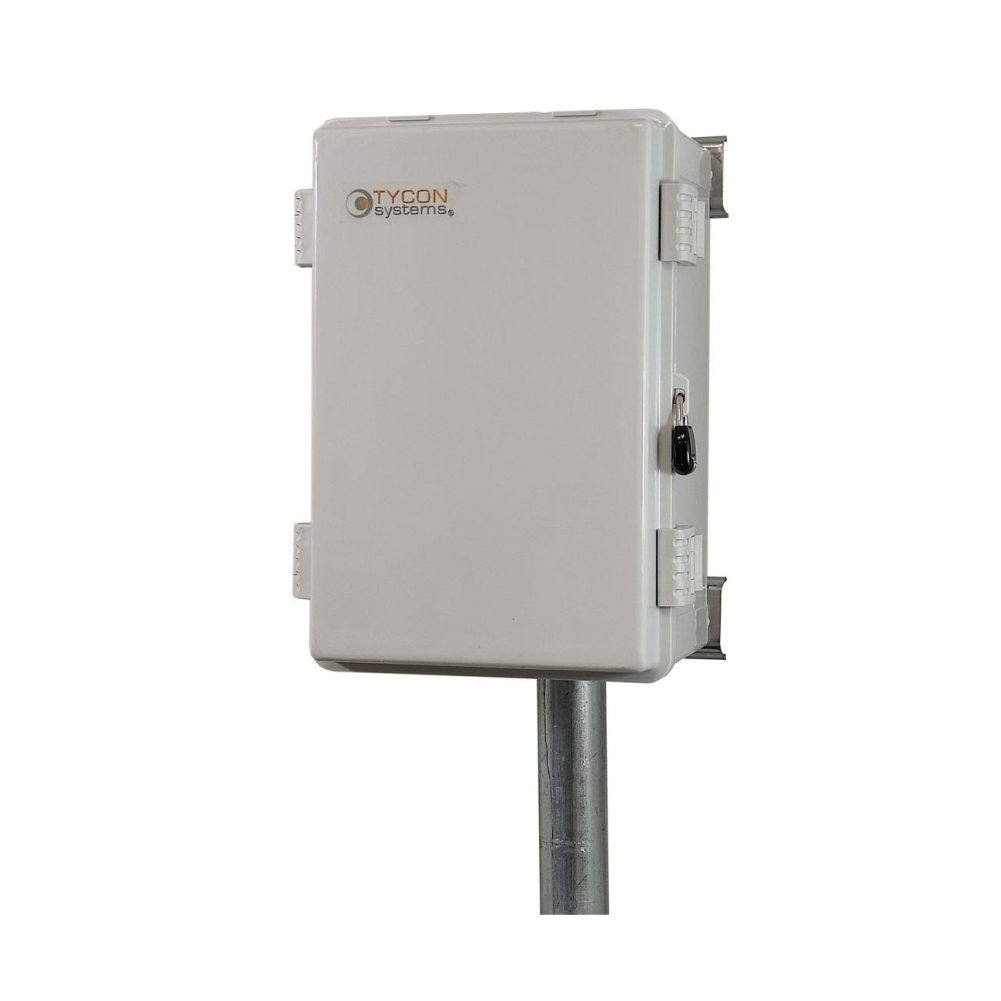

Wall or Pole Mounting: You can mount the enclosure on walls or poles using the included hardware. The pole mounting supports poles with up to a 4-inch diameter. For larger diameter poles, you can use commercially available stainless steel straps to fit almost any diameter. This versatility makes the enclosure suitable for a wide range of installation scenarios.
Cable Management and Entry
Weatherproof Cable Entry/Exit: The enclosure comes with four 20mm holes equipped with weatherproof plugs. These holes can serve as feedthroughs for cables and wires by using appropriate cable glands or conduit fittings. This feature maintains the enclosure’s integrity and protection against environmental elements.
Durability and Construction
UV Protected and Corrosion Resistant: Constructed from UV-protected polycarbonate, the enclosure offers long-lasting durability. All hardware is corrosion-resistant, further enhancing the reliability and longevity of the enclosure in harsh outdoor conditions.
Features:
- Weatherproof Nema 4X / IP65, UV resistant, outdoor enclosure
- Hinged Door with toggle clamp closures
- Gasket Sealed and Lockable, Combo Lock Included
- Universal perforated backplate for flexible interior mounting
- Four Weatherproof 20mm holes & weatherproof plugs
- Wall and Pole Mountable (Includes Mounting Hardware)
Applications:
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Outdoor Utilities
- Solar and Wind Power
Specifications
Specifications ENC-PL-11x7x6
| Enclosure Type | UV Protected Polycarbonate |
| Weatherproofing | Nema 4X / IP65 |
| Enclosure Mounting | Wall or pole mount with included hardware |
| Interior Mounts | Perforated ABS Plate, 7.5 x 7.5mm grid |
| Recommended screw for plate | #8 x 3/8 (4 x 9.5mm) sheet metal screw |
| Feedthrough Holes | Qty 4 20mm (0.787”) diameter |
| Waterproof Hole Plugs | Qty 4 20mm gasketed screw plugs(included) |
| Pole Mount Type | Qty 2 Stainless Steel Hose Clamps (included) |
| External Size (LxWxD) | 12 x 8.5 x 7" (305 x 216 x 178mm) |
| Internal Size (LxWxD) | 11 x 7 x 6" (279 x 178 x 152mm) |
| Weight | 4lb (1.8kg) |
| Warranty | 3 Years |
