Tycon Power Feedthru RJ45, 20mm thread, 9-14mm adjustment range, black, EPDM Rubber Seal
- SKU: 5700028
$0.85 $0.89
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Tycon Power 5700028
Feedthru RJ45, 20mm Thread, 9-14mm Adjustment Range, Black, EPDM Rubber Seal

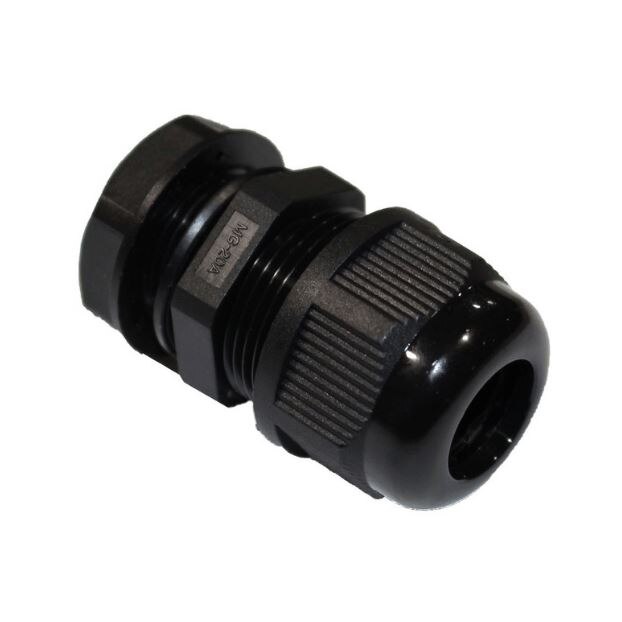

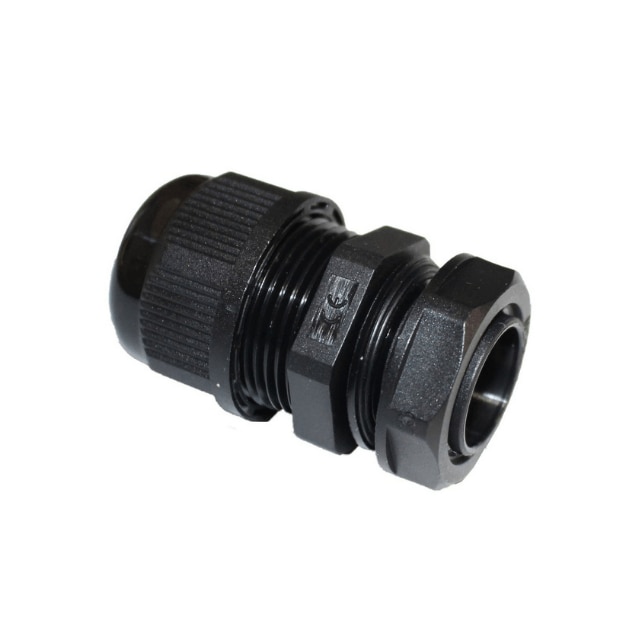

The Tycon 5700028 is a Cable Gland Feedthrough with lock nut and rubber washer that provides IP68 sealing of cables entering or exiting an enclosure.
Features:
- IP68 Waterproofing
- Accepts 3-10mm Cable Diameter Range
- UV Resistant
Applications:
- Remote Power Systems
- Solar Power Applications
- Outdoor Electronics
- Wireless Equipment
Specifications
Specifications 5700028
| Cable Diameter Range | 3-10mm |
| Mounting Hole | 20mm |
| Material | Nylon 66 |
| Color | Black |
| Flamability Rating | UL94V-2 |
| Environmental Protection | IP68 |
| Relative Humidity | <100% |
| Certifications | CE, RoHS |
| Operating Temp | -30°C to 70°C (-22°F to 158°F) |
| Max Storage Temperature | 85°C (185°F) |
| Weight | 240g (0.53lb ) |
| Warranty | 3 years |
