  • Tycon Power Weatherproof Steel Outdoor Enclosure, 23x24x16"

Tycon Power Weatherproof Steel Outdoor Enclosure, 23x24x16"

US$‎360.95 US$‎379.95
  • SKU: ENC-STL-24x24x16
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: Direct Ship Item Ships direct from manufacturer usually same day Email me when this product is in stock!
US$‎360.95 US$‎379.95

Add ons (click to select)

Specifications ENC-STL-24x24x16

Enclosure TypePowder Coated Steel
WeatherproofingNema 4X / IP65
Enclosure MountingWall or pole mount with U Bolt or hose clamps
Interior Mounts 1U 19" Rackmount (13.9" depth), 4" Long Din Rails (4), Din Rail Mounts (4)
Enclosure External Size 24.1 x 24.1 x 17.5" (612.5 x 612.5 x 445.6mm)
Enclosure Internal Size 23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm)

Tycon Power ENC-STL-24x24x16

Weatherproof Steel Outdoor Enclosure, 23x24x16"

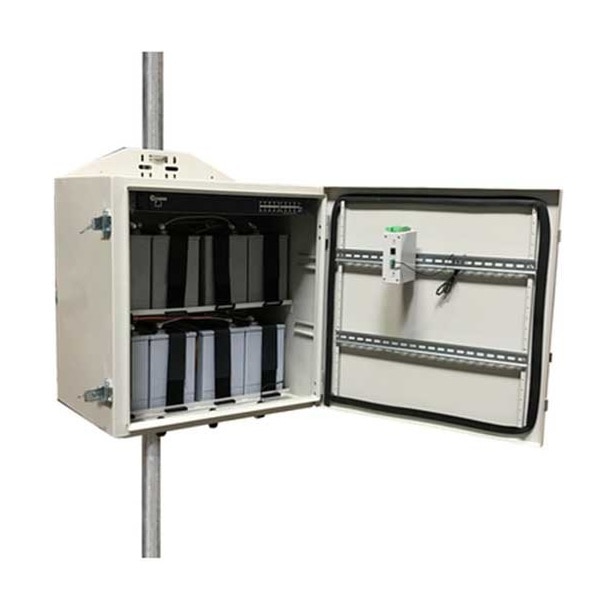

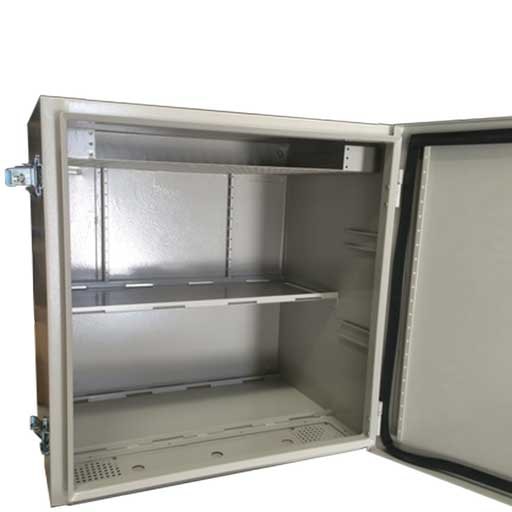

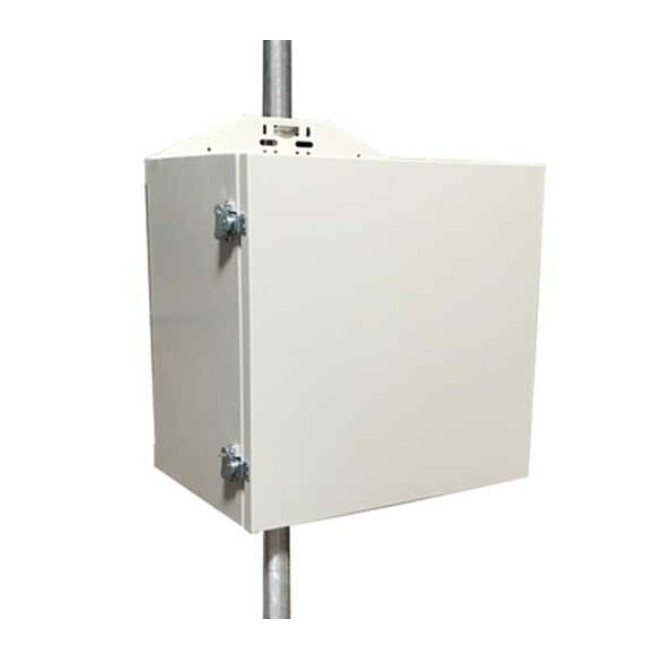

The ENC-STL-24x24x16 outdoor enclosures are designed for applications that require a sturdy, weatherproof enclosure to house various electronics. They are made from UV resistant materials and gasket sealed for long service life. They are able to be both wall or pole mounted with the included U-Bolts. Heavy duty pole mounting can accommodate up to a 4" diameter pole. For larger poles, stainless steel straps are recommended.

The enclosure is designed to be passively ventilated and also includes a thermostatically controlled ventilation system that runs on 12VDC - 24VDC, and turns on when interior temperatures exceed 45°C.

Enclosure can be securely locked. Door closures are two stainless draw latches that can accommodate up to 9mm (0.35") diameter user supplied padlock.

Comes with 3 RJ45 Feedthru cable glands for weatherproof cable entry/exit. The cable glands are mounted in the bottom of the enclosure on a removable gasketed access plate. Enclosure is corrosion resistant, material is powder coated steel, and all hardware is stainless steel.


  • Weatherproof Nema 4X / IP65, UV resistant, outdoor enclosures
  • Ventilated, Gasket sealed and lockable using padlocks
  • 1U 19" rackmount shelf
  • Two battery shelves, can hold up to 400Ah of battery
  • Built in mounting for DIN rails on inside door and back
  • Built in DIN rails on inside left and right sides
  • Weatherproof cable feedthroughs
  • Thermostatically controlled ventillation
  • Wall and pole mountable (includes mounting hardware)
