Tycon Power Two 802.3at to one 4 Pair 60W Gigabit Passive PoE converter

US$‎85.45 US$‎89.95
  • SKU: POE-CONV-2AT-60
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: 79 In Stock    (updated live)
    79 In stock at Utah
US$‎85.45 US$‎89.95

Tycon Power Systems

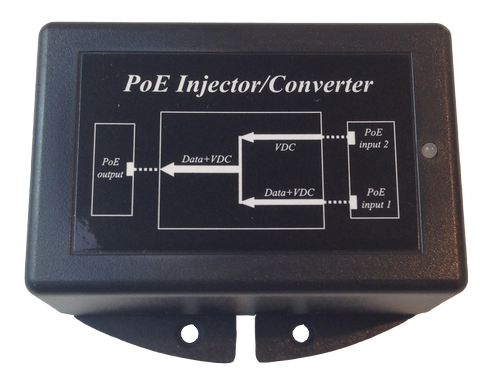

The POE-CONV-2AT-60 provide Gigabit PoE conversion, accepting two 802.3at inputs and providing a single 4 Pair 60W Passive PoE output which is compatible with High PoE devices like Ubiquiti airFiber

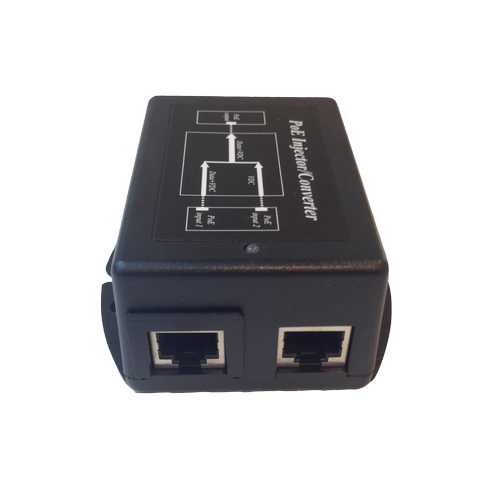

There are two RJ45 sockets for input and one RJ45 socket for the output. One input accepts Data and Power, the second input accepts only Power. The design is isolated so input and output are isolated. The devices include protections for short circuit and overload.

Specifications POE-CONV-2AT-60

InputQty 2 802.3at Mode A or 48V Passive PoE
Output60W Passive PoE, 4 Pair High PoE
Input ConnectorShielded RJ45 Socket x2
Output ConnectorShielded RJ45 Socket
Ethernet Speed10/100/1000MB, GigE, Gigabit
EMC StandardsFCC Class B NE55022 Class B
Isolation Voltage1500VDC
Isolation Resistance100M Ohms Minimum
Dimensions85 x 75 x 36 mm (3.3 x 3 x 1.4")
