Product Information

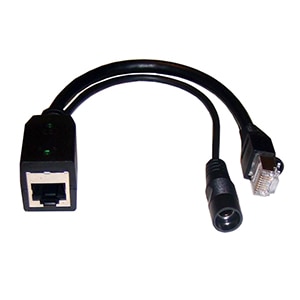

Tycon Power POE-INJ-LED-S

Passive Power over Ethernet Injectors

The unique POE-INJ-LED-S has power on and current indicator LED’s. The Power LED shows that DC power (12V to 24V) is being supplied to the inserter through the DC jack. The Current LED shows that a POE device is plugged in at the end of the CAT5 Ethernet cable up to 100m (330ft) away from the inserter.

Specifications

Specifications POE-INJ-LED-S

MaterialsUL rated materials, meets RoHS requirements
Voltage rating60VDC maximum
RJ45 jackShielded CAT5 rated, gold plated contacts
RJ45 power pins4,5 (+) 7,8 (-)
DC jack or plug5.5 x 2.1 mm, shrouded
DC wire size28AWG x 4
Cable length165 mm (6.5")
Total length254 mm (10")
Weight31 g (1.1 oz)
