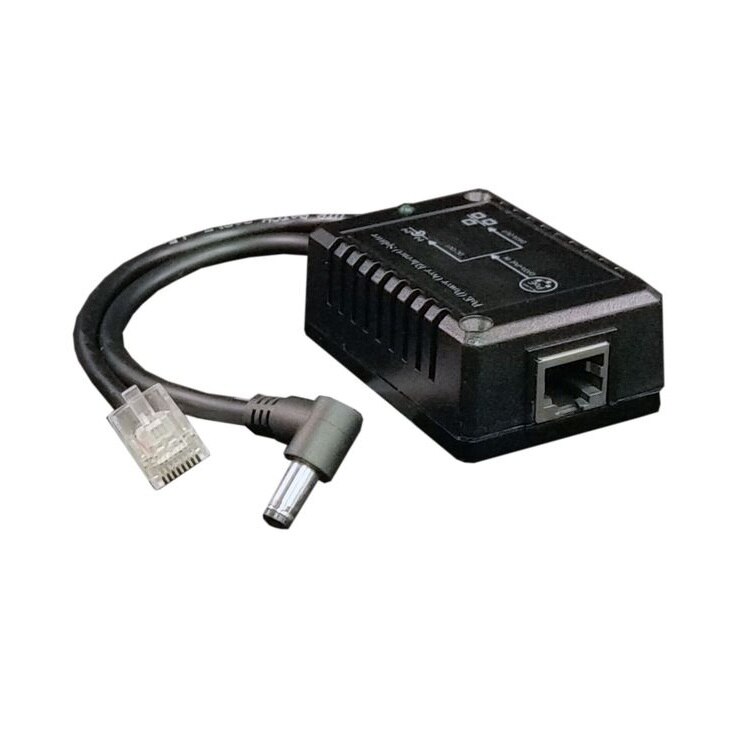

Tycon Power PoE splitter.48VDC 802.3af PoE input and output, 12VDC @ 1A output, 12W
- SKU: POE-MSPLT-4812P
$52.20 $54.95
Product Information
POE-MSPLT-4812P Tycon Power
PoE splitter.48VDC 802.3af PoE input and output, 12VDC @ 1A output, 12W, 5.5x2.1 connector
The POE-MSPLT-4812P is a unique splitter with dual outputs. It accepts 802.3af or 802.3at PoE and provides 48V PoE and 12VDC outputs concurrently so two separate devices can be powered. The 12VDC output is provided on a standard 5.5mm/2.5mm barrel connector and the Data/PoE output is provided on standard RJ45 network connector, each on a dedicated 6” cable. The DC connector is compatible with Tycon passive PoE injectors like POE-INJ-1000-S for ease of integration. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.
Features:
- Very Compact Size
- Dual Output: 48V PoE plus 12VDC Output
- Converts an Active PoE Input to a DC output
- Output Power Up To 15W
- Short Circuit, Over Current Protection
Specifications
Specifications POE-MSPLT-4812P
| Output Voltage | 48VDC Passive PoE 12VDC on 5.5/2.5mm DC Connector |
| Output Current | 0.4A 1A |
| Total Max Output Power | 15W |
| DC Output Connector | 5.5mm / 2.1-2.5mm Barrel Connector |
| Data Output Connector | RJ45 Plug, (-F version RJ45 Shielded Socket) |
| Output Cable Length | 153mm (6”) |
| Load Regulation & Noise | 5% |
| Line Regulation & Ripple | 1% |
| PoE Input (RJ45) | IEEE 802.3af/at or Passive PoE (36 – 60VDC) |
| Ethernet Speed | 10/100MB |
| Efficiency | 75% Min |
| EMC Standards | FCC Class B NE55022 Class B |
| Isolation Voltage | 1500VDC |
| Isolation Resistance | 100M Ohms Minimum |
| Operating Temperature | -40 to +50°C (-40 to +122°F) |
| Operating Humidity | 5% - 90% non-condensing |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| Dimensions (LxWxH) | 65 x 45 x 26mm (2.6 x 1.8 x 1”) |
| Weight | 62g (2.2oz) |
| Warranty | 3 Years |
