Tycon Power POE Splitter - 48VDC, 802.3af PoE input, 24V DC @ 0.5A Output, 24W 5.5x2.1 Connector
- SKU: POE-MSPLT-4824
$36.05 $37.95
Product Information
Tycon Power POE-MSPLT-4824
Tycon Power PoE Splitter/Converter, 48V Passive or 802.3at Input, 24VDC and Data Output, 12W

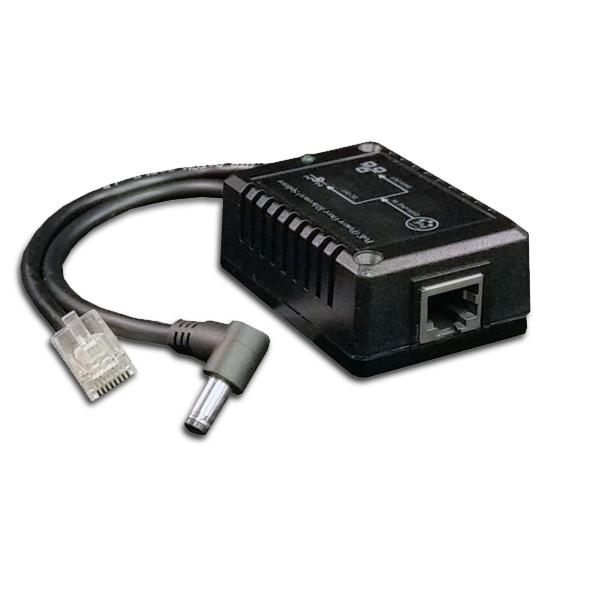

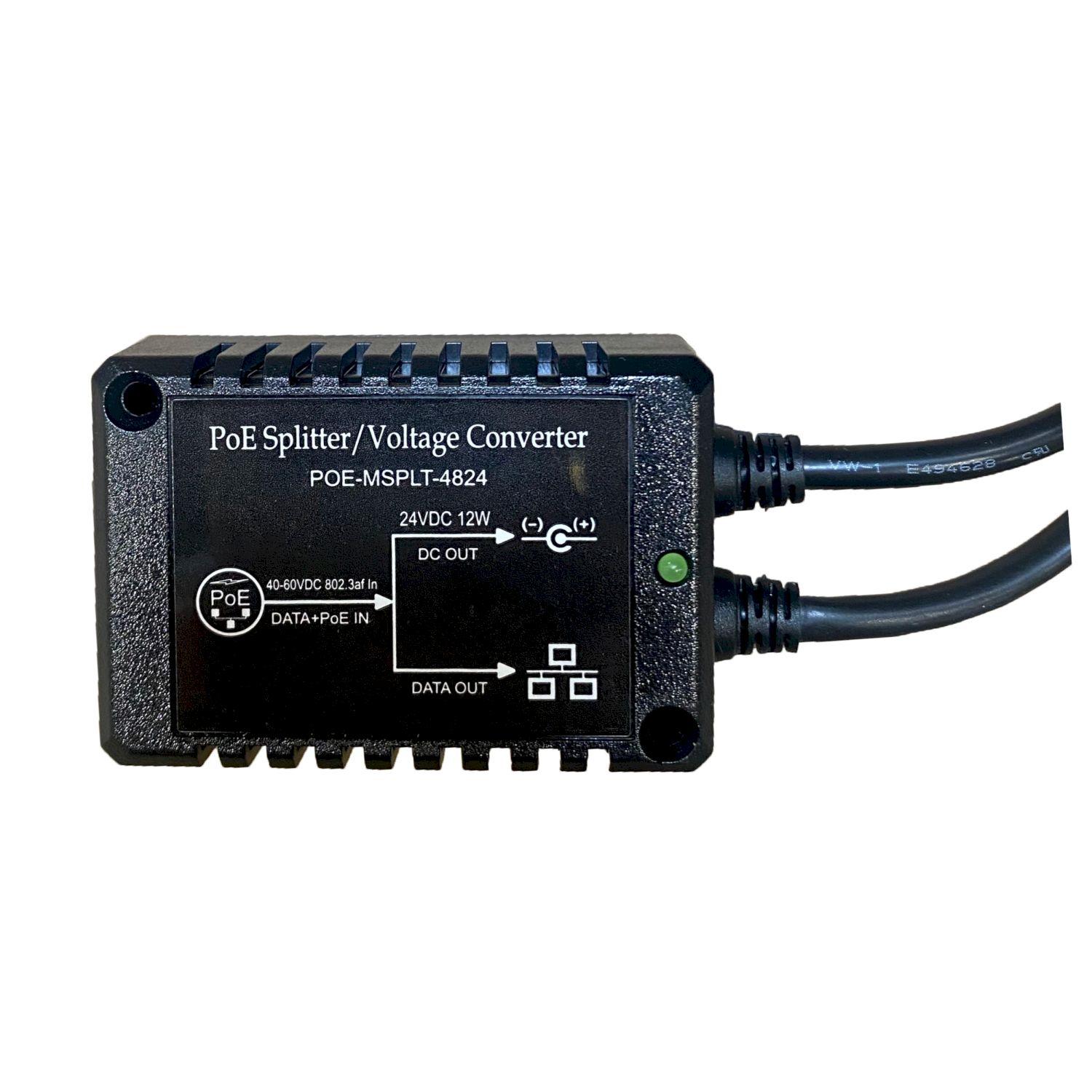

The POE-MSPLT line of dynamic splitters are compact Power over Ethernet adapters which splits the Data and PoE power onto separate output connectors and converts the active PoE (IEEE802.3af/at) input into a regulated DC output voltage. The DC output is provided on a standard 5.5mm/2.1mm barrel connector and the Data output is provided on standard RJ45 network connector, each on a dedicated 6” cable. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.
The unique POE-MSPLT-USB provides a USB output to power smartphones and tablets from PoE devices like network switches or PoE injectors.
Features:
- PoE Splitters
- Output Voltages and USB Available
- Output Power Up To 15W
- Short Circuit, Over Current Protection
Specifications
Specifications POE-MSPLT-4824
| Output Voltage | 24VDC |
| Output Current | 0.5A |
| Output Power | 12W |
| DC Output Connector | 5.5mm / 2.5mm Barrel Connector – Compatible with 2.1mm also |
| Data Output Connector | RJ45 |
| Output Cable Length | 153mm (6”) |
| Load Reg & Noise | 0.05 |
| Line Reg & Ripple | 0.01 |
| PoE Input (RJ45) | IEEE 802.3af/at or Passive PoE (36 – 60VDC) |
| Ethernet Speed | 10/100MB |
| Efficiency | 75% Min |
| EMC Standards | FCC Class B NE55022 Class B |
| MTBF | 183,911 Hrs |
| Isolation Voltage | 1500VDC |
| Isolation Resistance | 100M Ohms Minimum |
| Operating Temperature | -25 to +50°C (-13 to +122°F) |
| Operating Humidity | 5% - 90% non-condensing |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| Dimensions (LxWxH) | 65 x 45 x 26mm (2.6 x 1.8 x 1”) |
| Weight | 62g (2.2oz) |
