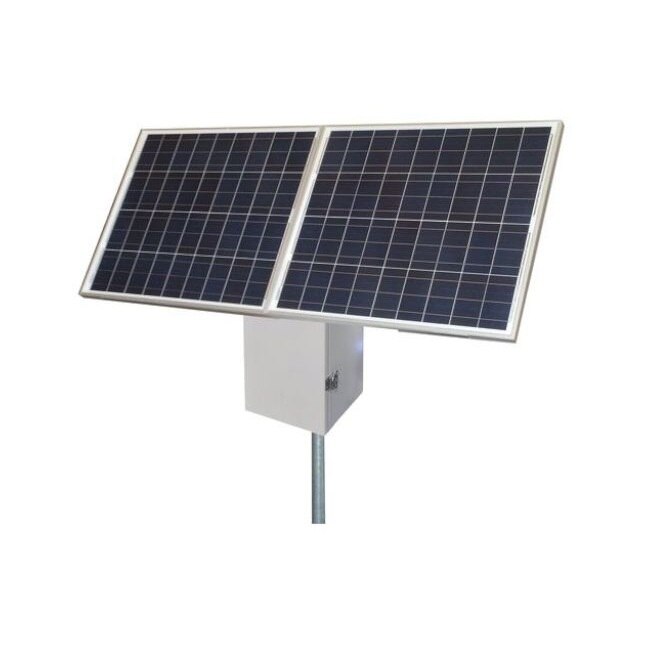

Tycon Power RemotePro 24V 40W Large Aluminum Enclosure 24V 208Ah Battery 170W Solar Panel
- SKU: RPL2424-200-170
Product Information
Tycon Power RPL2424-200-170
RemotePro 24V 40W Large Aluminum Enclosure 24V 208Ah Battery 170W Solar Panel 24V 30W PoE 24V 1.5A Aux Continuous Remote Solar Power System

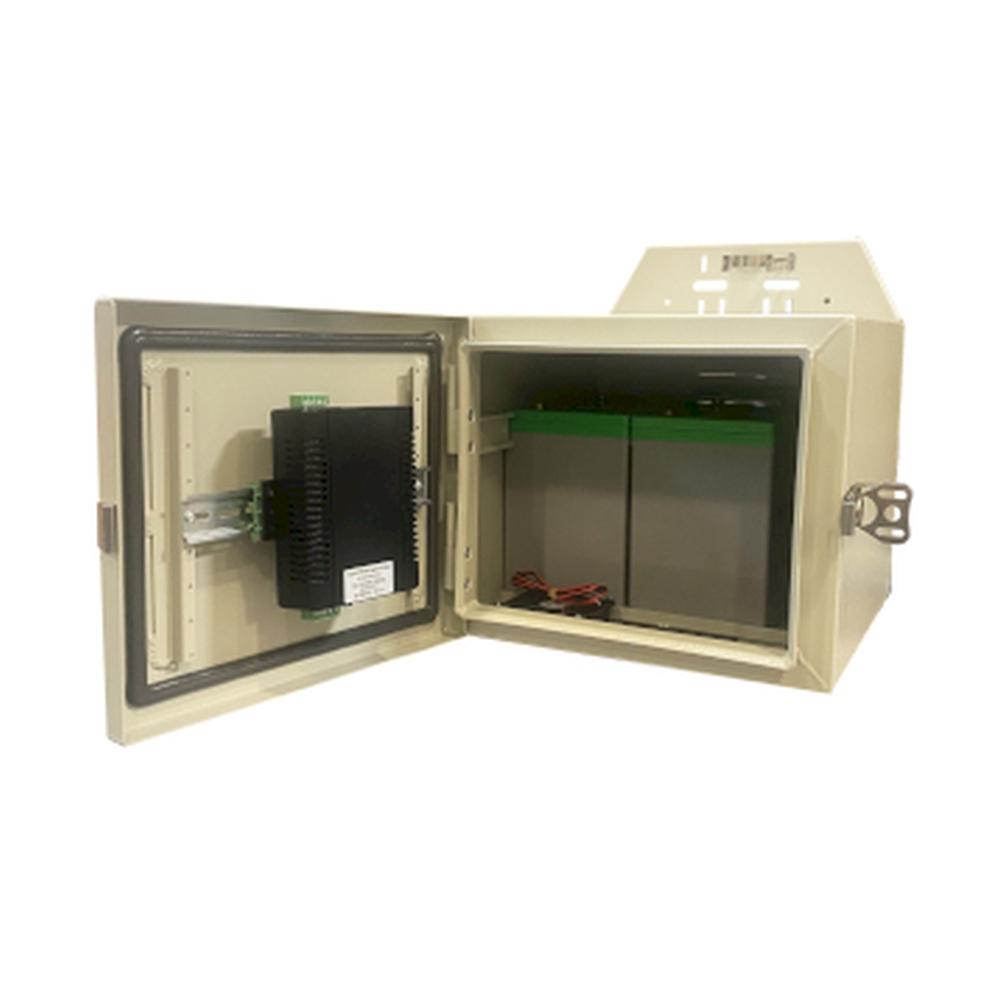

The RemotePro 170W RPL2424-200-170 outdoor power system is designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosure has generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.

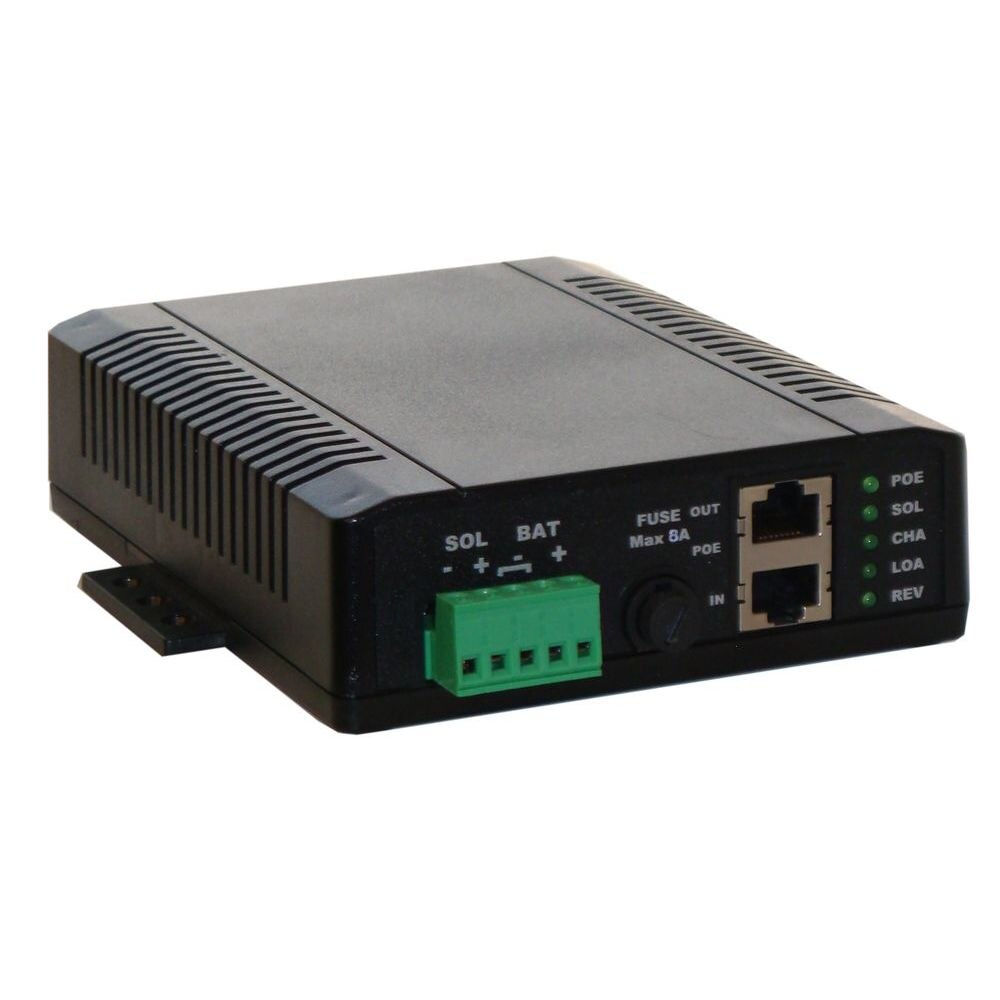

The system is available with a PWM temperature compensated solar charge controller. The solar controller turns off the load automatically if the battery voltage drops too low, in order to preserve battery life. The load turns on automatically once the battery voltage recovers.
The outdoor enclosure is aluminum. It is hinged and gasket sealed with a locking closure that accepts a common padlock for security. It has four cable gland ports for CAT5/6 cable, antenna cables/connectors and other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.

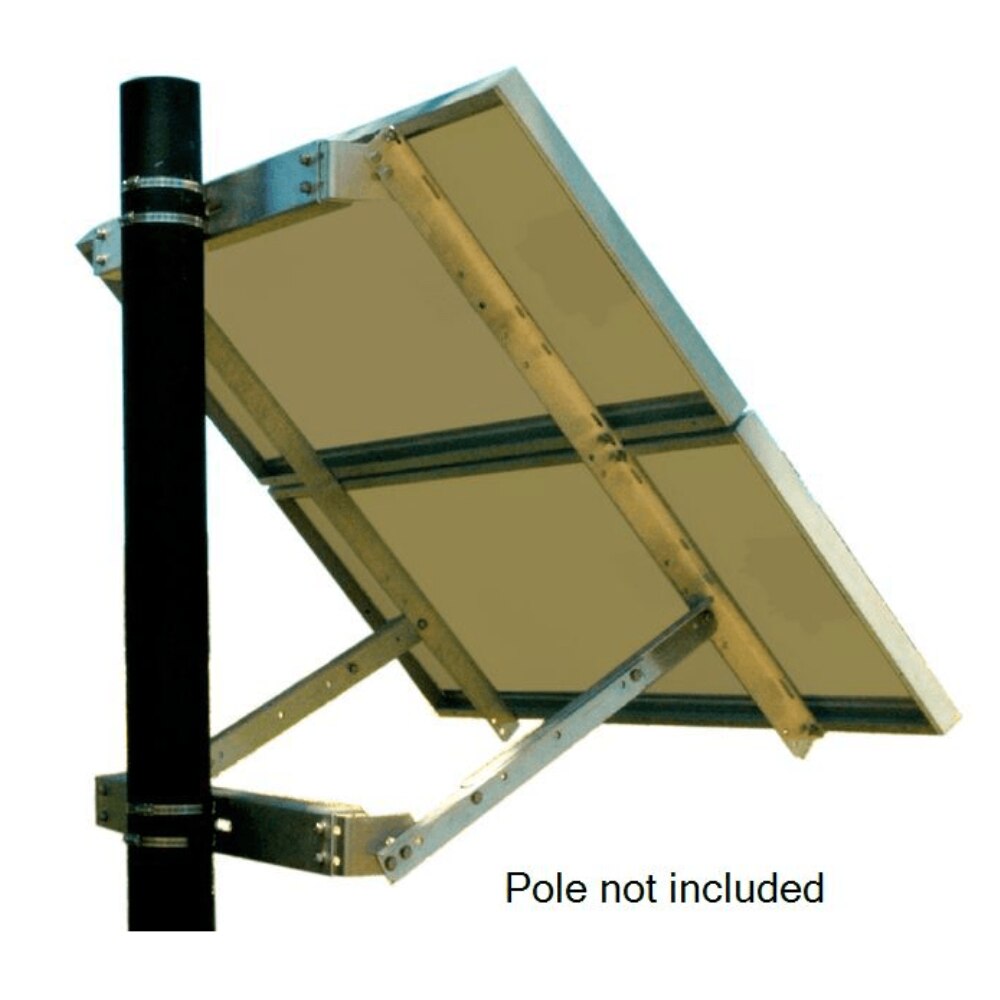

The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting system.

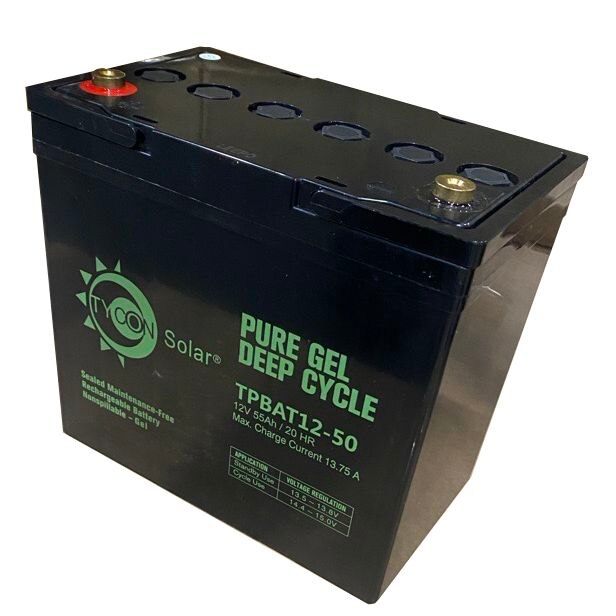

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.
The system comes with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
Features:
- 30W PoE 24V and 1.5A Auxiliary
- Complete 170W Remote Power Solution for Off-Grid Operation
- Weatherproof Outdoor Enclosures with up to 400Ah Battery
- Enclosures can be Wall or Pole Mounted (pole not included)
- High Performance Sealed Lead Acid AGM Batteries
- MPPT and PWM Solar Charge Controllers, some with PoE output
- Thermostatically Controlled Ventilation
Applications:
- Wireless Base Stations
- Remote Lighting
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Off-Grid Power
- Backup Power
Specifications
Specifications RPL2424-200-170
| Controller Specific | |
| Controller Type | PWM with LCD Display |
| Controller Outputs | 20A Wire Terminal |
| Bulk Charge | 14.4V @ 12V Battery 28.8V @ 24V Battery |
| Float Charge | 13.8V @ 12V Battery 27.6V @ 24V Battery |
| Over-discharge protection | 11.1V @ 12V Battery 22.2V @ 24V Battery |
| Over-discharge recovery volts | 12.6V @ 12V Battery 25.2V @ 24V Battery |
| Controller Self Consumption | <0.3W |
| Enclosure Specific | |
| Battery Type | Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM |
| Battery Life | 5+ Years |
| Enclosure Type | ENC-AL-21x14x15 Pole/Wall Mount, Powder Coat Aluminum |
| Enclosure Size | 21 x 14 x 15" (537 x 356 x 381mm) |
| Internal Mount Features | DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back |
| Solar Panel Dims (L x W x H) | 170W Solar Array 62” x 27” x 1.4” (1575 x 678 x 35mm) |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (no batteries) | 48 lb (22 kg) |
| Battery Weight | 40.3 lb (18.3 kg) (Each 50Ah Battery) |
| Wind Speed Rating | 90MPH |
| Warranty | 3 Years |
