Tycon Power RemotePro 35W, 20Ah Lithium Battery, 7.5W Sol, 12V PWM

Tycon Power RPPL12-20L-35

RemotePro 7.5W Cont Remote Pwr Sys, 35W Solar, 12V 20Ah 240Wh LFP Lithium Batt,12V 20A PWM Solar Charge Ctrl w/ Status Display/Load Ctrl, Pole/Wall Mt Outdoor Polycarbonate Encl and Side of Pole Solar Mount

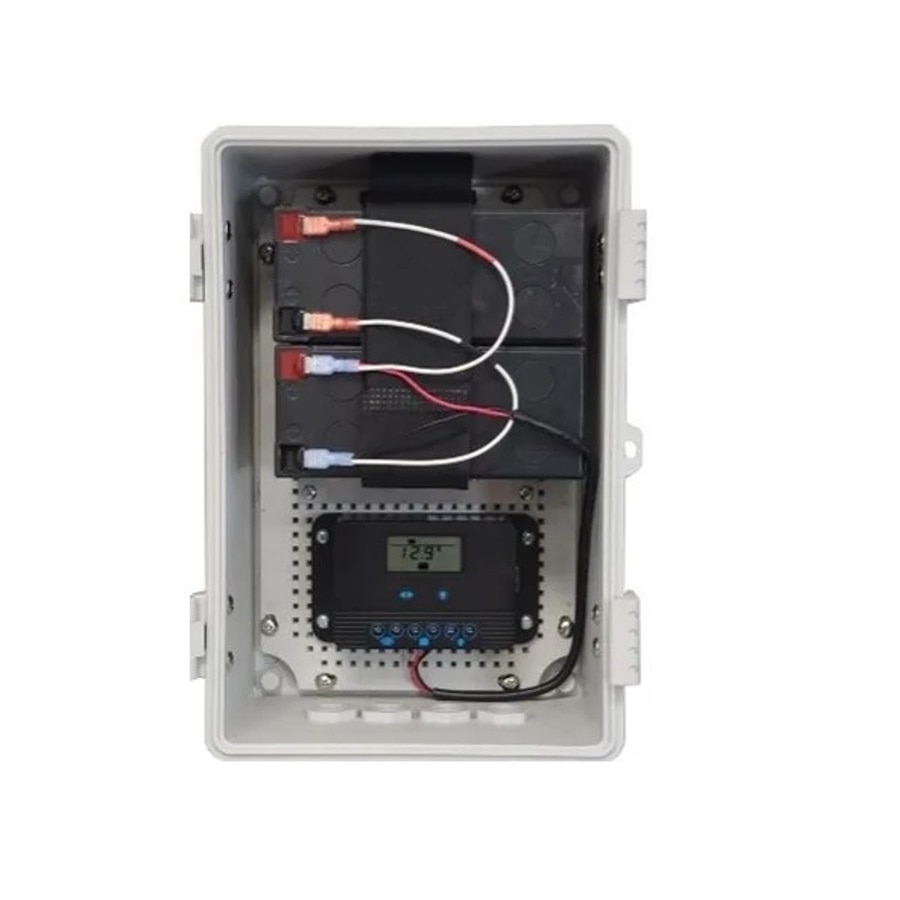

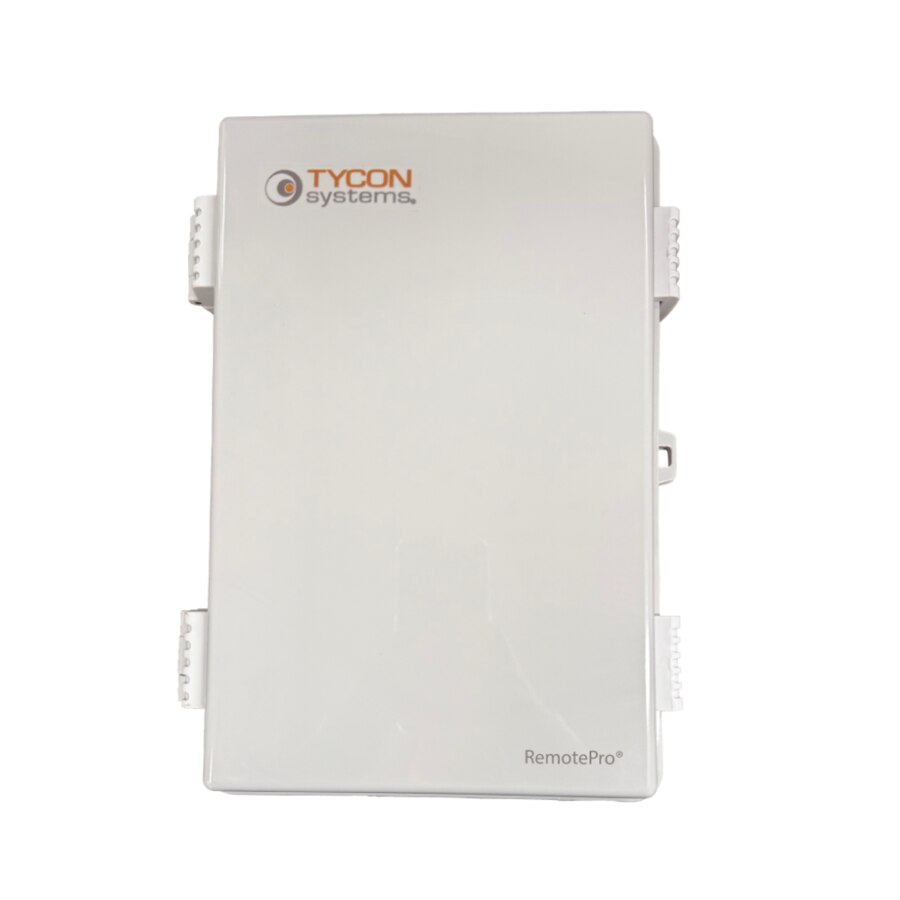

The RemotePro® PL-SM-L Series (RPPL) outdoor power systems from Tycon Power® are meticulously designed for applications that require a primary off-grid or backup power source to run various electronics. These robust systems feature sealed and weatherproof 11x7x6” polycarbonate enclosures capable of holding up to two 12V 10AH batteries. The hinged and gasket-sealed design ensures that internal components remain safe and dry by keeping moisture out. Moreover, these enclosures accept a padlock or tamper seal, providing peace of mind in remote or unattended locations.

Versatile Mounting Options

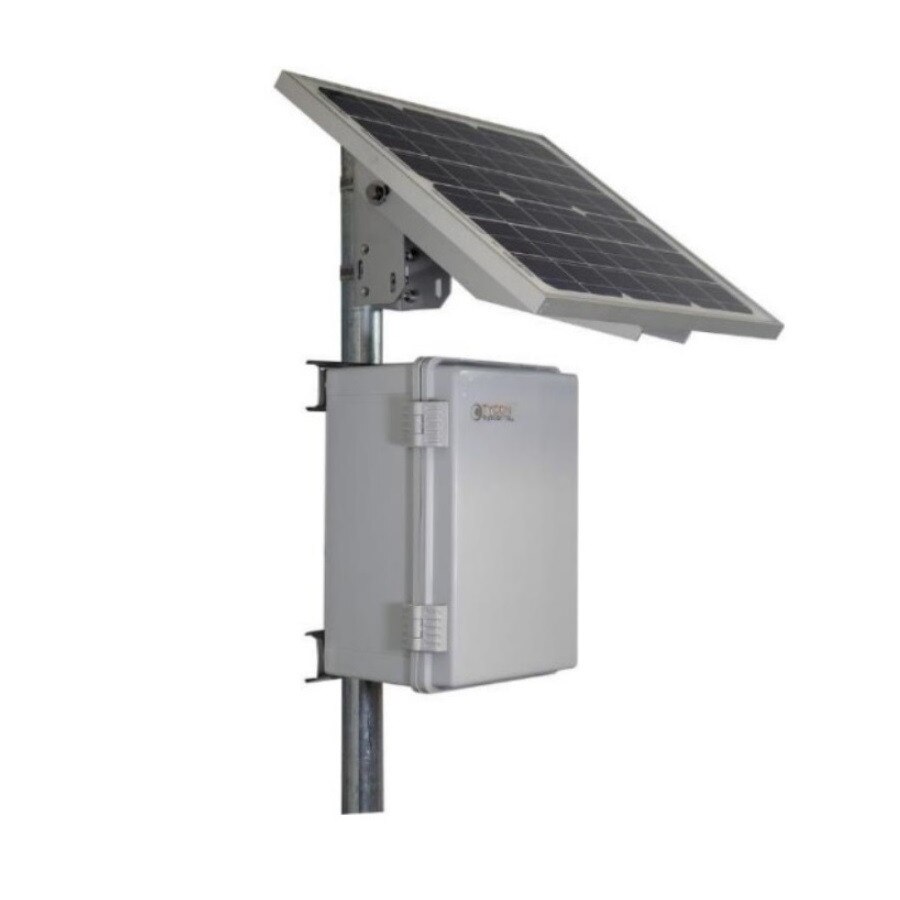

Flexible Installation Options: To ensure flexible installation, the enclosures include a mounting bracket system for easy attachment to walls or poles. High-quality solar panels, backed by a 25-year power output guarantee, further enhance system reliability. The solar panels can be mounted to poles with diameters ranging from 51mm to 101mm (2″ to 4″) or alternatively to a wall using the included bracket kit. This setup ensures optimal sunlight exposure, maximizing the efficiency of the solar panels and providing reliable energy.

Advanced Battery Protection

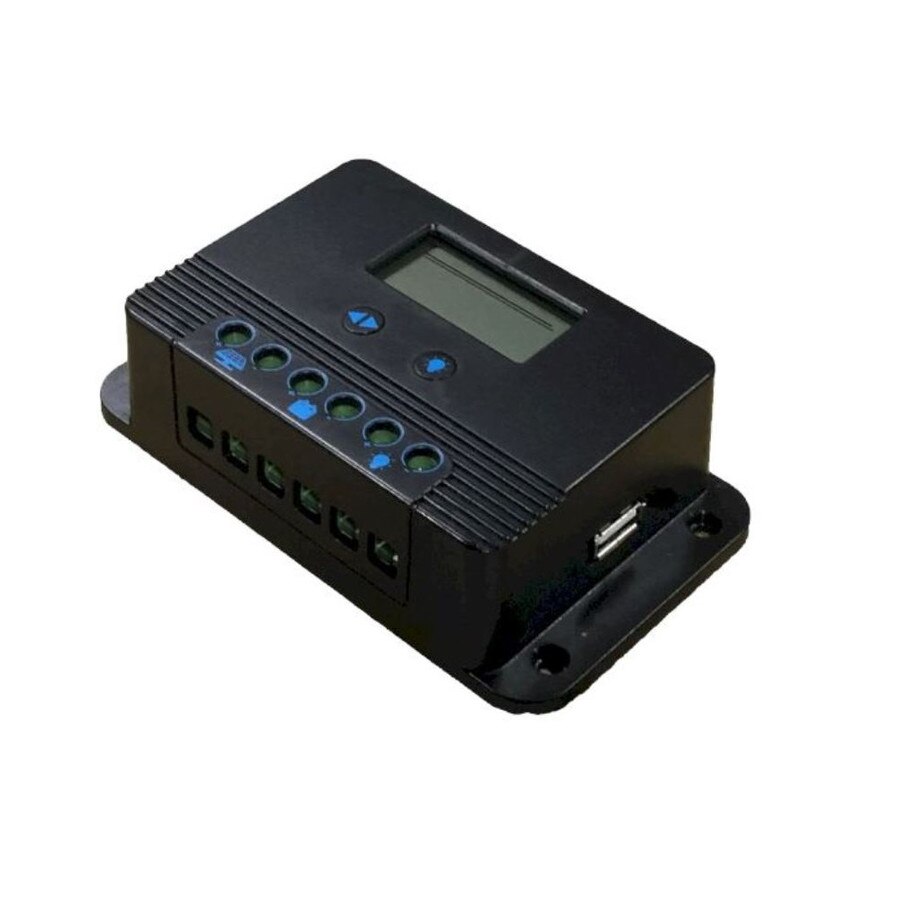

Battery Charge Controllers with LVD Load Control: The systems include advanced battery charge controllers with LVD load control to prevent overcharging or over-discharging of the batteries. Some of the RPPL-SM-L systems feature a controller with a built-in PoE inserter and DC-DC converter, supplying 24V or 48V PoE from the 12V or 24V battery system. Other models use a 20A PWM controller with a parametric LCD display for easy monitoring and control. These controllers significantly extend battery life and ensure reliable performance over time.

Flexible and Safe Operation

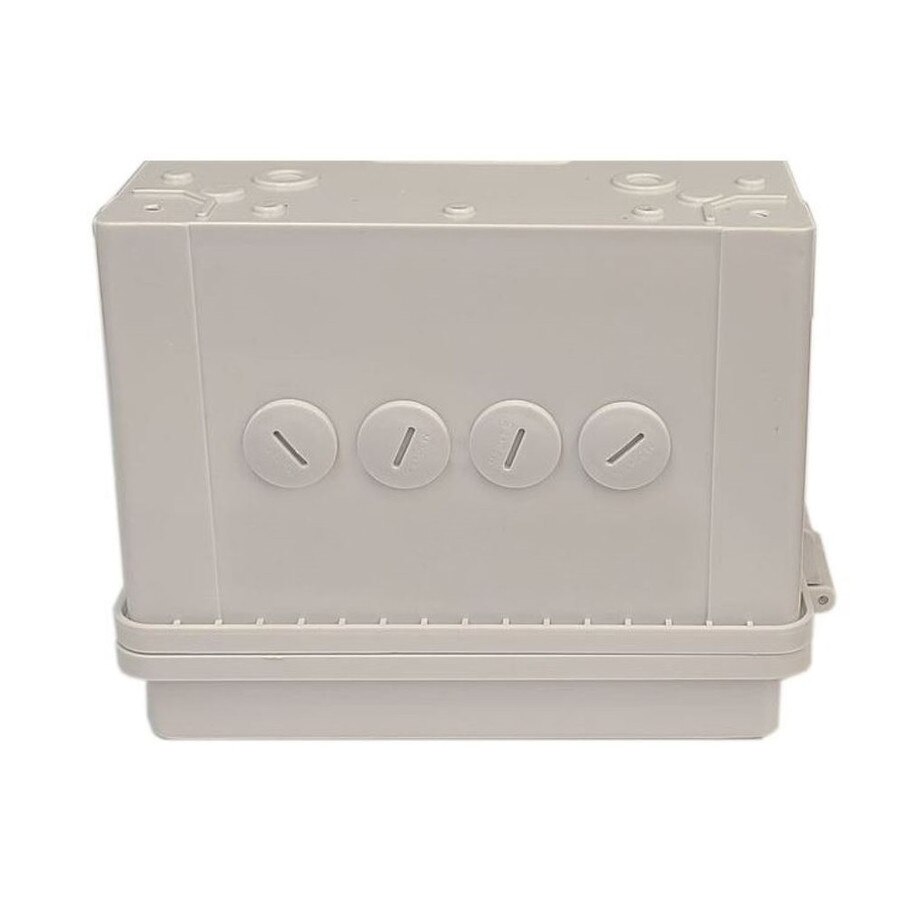

Multiple Ports for Various Cabling Needs: The enclosures feature multiple ports for CAT5/6 cables, antenna cables/connectors, or other cabling. This design ensures flexibility for various wiring needs and allows the systems to accommodate different setups and configurations.

Reliable Battery Performance

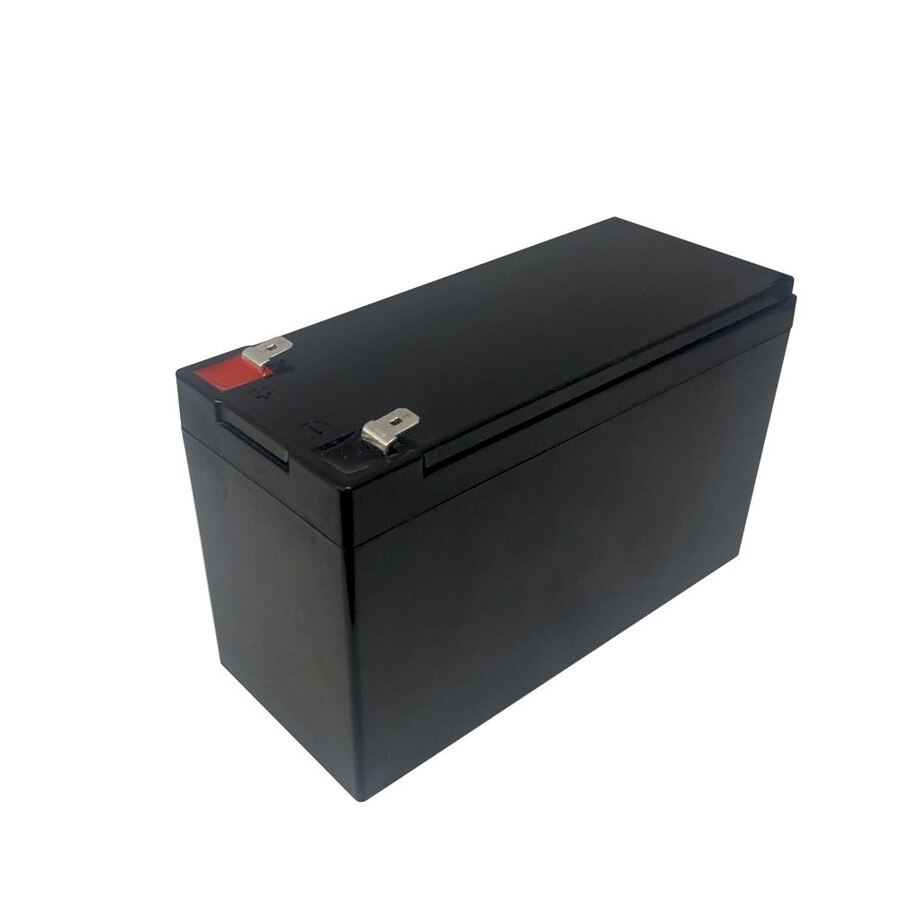

LFP (LiFePO4) Lithium Batteries: The RPPL-SM-L systems use LFP (LiFePO4) Lithium batteries, which offer superb 80% deep discharge and 4000+ cycle life performance. The batteries have an embedded BMS (Battery Management System) that enables a 10+ year battery life, providing a dependable power source for various applications.

Vented for Safety

Prevention of Hydrogen Gas Build-Up: The enclosures are vented to prevent the residual buildup of hydrogen gas, ensuring safe operation. This safety feature is crucial for maintaining a secure and reliable power system, providing peace of mind for users.

Features:

• Complete Remote Power Solution for Off-Grid operation
• 4000+ Cycle Life @ 80% discharge LiFePO4 Lithium Batteries
• Weatherproof, UV resistant, outdoor enclosures
• Enclosures can be Wall or Pole Mounted
• Advanced battery charge controller and Embedded BMS for extended battery life

Applications:

• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Remote Lighting
• Backup Power Systems
