Tycon Power RemotePro 7.5W Continuous Remote Power System, 35W Solar Panel w/ Mount
- SKU: RPPL12-36-35-PUMP
Product Information
Tycon Power RPPL12-36-35-PUMP
Tycon Power RemotePro 7.5W Continuous Remote Power System, 35W Solar Panel w/ Mount, 36Ah Battery Bank, 12V 20A PWM Solar Controller, Poly Enc, 12V 40A Relay for Pump Use Included

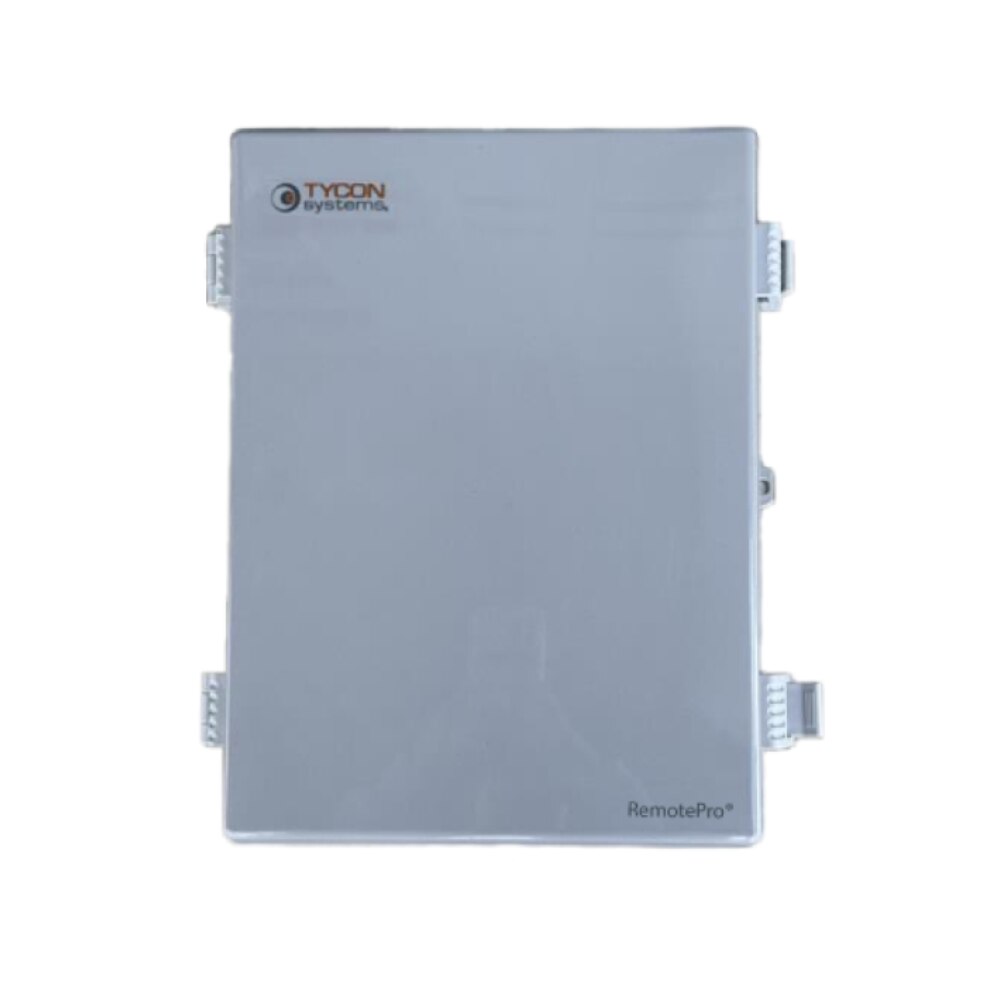

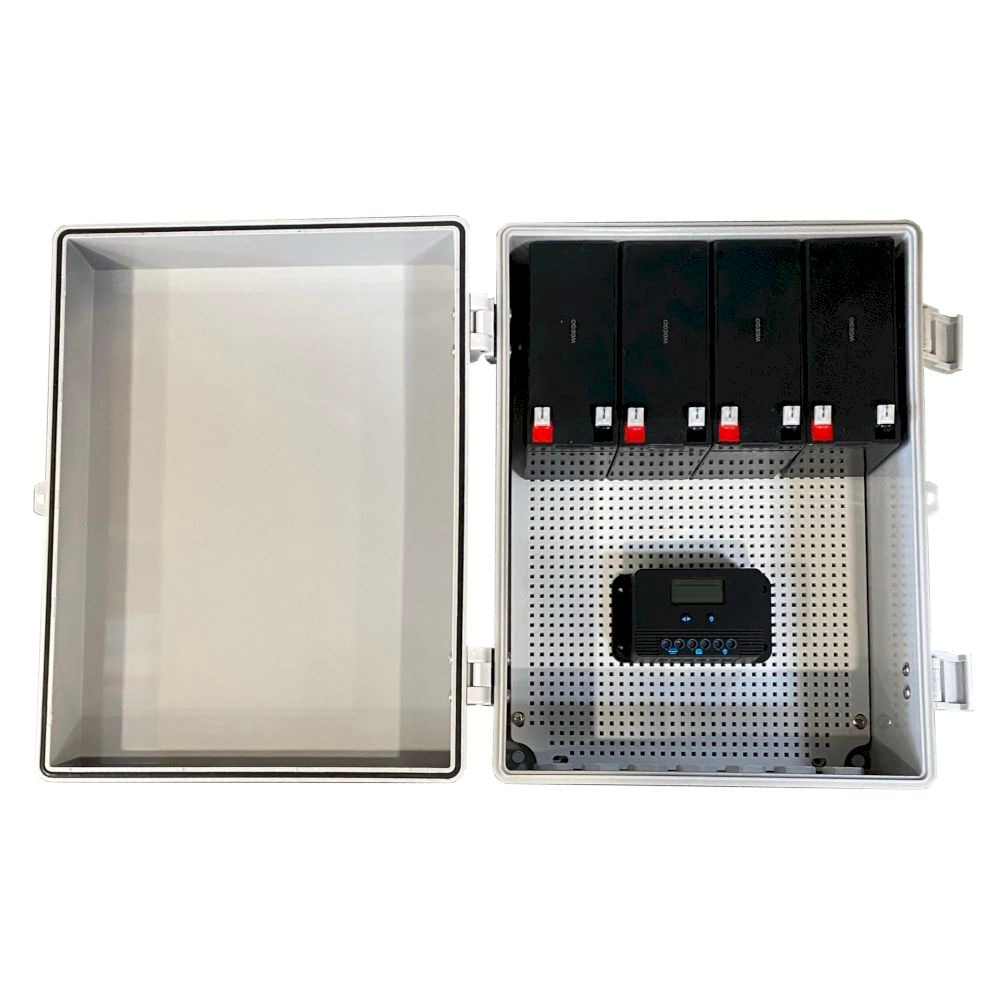

The RemotePro® RPPL12-36-35-PUMP outdoor remote Off-Grid power systems are specifically designed for applications that require a high current (up to 40A) intermittent power source such as pump and motorized equipment. The sealed and weatherproof Polycarbonate enclosures holds four batteries for a total of 12V 36Ah capacity. The enclosures are hinged and gasket sealed. They include a small combination lock.
The enclosures can be mounted to a wall or pole with the included mounting bracket system.

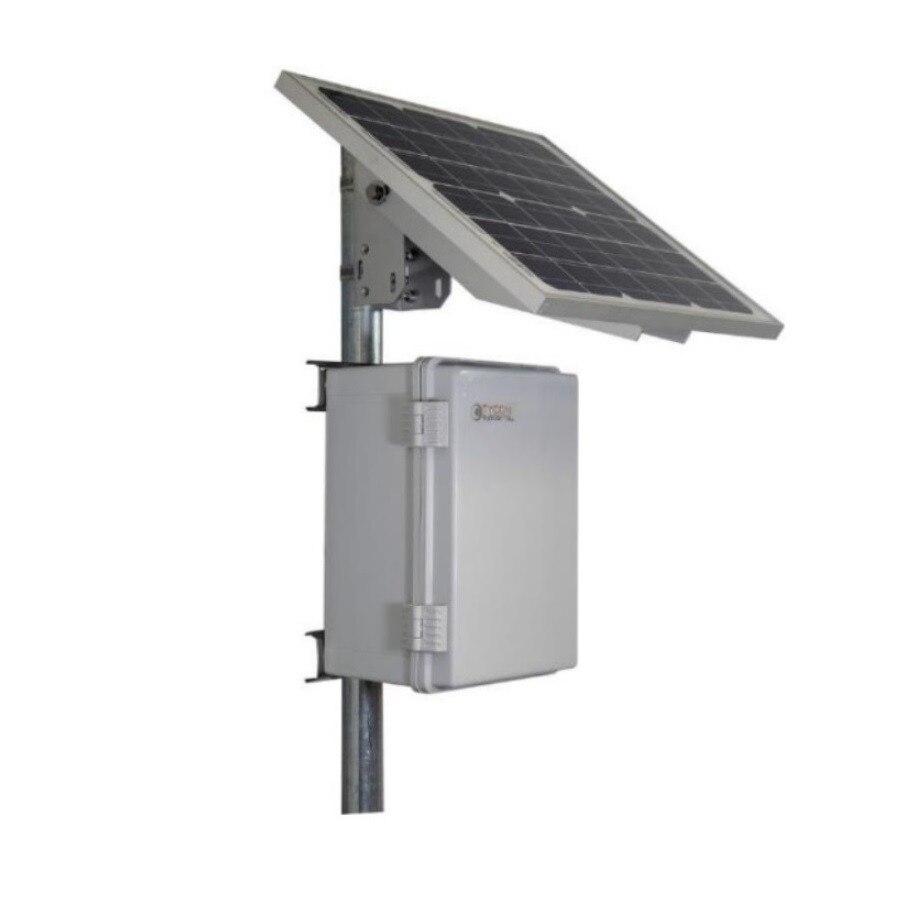

The high quality solar panels have a 25year power output guarantee. The 35W solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit.

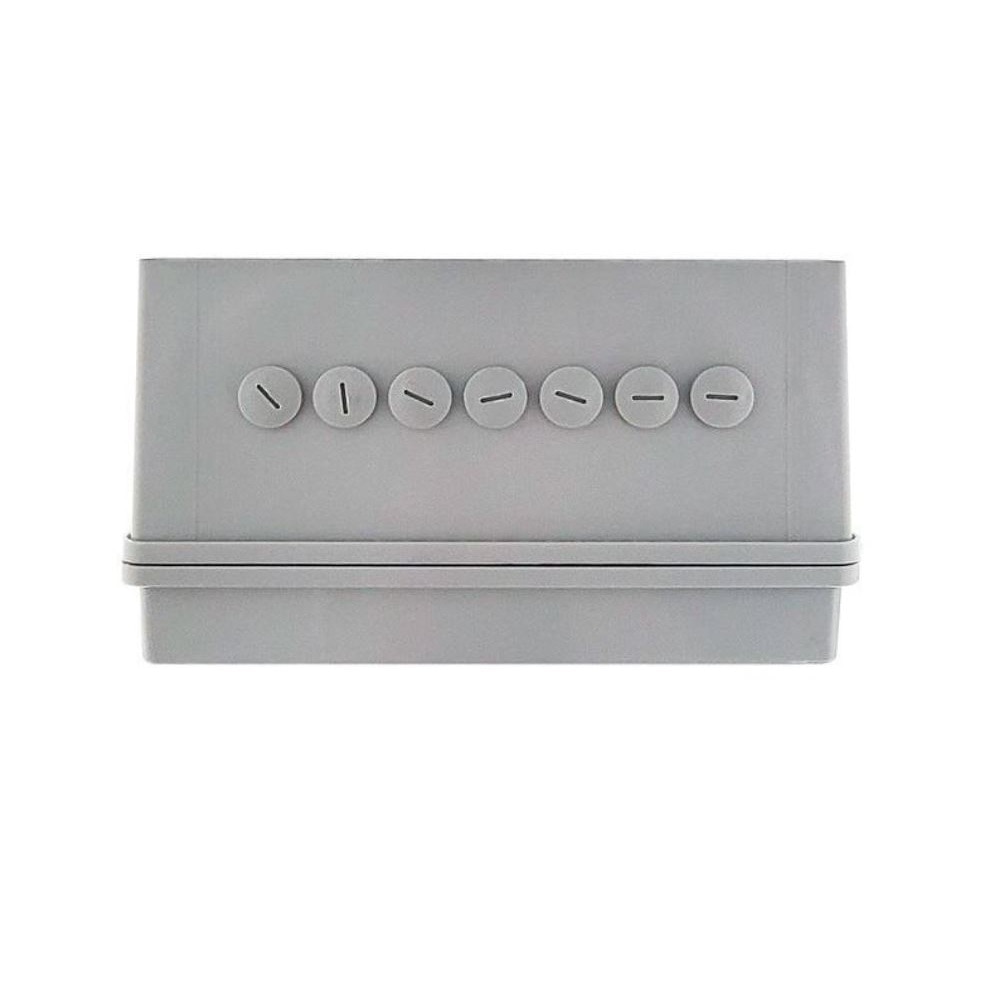

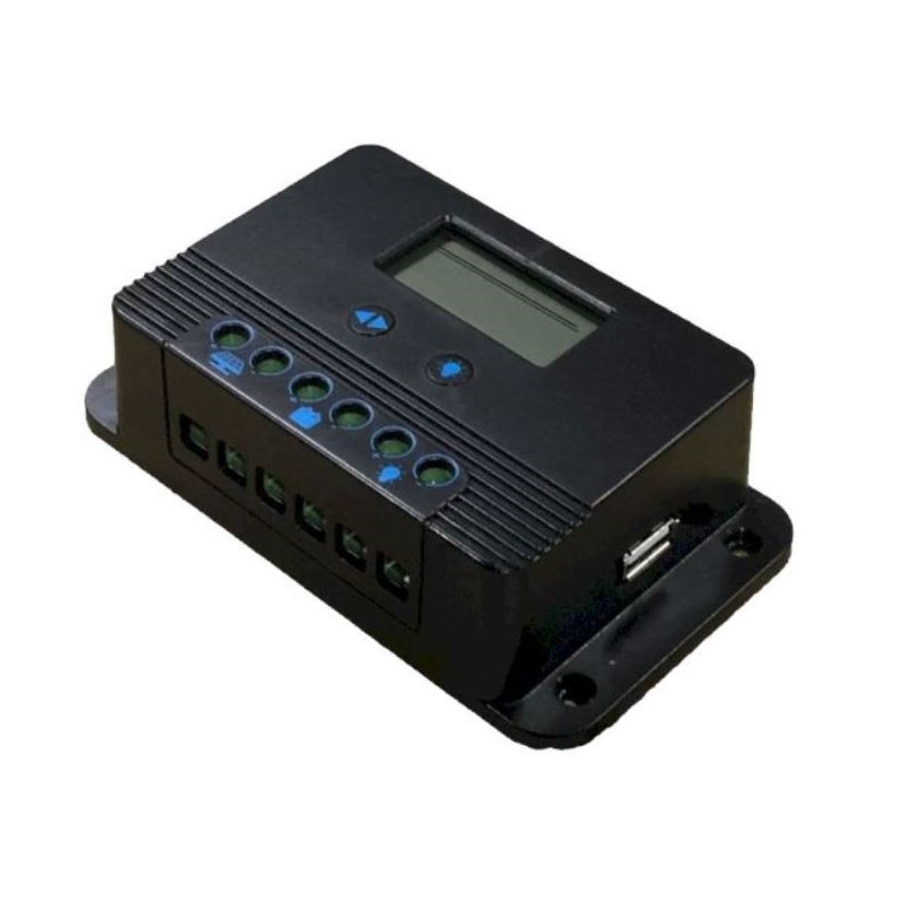

Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Enclosures have multiple ports for cables.

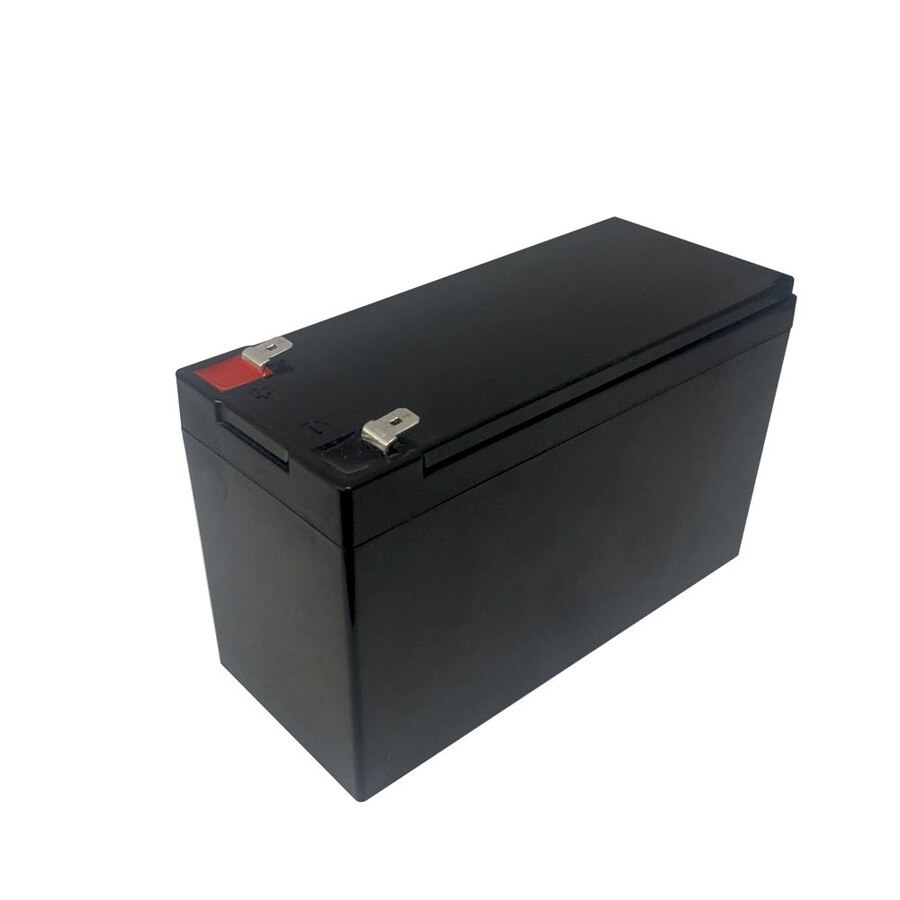

Batteries are an Advance Glass Matt (AGM) type which have good all temperature deep discharge performance.
Features:
- Capable of switching 40A with included relay to operate high startup current equipment like pumps and motors
- Complete Remote Power Solution for Off-Grid operation
- Weatherproof, UV resistant, outdoor enclosures
- Enclosures can be Wall or Pole Mounted
- High Performance Valve Regulated Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications:
- Fuel Pumps
- Water Pumps
- Remote Lighting
- Motors
- Motorized Gates
- Backup Power Systems
Specifications
Specifications RPPL12-36-35-PUMP
| Rated Continuous Power Generation | 7.5W |
| Reserve Time @ Rated Power | 28hrs |
| Output Voltage (DC) | 12V 40A via Relay |
| Battery Voltage (DC) | 12V |
| Battery Capacity (Amp Hrs) | 36Ah |
| Battery Type | Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
| Battery Life | 5 Years Typical |
| Controller Type | PWM 12/24V 20A |
| Overcharge Protection | 14.4V |
| Over-discharge protection | 11.0V |
| Over-discharge recovery volts | 12.5V |
| Controller Self Consumption | < 0.5W |
| Enclosure Type | UV Resistant Polycarbonate |
| Enclosure External Size | 15.7 x 12.7 x 6.7" (400 x 323 x 170mm) |
| Enclosure Internal Size | 15 x 11 x 6.5" (381 x 279 x 165mm) |
| Solar Panel Dims | 21.5” X 19.3” (545 x 490mm) |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (no batteries) | 22lb (10kg) |
| Battery Weight | 22lb (10kg) |
| Wind Speed Rating | 110MPH (49m/s) |
| Warranty | 3 Years |
