Tycon Power RemotePro 12V 8W Polycarbonate Enclosure 12V 36Ah Battery 35W Solar Panel 48V 30W PoE

US$‎512.95 US$‎539.95
  • SKU: RPPL1248-36-35
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 210 In Stock    (updated live)
    210 In stock at Utah
US$‎512.95 US$‎539.95

Tycon Power RPPL1248-36-35

RemotePro 12V 8W Polycarbonate Enclosure 12V 36Ah Battery 35W Solar Panel 48V 30W PoE Continuous Solar Power System

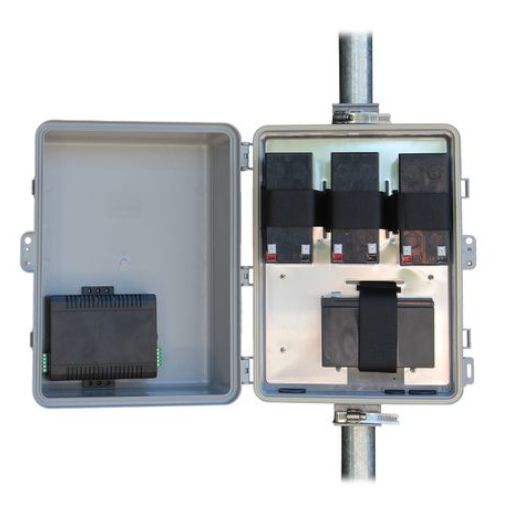

The Tycon Solar RemotePro PL (RPPL) RPPL1248-36-35 outdoor power system is designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof Polycarbonate enclosure holds up to four 12V 8.5AH batteries. The enclosure is hinged and gasket sealed. They can accept a padlock to protect your equipment.

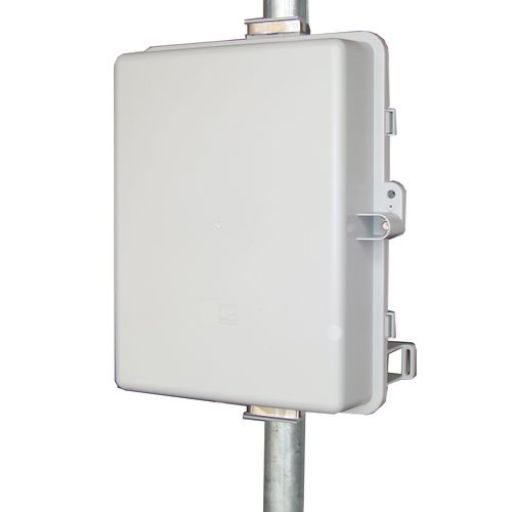

The enclosures can be mounted to a wall or pole with the included mounting bracket system.

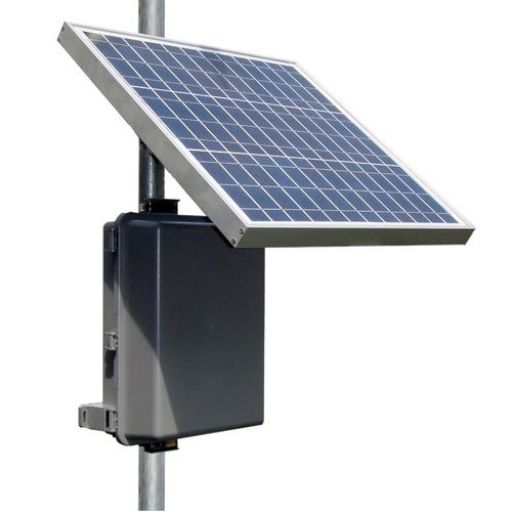

The high quality solar panels have a 25 year power output guarantee. The 30W solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit.

Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Most of the RPPL systems include a controller with built in POE inserter and DCDC converter to supply 48V POE from the 12V battery system. Enclosures have multiple ports for CAT5/6 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

Batteries are an Advance Glass Matt (AGM) type which have good all temperature performance.


Features:

  • Complete Remote Power Solution for Off-Grid operation
  • Weatherproof, UV resistant, outdoor enclosures
  • Enclosures can be Wall or Pole Mounted
  • High Performance Valve Regulated Sealed Lead Acid Batteries
  • Advanced battery charge controller protects against overcharge and over discharge

Applications:

  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Remote Lighting
  • Backup Power Systems

Specifications RPPL1248-36-35

Rated Power Generation8W
Reserve Time @ Rated Power27hrs
PoE Output Voltage24V1.2A/ 48V.62A
Secondary Volts Out (DC)12V 1.5A
Battery Capacity (Amp Hours)36Ah
Battery Voltage (DC)12V
Battery TypeValve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
Battery Life5 Years
Controller TypeDual Input: Solar/POE, Dual Output: Battery Voltage/POE with DCDC Converter
Overcharge Protection14.4V
Over-Discharge Protection11.0V
Over-Discharge Recovery Volts12.5V
Controller Self Consumption<0.5W
Enclosure TypePolycarbonate
Enclosure External Size17.5 x 12.5 x 6" (445 x 318 x 152mm)
Enclosure Internal Size14 x 10 x 5" (356 x 254 x 127mm)
Solar Panel Dimensions26 x 16" (654 x 401mm)
Operating Temperature-30 to 60°C (-22 to 140°F)
System Weight(no batteries) 22lbs (10kg)
Battery Weight22lbs (10kg)
Wind Speed Rating110mph (49m/s)
Warranty3 Years
