Tycon Power 320W Solar, 12V or 24V 200Ah Batt, 20A MPPT Controller Remote Power Solar System
- SKU: RPSTL12/24M-200-320
Product Information
Tycon Power RPSTL12/24M-200-320
320W Solar, 12V or 24V 200Ah Batt, 20A MPPT Controller Remote Power Solar System

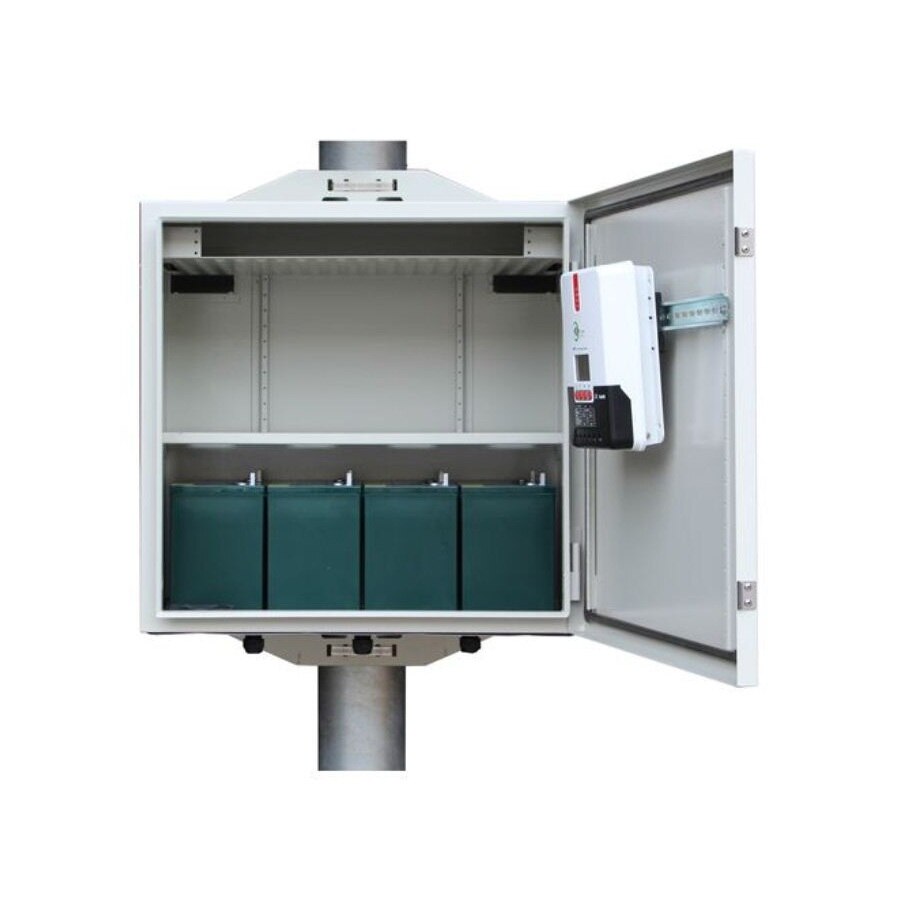

The RPST12/24M RemotePro® MPPT series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.

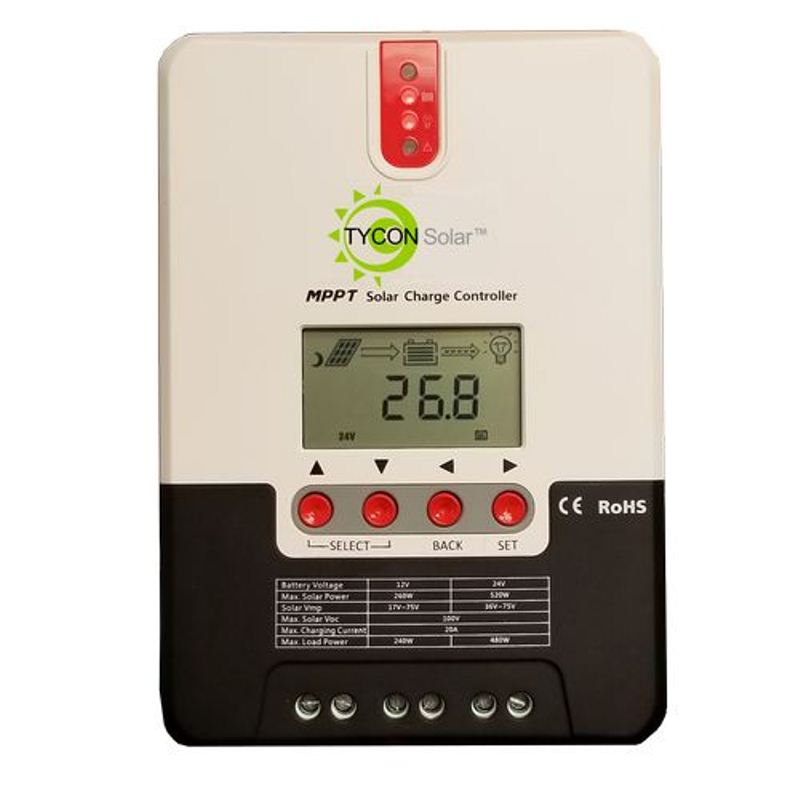

The systems can be configured as 12VDC or 24VDC for greater compatibility. The manageable MPPT solar controller improves system efficiency by about 15% meaning that more solar energy reaches the batteries. It supports up to 20A load control.
All enclosures are hinged and gasket sealed with tamper resistant locks for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 40°C.

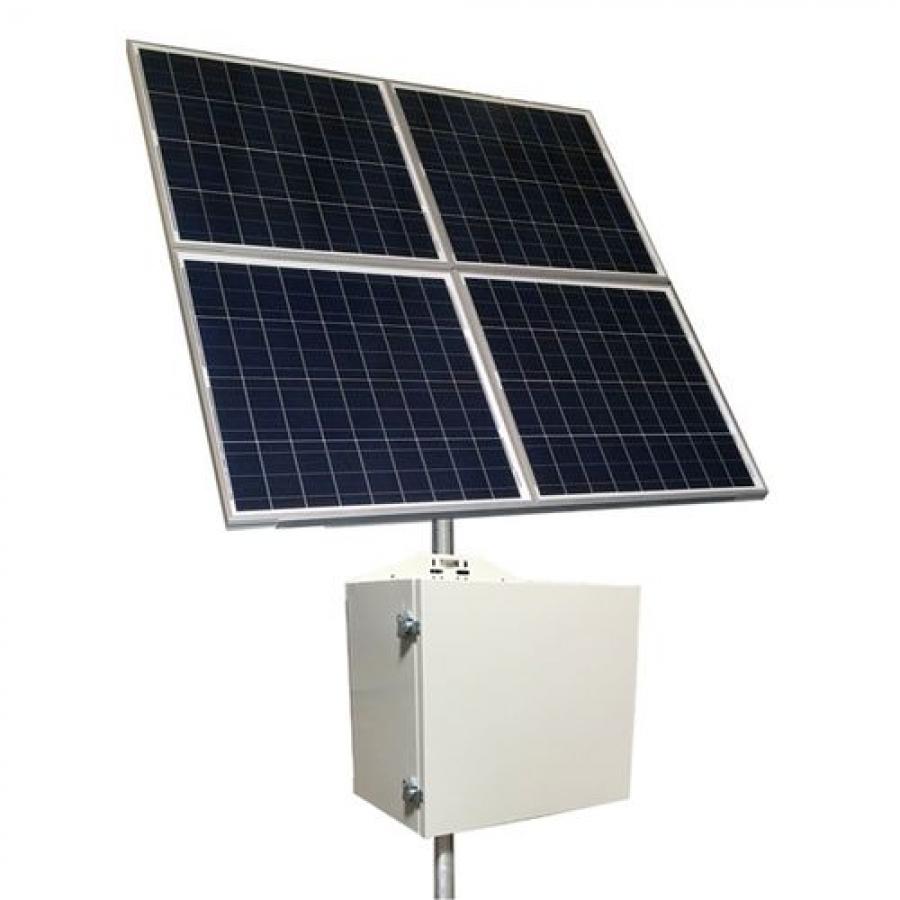

The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting systems.

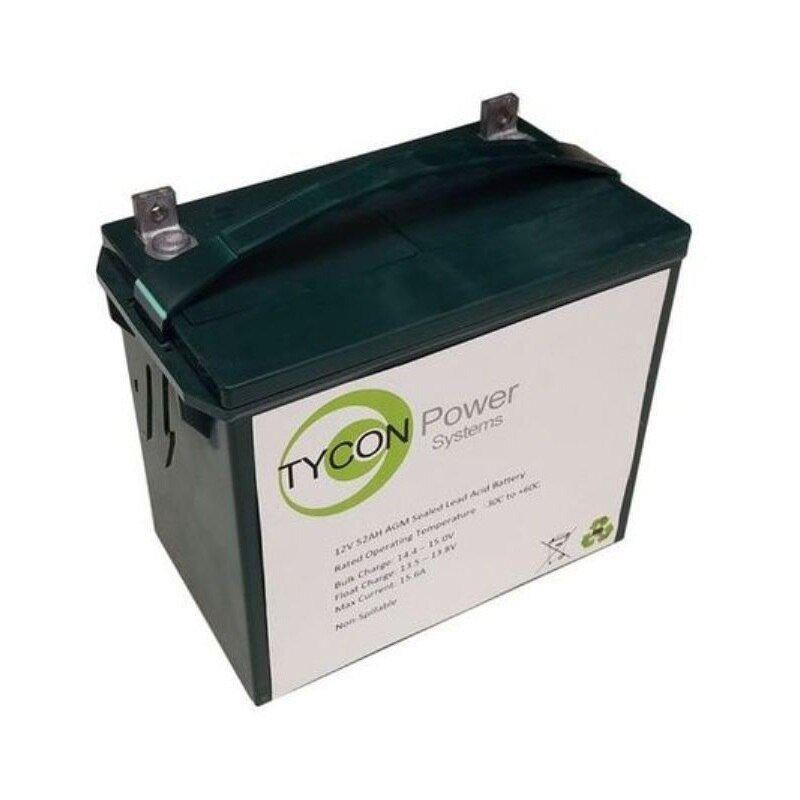

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.
The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
Features:
- Weatherproof (IP65), UV resistant, outdoor enclosures
- Powered from AC mains power and/or Solar
- Interior space for customer electronics
- Wall or Pole Mounting
- Isolates Customer Equipment from Power Line Surges
- High Quality AGM Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications:
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Mission critical outdoor power
- Backup Power Systems
Specifications
Specifications RPSTL12/24M-200-320
| Rated Power Generation | 50W |
| Reserve Time @ Rated Power | >30hrs |
| Load Out (DC) | 12 or 24VDC, 20A |
| 12V Battery Capacity (Amp Hrs) | 200Ah |
| Battery Voltage (DC) | 12 or 24VDC |
| Battery Type | Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM |
| Battery Life | 5+ Years |
| Solar Controller Type | MPPT (Maximum Power Point Tracking), Manageable, Temperature Compensated, 20A Max Solar, 20A Max Load Control, LCD Display of Voltages and Currents, Battery % |
| Bulk Charge | 14.4V / 28.8V |
| Flight Charge | 13.8V / 27.6V |
| Over-discharge protection | 11V / 22V |
| Over-discharge recovery voltage | 12.6V / 25.2V |
| Controller Self Consumption | <1W |
| Enclosure Type | Powder Coated Steel – Pole/Wall Mount |
| Enclosure External Size | 24.1 x 24.1 x 17.5" (612.5 x 612.5 x 445.6mm) |
| Enclosure Internal Size | 23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm) |
| Internal Mount Features | DIN Rail/Flat Plate Mounting Brackets Welded to Door and Sides |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| Solar Panel Dims (LxW) | 53.4” x 62” (1356 x 1560mm) |
| System Weight (without batteries) | 212 lb (96 kg) |
| Battery Weight (each) | 322 lb (146 kg) |
| Wind Speed Rating | 90MPH |
| Warranty | 3 Years |
