Tycon Power 340W Solar, Large Steel, 12V or 24V 400Ah Battery, 20A MPPT Controller Remote Power Solar System
Tycon Power RPSTL12/24M-400-340
340W Solar, Large Steel, 12V or 24V 400Ah Battery, 20A MPPT Controller Remote Power Solar System

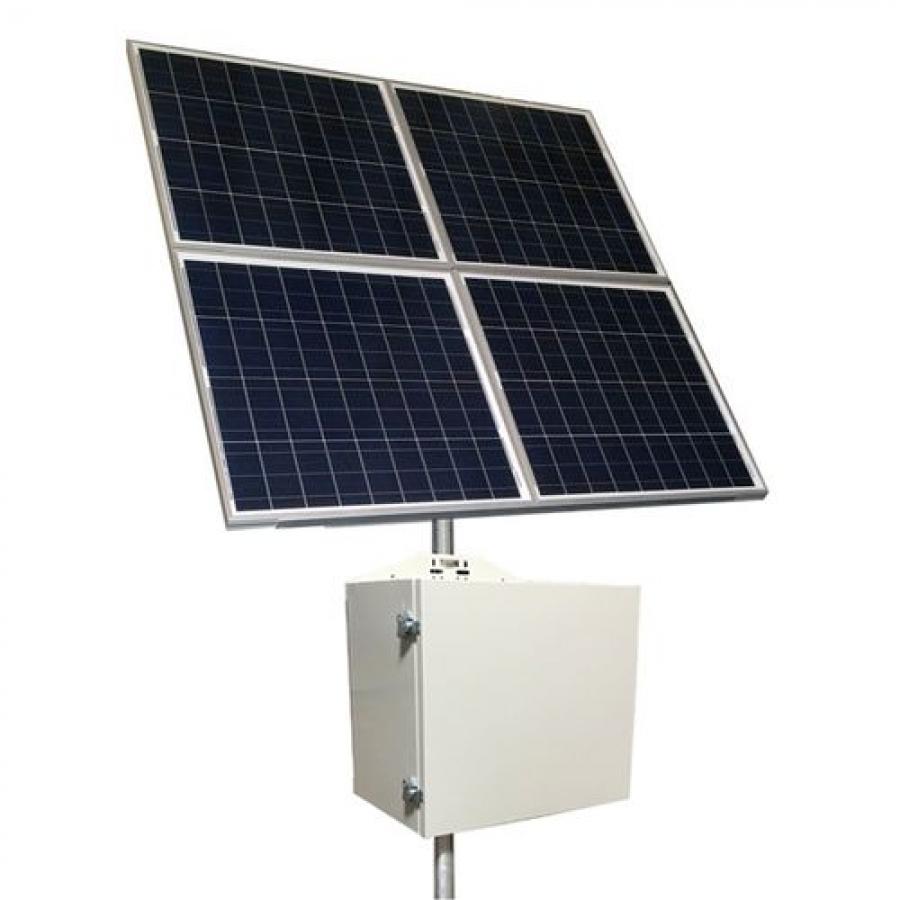

The RemotePro 340W Series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.

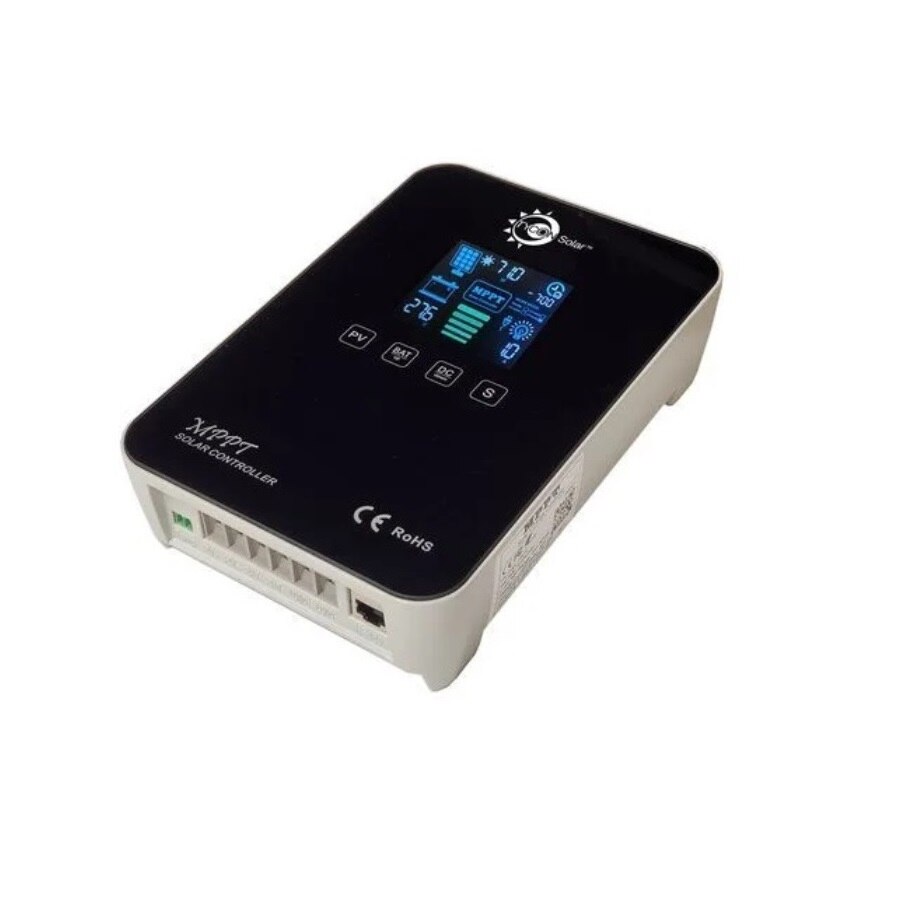

The systems are available with MPPT temperature compensated solar charge controllers with an RS485 interface for remote monitoring with a Tycon TPDIN-Monitor-WEB3 or TP-SC-WIFI adapter. The solar controllers turn off the load automatically if the battery voltage drops too low, in order to preserve battery life. The load turns on automatically once the battery voltage recovers.
The outdoor enclosures are powder coated steel or aluminum. They are hinged and gasket sealed with a locking closure that accepts a common padlock for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.

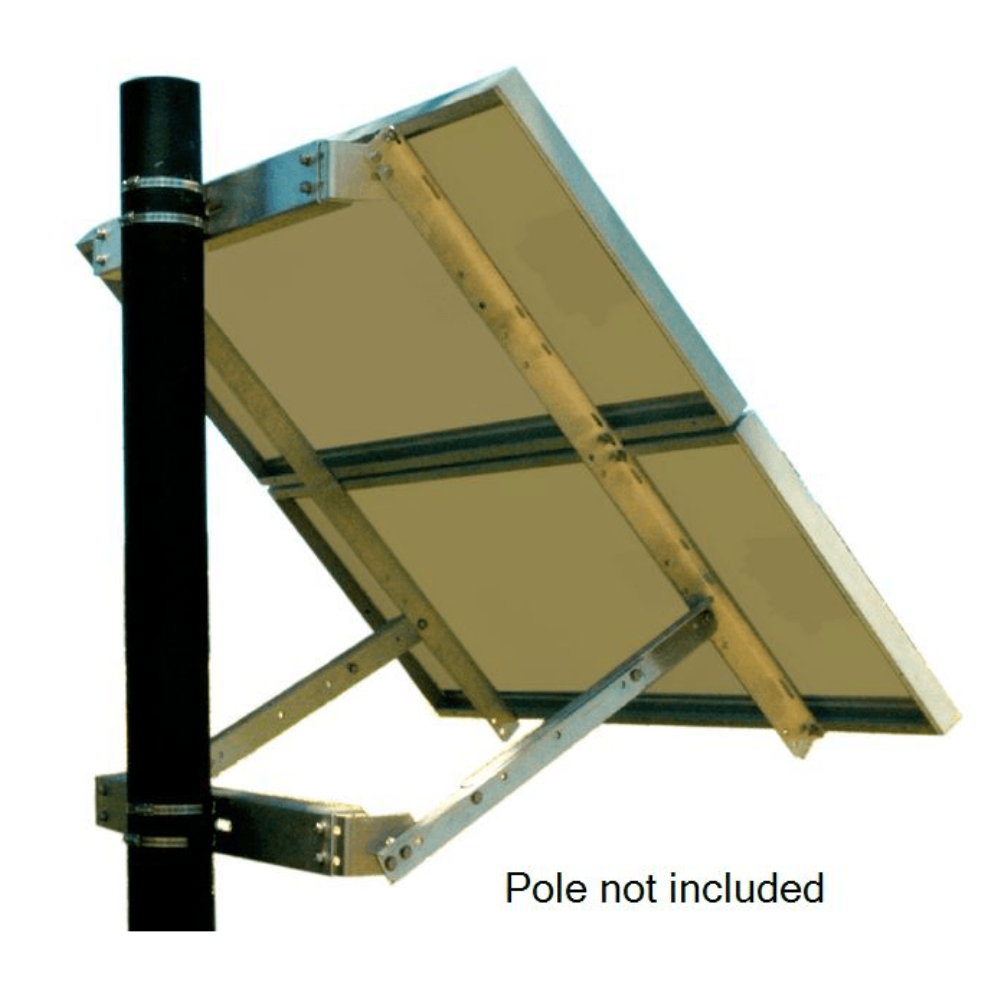

The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting system.

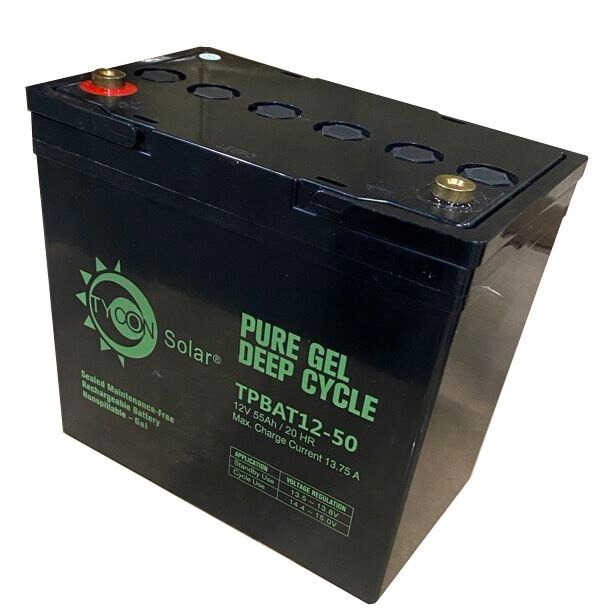

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.
The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
- Complete 340W Remote Power Solution for Off-Grid Operation
- Weatherproof Outdoor Enclosures with up to 400Ah Battery
- Enclosures can be Wall or Pole Mounted (pole not included)
- High Performance Sealed Lead Acid AGM Batteries
- MPPT Solar Charge Controllers with RS485 Interface
- Thermostatically Controlled Ventilation
- Wireless Base Stations
- Remote Lighting
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Off-Grid Power
- Backup Power
|Battery Type||Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM|
|Battery Life||5+ years|
|Enclosure Type||ENC-STL-24x24x16 Pole/Wall Mount, Powder Coat Steel|
|Enclosure Size||23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm)|
|Internal Mount Features||DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back|
|Solar Panel Dims (L x W x T)||340W Solar Array 62” x 54” x 1.4” (1575 x 1372 x 35mm)|
|Operating Temperature||-30°C to +60°C (-22°F to 140°F)|
|System Weight (no batteries)||136 lb (62 kg)|
|Battery Weight||40.3 lb (18.3 kg) (Each 50Ah Battery)|
|Wind Speed Rating||90MPH|
