Tycon Power 48VDC 2.15A 120W Battery Charger

$‎37.95 $‎39.95
$‎37.95 $‎39.95

Specifications TP-BC48-120

Total Power Available (for Load and Battery charging) 120W
Nominal Battery Voltage 48VDC
Battery Charge Max Current 2.15A
Battery Charger Voltage57.6V
Load Regulation 5%
Line Regulation 3%
Efficiency85% Minimum
Output Connector 2 Wire ; 914mm (36”) long cable
EMC Standards FCC Class B , NE55022 Class B
Safety Standards UL60950-1, CSA 22.2, TUV EN60950
AC Power Input (+-10%) 120VAC / 240VAC , 50/60Hz
AC Input Current 2.5A Max
HiPot Test 3000VAC
Insulation Resistance 50 MOhm, 500VDC
Operating Temperature -30 to +55C (22 to +131°F)
Operating Humidity (RH) Up to 90% (non condensing)
Storage Temperature -40 to +85°C (-40 to +185°F)
Storage Humidity Up to 90% (non-condensing)
MTBF (Mean Time Between Failure) >50,000 hrs
Dimensions (LxWxH) 172 x 72.5 x 34.5mm ( 6.8 x 2.9 x 1.4”)
Weight 439g (15.5oz)
Warranty 3 Years

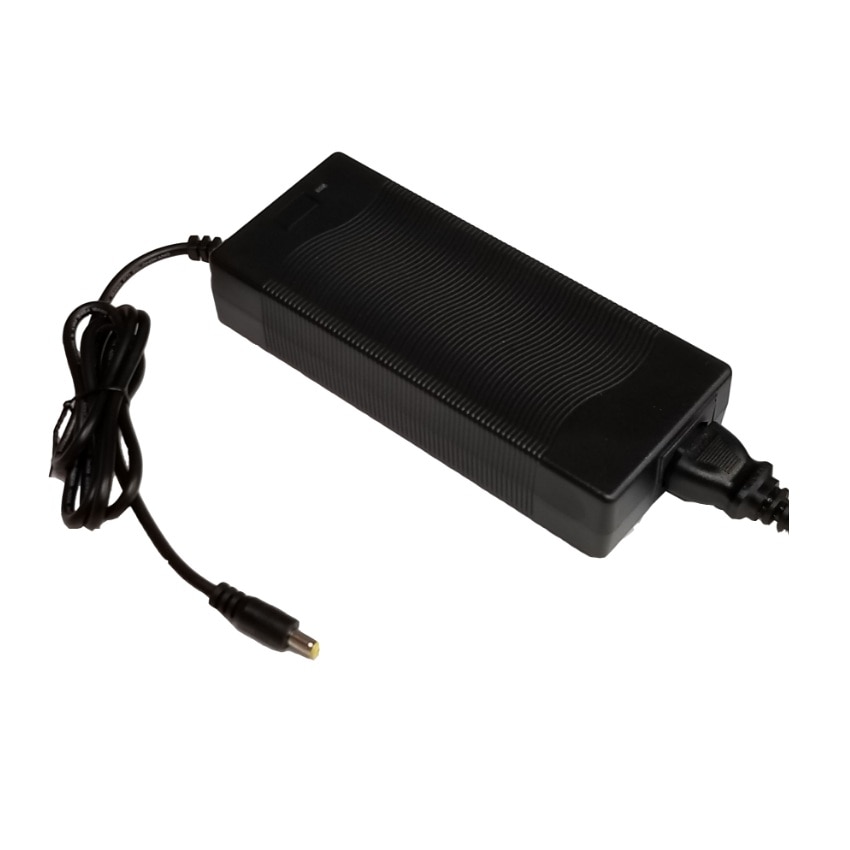

Tycon Power TP-BC48-120

48VDC 2.15A 120W Battery Charger, 120/240VAC in, 2 wire output

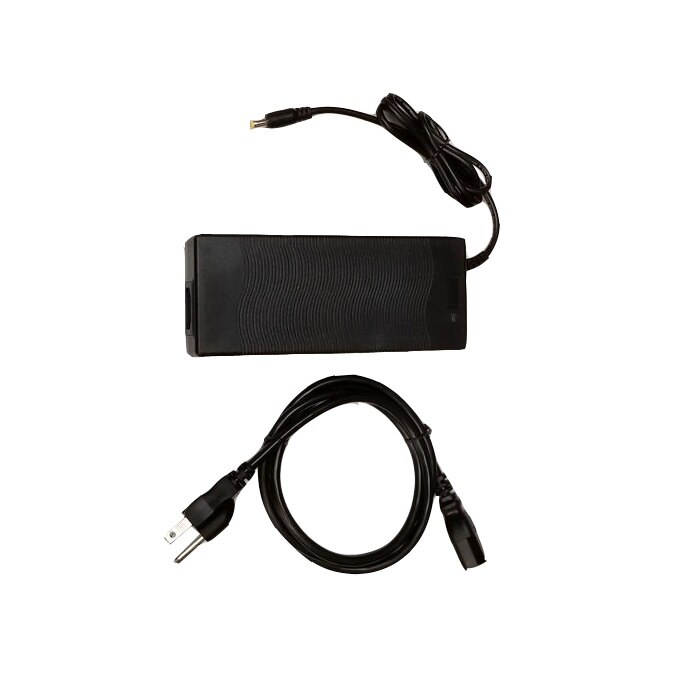

The TP-BCxx-120 battery chargers provide up to 120W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries. The charger has various protections for short-circuit, over-load, over-voltage, over-current and over-temp. It operates over a wide temperature range. There is an LED which indicates charging (Red) or battery full (Green). The unit comes with a removeable AC cord with a North American Plug. The units are auto-ranging so they can work from 100VAC to 240VAC.


Features:

  • 120W Total Power
  • Small Form Factor, Low Cost
  • Over-Voltage, Over-Current, Over-Temp, OverLoad, Short-Circuit Protections
  • Led indicator: Red=Charging, Green=Battery Full
  • Wide temperature operation
  • CE, UL and FCC Certifications
