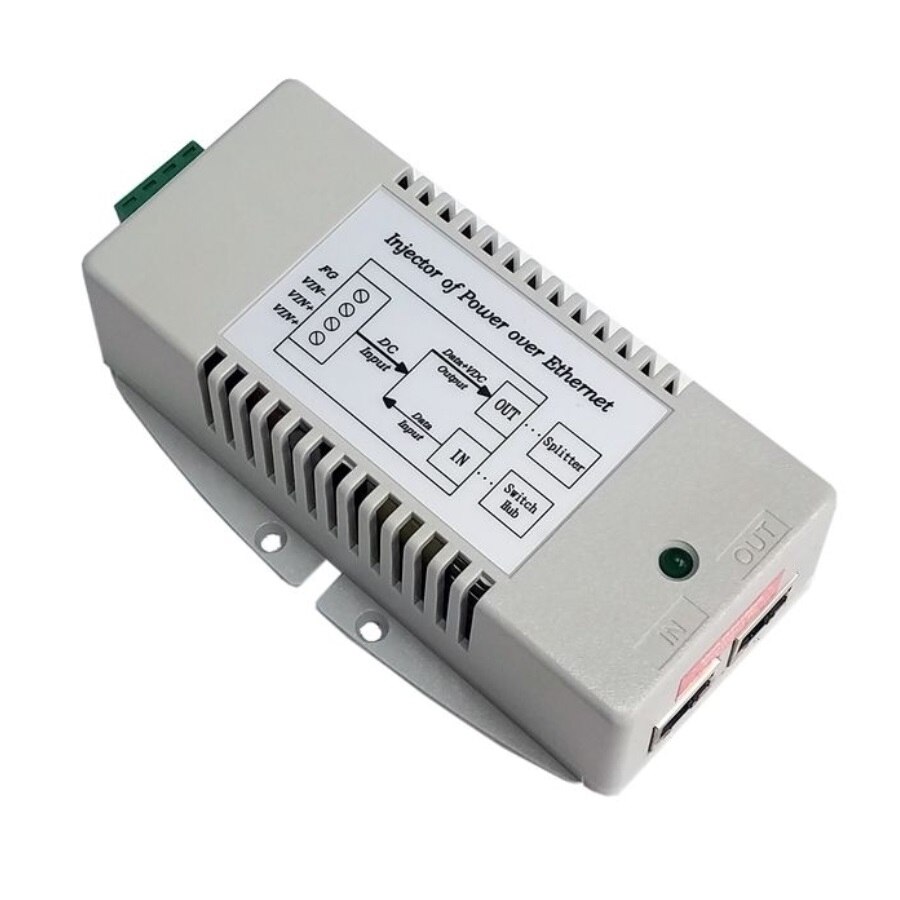

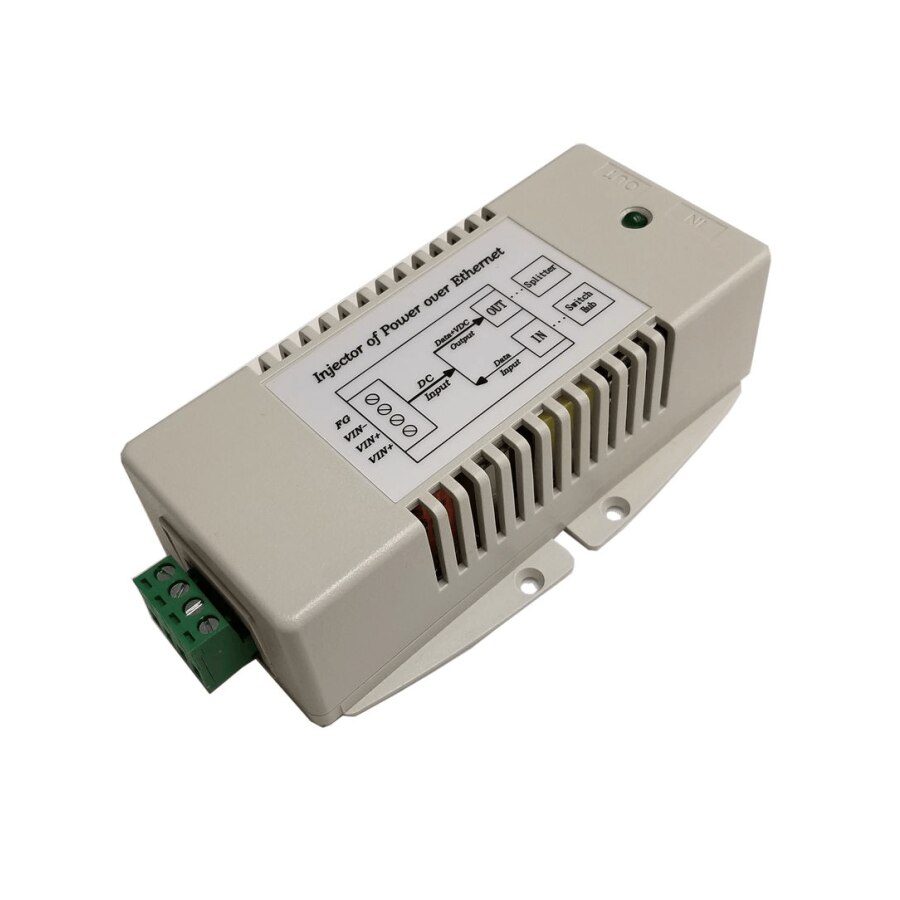

Tycon Power TP-DCDC-2456GD-VHP

Very High Power DC to DC Converter / POE Inserter

DC Input Voltage: +/- 18VDC to 36VDC
DC Output Voltage: 56VDC
Output Current (max): 1.25A
Output Power (max): 70W

The TP-DCDC-2456GD-VHP is a special very high power DC to DC converter / POE inserter designed and qualified for use with Axis Q6035-E outdoor PTZ security cameras. The DCDC converter supplies 35W per POE channel. One POE channel is using pins 4,5,7,8 and the other POE channel utilizes pins 1,2,3,6. By splitting the power onto separate POE channels, the device can achieve 70W total supplied power to the end device.

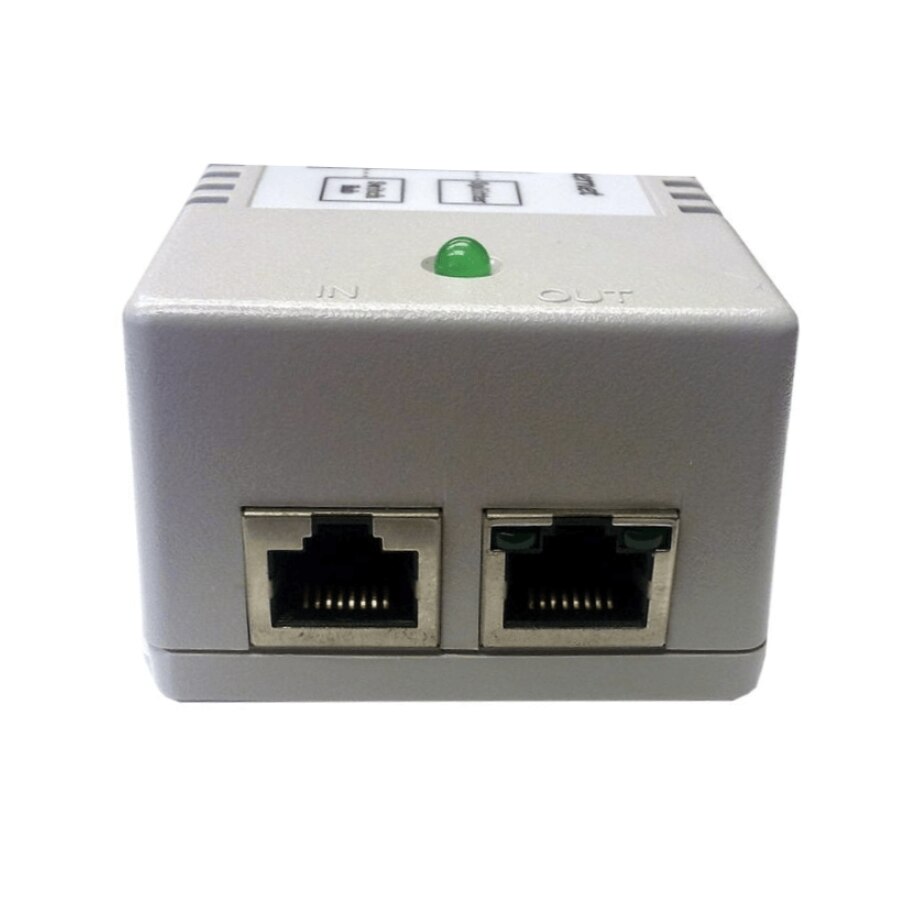

The TP-DCDC-2456GD-VHP has separate LED indicators for indicating which 802.3at channel is being used by the client. The RIGHT LED indicates POE Channel 1 and the LEFT LED indicates POE Channel 2.

The TP-DCDC-2456GD-VHP has been qualified by Axis to be used with their Q6035-e series of PTZ cameras. The unit can be used with any 802.3at device as it will supply 35W to any 802.3at POE channel detected. If two channels are detected on the client then 70W power will be supplied.

They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

Features:

  • DC to DC Converter
  • Input Voltage 24VDC (Range 18-36VDC)
  • 2 Channel 802.3at 56VDC PoE Output
  • High Power to 70W (35W per PoE Channel)
  • Dual DC Inputs for connecting 2 power sources
  • Gigabit Data Thruput
  • Low self-consumption power (<2W)
  • Short Circuit, Over Current and Reverse/Over Voltage Protection
  • High-Temperature Operation
  • I.T.E. Power Supply, UL Listed

Applications:

  • 24VDC Remote Power Systems
  • Axis PTZ Surveillance Cameras
  • 802.3at High Power Applications.
  • PoE Lighting Applications

Specifications

Specifications TP-DCDC-2456GD-VHP

Input Voltage+/- 18VDC to 36VDC
DC Input ConnectorRemoveable Screw Type Compression Wire Terminal (12 AWG Max)
POE Specification802.3at
Output Voltage (+/-2.5%)56VDC
Data in & Data/POE Output ConnectorRJ45 (Shielded)
Output Current (max)0.625A per POE channel = 1.25A Total
Output Power (max)35W per POE channel = 70W Total
Self-Consumption Power2W
Efficiency (min)0.8
Line Regulation, Ripple, Noise0.01
Load Regulation0.05
EMC StandardsFCC Class B EN55022 Class B
Safety StandardsCSA 22.2 &TUV EN60950
Operating Temperature-30 to +60°C (-22 to +140°F)
Operating Humidity (RH)5% - 90%
MTBF (Mean Time Between Failure)55,489 Hours
Storage Temperature-40 to +80°C (-40 to +176°F)
Dimensions (LxWxH)125 x 75 x 38mm (4.9 x 3 x 1.5”)
Weight0.75 lbs
