Tycon Power Gigabit 36-72VDC IN 24VDC OUT 30W Hi Power DC to DC Converter and Passive PoE Inserter

(0)No Reviews yet
  • SKU: TP-DCDC-4824G-HP
$66.45 $77.95

82 In Stock

82 in stock
Utah
82 In stock

Product Information

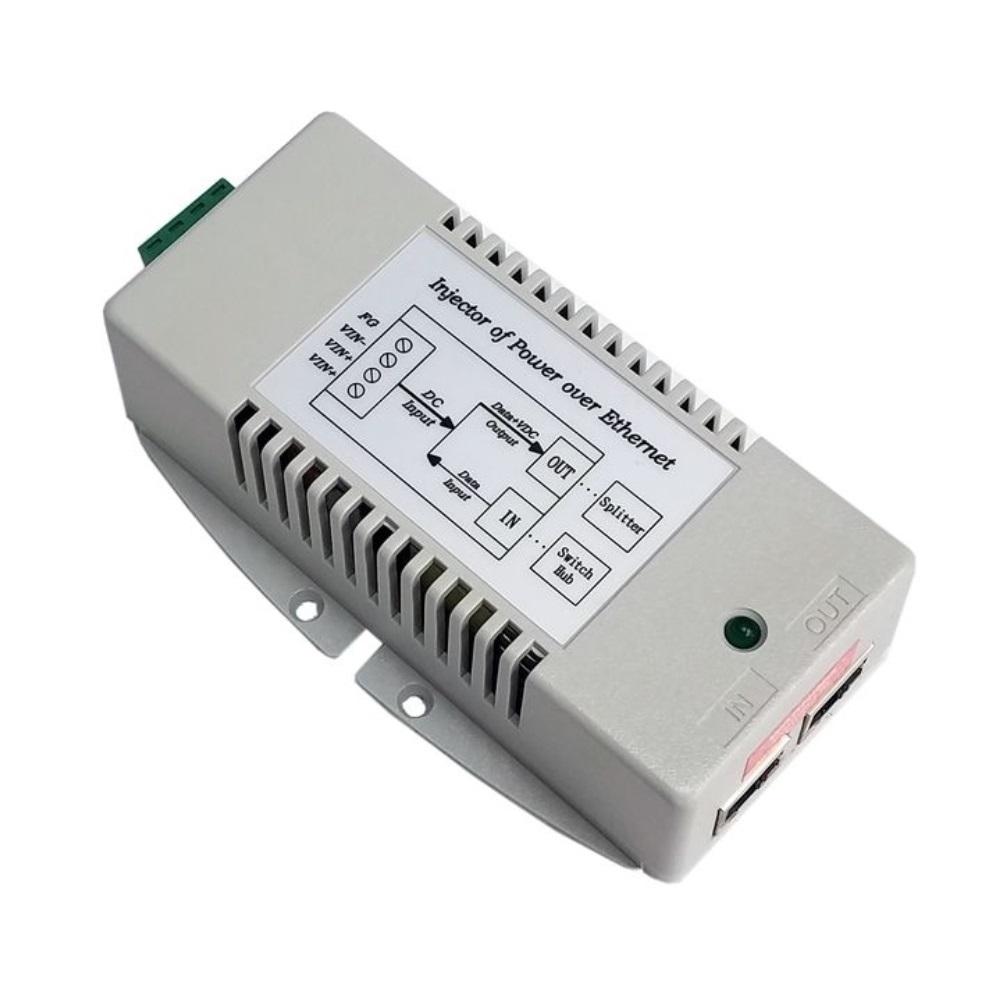

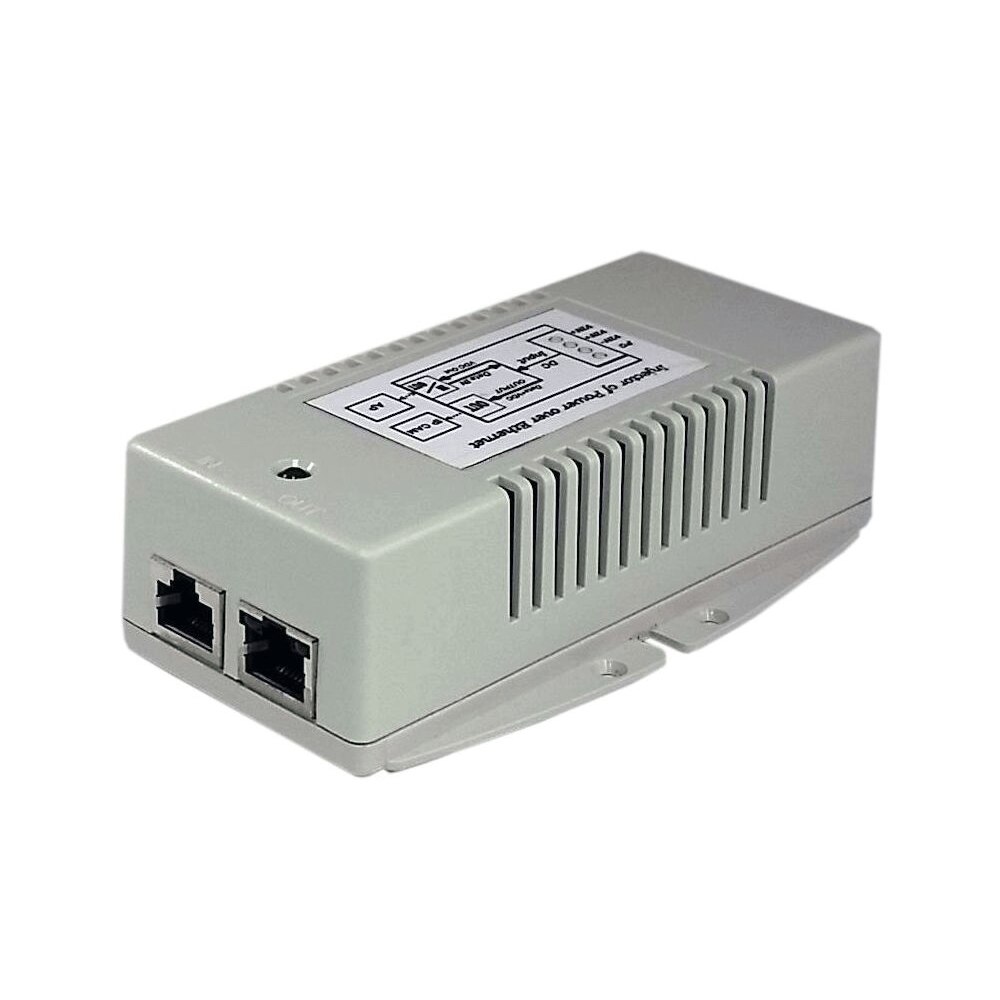

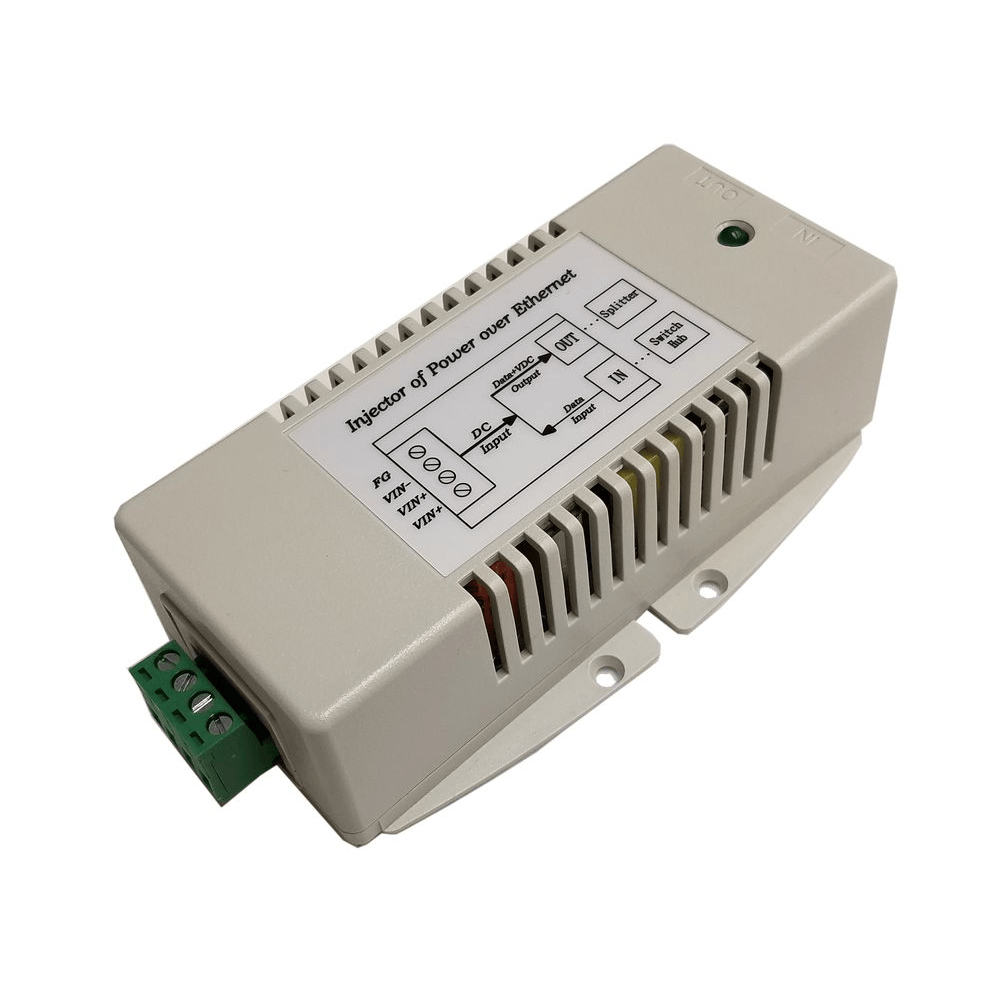

Tycon Power TP-DCDC-4824G-HP

Gigabit 36-72VDC IN 24VDC OUT 30W Hi Power DC to DC Converter and Passive PoE Inserter

The TP-DCDC-4824G-HP offered by Tycon Power® is a low cost and high efficiency DC to DC Converter solution for those requiring Passive Power over Ethernet from a 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected.

They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.

The injector accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W.

Features:

  • DC to DC Converter
  • Input Voltage 48VDC (Range 36-72VDC)
  • Passive PoE Output 24VDC
  • Dual Inputs for Connecting 2 Power Sources
  • Integrated 10/100/1000MB PoE Inserter
  • High Power up to 35W
  • Low Self Consumption Power
  • Short Circuit, Over Current and Reverse/Over Voltage Protect
  • High Temperature Operation
  • Compact Size – Maximize Available Space
  • I.T.E. Power Supply, UL Listed

Applications:

  • 48V Battery Systems, Vehicle Applications
  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems

Specifications

Specifications TP-DCDC-4824G-HP

DC Input Voltage+/- 36 to 72VDC
DC Input ConnectorRemoveable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage24V (Passive)
Data in & Data/POE Output ConnectorRJ45 (Shielded)
Output Current (max)1.5A
Output Power (max)35W
Self Consumption Power1W
Efficiency (min)75%
Line Regulation1%
Load Regulation5%
Ripple1%
Noise1%
EMC StandardsFCC Class B EN55022 Class B
Safety StandardsIEC 62368-1, EN 62368-1, AS/NZS 62368.1
Operating Temp-40 to +70°C (-40 to +158°F)
Operating Humidity5% - 90% Non Condensing
MTBF (Mean Time Between Failure)106,924 Hours
Storage Temp-40 to +80°C (-40 to +176°F)
Dimensions (LxWxH)125 x 75 x 38mm (4.9 x 3 x 1.5”)
Weight300g (10.6oz)
Warranty3 Years
