Tycon Power 24 Port POE 802.3af Gigabit Midspan Injector
Tycon Power TP-MS324

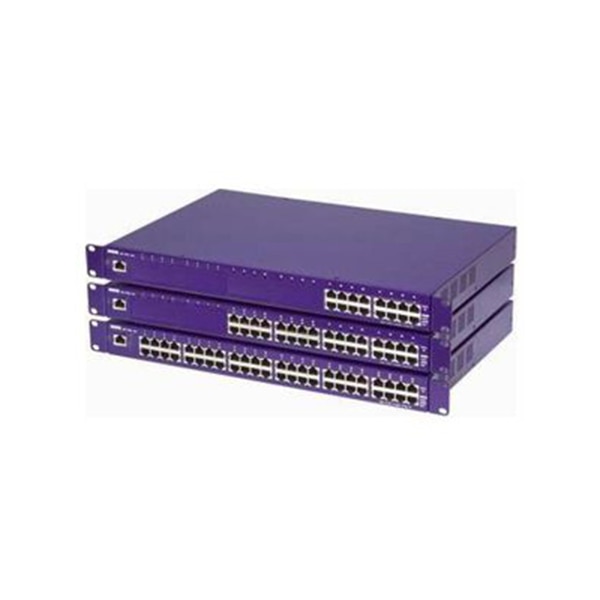

24 Port POE 802.3af Gigabit Midspan Injector
The TP-MS3xx series of rack mount mid span POE power sources are used for supplying POE and data to multiple devices from a central location such as an operations room. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3af compliant and supports Gigabit Ethernet.
The included PC software allows for configuration of the individual ports and for displaying port status through the RJ45 management port or network. Ports can be enabled/disabled and configured for forced POE output (Passive POE) or IEE802.3af detection. POE DC Voltage (48V) is supplied on pins 4,5 (V+) and 7,8 (V-). Maximum power output per rack mount unit is 400W. The individual outputs are overload and short circuit protected.
The TP-MS308 has 8 POE ports. The TP-MS316 has 16 POE ports. The TP-MS324 has 24 POE ports.
The 1U rack mounting accommodates 19" or 23" racks with included brackets.
|Ethernet Standard||IEEE802.3/IEEE802.3u/IEEE802.3ab (10 base-T/100base-T/1000base-T)|
|POE Standard||IEEE802.3af or 48VDC Passive POE|
|Shielded RJ45 Ports||24 data-in ; 24 data/POE out|
|Console Port||RJ45 Management Port. Can also be managed via network|
|Max Device Distance||100m (328ft)|
|Maximum POE Power||16.8W per port, 350mA @ 48V|
|POE Protection||Over Temperature, Over Current, Over/Under Voltage|
|LED’s||Power On (Green On) Power On Alarm (Red On) POE Power On (Green On) POE Detecting (Orange Blinking) POE Port Off (Orange On) POE Detect Error (Red On) POE Unknown Device (Off)|
|AC Power Input||100~240VAC, 50/60H|
