Tycon Power ISOLATED Mid Span Very High Power 40W PoE Injector - 16 port. AC/DC In. 1U Rack Mount

(0)No Reviews yet
US$‎1,234.95 US$‎1,299.95
  • SKU: TP-MS616-ISO
  • Manufacturer: Tycon Systems
  • Data Sheet: Download

Out of Stock

34 in stock
Utah
34 In stock

Product Information

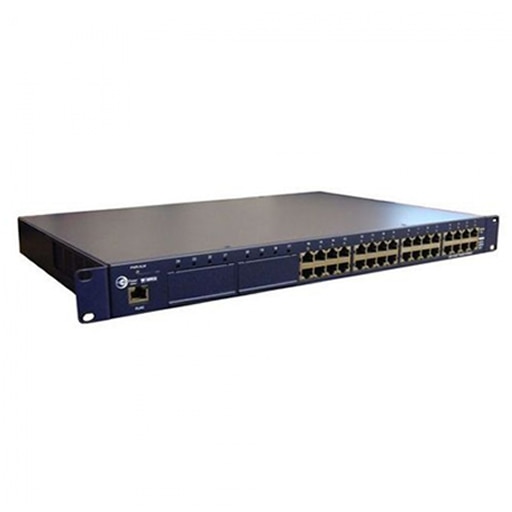

Tycon Power TP-MS616-ISO

ISOLATED Mid Span Very High Power 40W PoE Injector - 16 port. AC/DC In. 1U Rack Mount. IEEE802.3af/at. Gigabit. 576W

Tycon Power Isolated TP-MS616-ISO rack mount 16 port mid span POE power sources are used for supplying POE and data to up to 16 devices multiple devices from a central location such as an operations room.

The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3at/af compliant and supports Gigabit Ethernet.

The included PC software allows for configuration of the individual ports and for displaying port status through the RJ45 management port or network. Ports can be enabled/disabled and configured for forced POE output (Passive POE) or IEE802.3at/af detection.

POE DC Voltage (55V) is supplied on 4 pairs. Maximum power output per rack mount unit is 576W. The individual outputs are overload and short circuit protected.

The 1U rack mounting accommodates 19" racks with included brackets.


Features:

  • IEEE 802.3af/at High Power Midspan POE Injectors
  • Up to 40W per Individual Port
  • 1U Standard Rack Mount (19”)
  • Configuration and status thru web interface
  • Supports non standard (Passive) devices
  • Accepts AC or DC input
  • Remotely Power Multiple Equipment thru CAT5 Cable up to 100m

Features:

  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems
  • Power Network Devices from a Central Network Room

Specifications

Specifications TP-MS616-ISO

Ethernet StandardIEEE802.3 / IEEE802.3u / IEEE802.3ab (10base-T / 100base-T / 1000base-T)
PoE StandardIEEE802.3at/af or Passive PoE
Shielded RJ45 Ports16 data-in ; 16 data/PoE out
Console PortRJ45 Management Port. Can also be managed via network
Max Device Distance100m (328ft)
Maximum PoE Power35W per port, 625mA @ 56V
PoE ProtectionOver Temperature, Over Current, Over/Under Voltage
AC Power Input100~240VAC, 50/60Hz
DC Power Input-47 to -57VDC
Max Power Output576W
Operating Temperature-20 to 65°C (-4 to 149°F)
Operating HumidityUp to 95% (non condensing)
Storage Temperature-20 to 80°C (-4 to 176°F)
Dimensions230 x 290 x 44mm (16.9 x 11.4 x 1.7") 1U rack mount 19"
Weight4.9kg (10.8lbs)
