Tycon Power 56V 60W 4pair PoE++ Power Inserter
- SKU: TP-POE++10G
$66.45 $69.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Tycon Power TP-POE++10G
56V 60W 4pair PoE++ Power Inserter

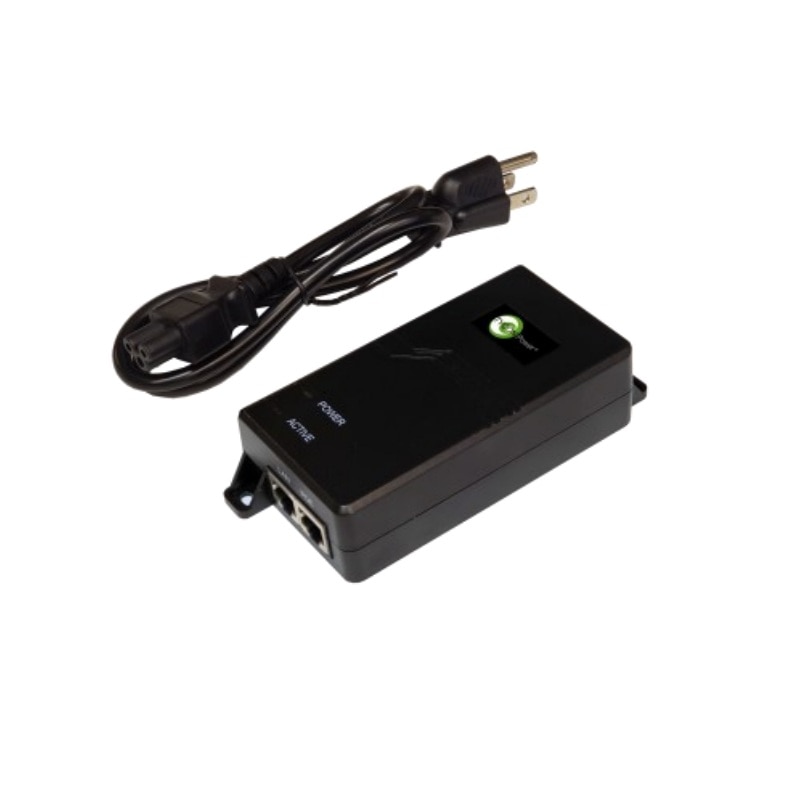

The TP-POE++10G is a compact 10/100/1000/10000MB (10G) desktop PoE++ inserter with 120/240VAC auto-ranging input. The inserter has an output that is 4 pair: Mode A (1,2+ 3,6-) and Mode B (4,5+ 7,8-) 802.3at PoE++ at up to 60W. It comes with a 3 prong 2’ North American power cord with IEC C5 plug.
Features:
- 1 RJ45 Data Input Port
- 1 RJ45 Data and PoE Output Port
- 100-240VAC 50/60Hz Auto-Ranging via
- Self-Consumption <1W
- 24-60W Depending on Model
- 10/100/1000/10000 Mbps (10Gb)
- CAT6a 10G to 55m—CAT6e 10G to 80m, 5G to 100m
- Convert Grid Power to Passive PoE or 802.3at Compliant PoE
Applications:
- PoE++ Wireless Devices
- PoE++ Security Cameras
Specifications
Specifications TP-POE++10G
| AC Input Voltage | 100-240VAC 50/60Hz |
| Output PoE Voltage | 56VDC +/-2V, 802.3at PoE++, 4 Pair: Mode A (Pins 1,2+ 3,6-) and Mode B (Pins 4,5+ 7,8-) |
| Maximum Load | 1A (56W) Max |
| Protections | Short Circuit, Overcurrent, Surge/ESD (4kV) |
| Efficiency | 84% Minimum |
| Ripple and Noise | 200mV p-p max |
| Data Rate | 10/100/1000/10000Mbps (10Gb) |
| No Load Consumption | 1W Max |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -30 to +80°C |
| Operating Humidity | 5% to 90% non condensing |
| Size (L x W x H) | 5.5 x 2.5 x 1.4” (138.5 x 62.5 x 35.3mm) |
| Weight | 8.1oz (230g) |
| MTBF | 100,000 Hrs |
| Certifications | CE, FCC | IEC 60065, IEC60950, EN55022, EN55013, EN55024, EN55020, FCC Part 15 Class B, EN61000-4-4, EN61000-4-5 |
| Connectors | RJ45 Shielded Jacks |
| Ethernet Cable Compatibility | CAT6a 10G to 55m; CAT6e 10G to 80m, 5G to 100m |
| Warranty | 3 Years |
