Tycon Power Voltage Regulator 16-32VDC 12V @ 1.25A
- SKU: TP-VR-2412
$27.50 $28.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information

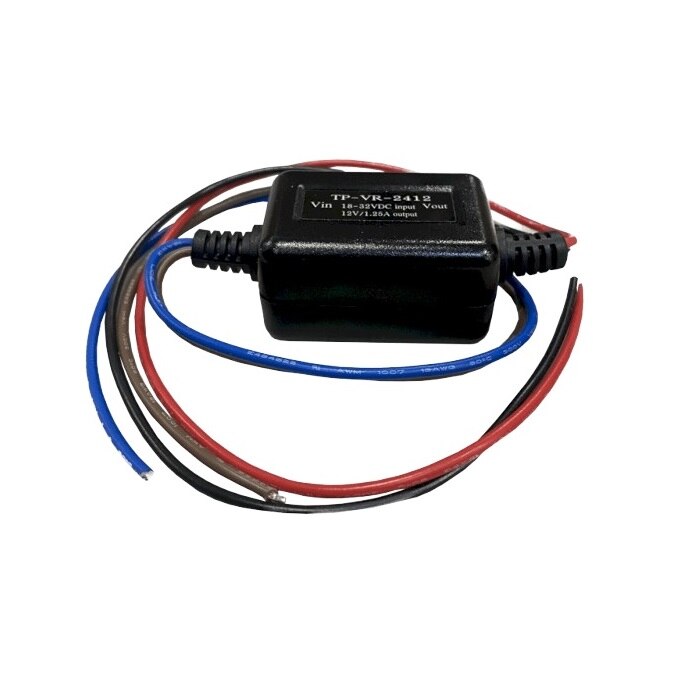

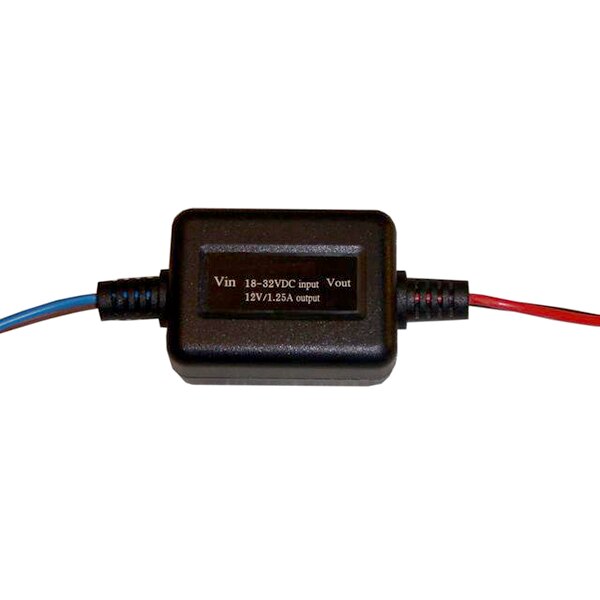

Tycon Power TP-VR-2412
Voltage Regulator
DC Input: 16V to 32VDCDC Output: 12VDC @ 1.25A
The TP-VR series of sealed DC to DC regulators offer high output regulation in a compact sealed enclosure. They have 12" long 18AWG leads on input and output for universal connectivity.
Features:
- Voltage Converter
- Compact Size, Sealed Design
- High Output, Short Circuit Protected
- 12″ 18AWG Lead Wires
Applications:
- Security Systems
- Remote Power Systems
- Marine Applications
- Wireless Base Stations
Specifications
Specifications TP-VR-2412
| DC Input Voltage Range | 18V to 32VDC |
| DC Voltage Output | 12VDC @ 1.25A |
| Maximum power dissipation | 15W |
| Efficiency | 80% |
| Load / Line Regulation | 5% / 1% |
| Ripple / Noise | 2% / 5% |
| Wire Gauge | 18AWG |
| Lead Wire Length | 12" |
| Operating Temperature | -40°F to 149°F (-40°C to +65°C) |
| Operating Humidity | 0 to 99% RH |
| Size | 2.75 x 1.25 x 1" (70 x 32 x 25mm) |
| Weight | 1.5oz (43g) |
