Tycon Power 35W Complete Solar Kit with 20A Controller, 12V
Product Information
Tycon Power TPSK12-35W
35W 12V Solar Kit: 35W Panel, Pole Mount, PWM Controller, Cable, Supports 8W continuous

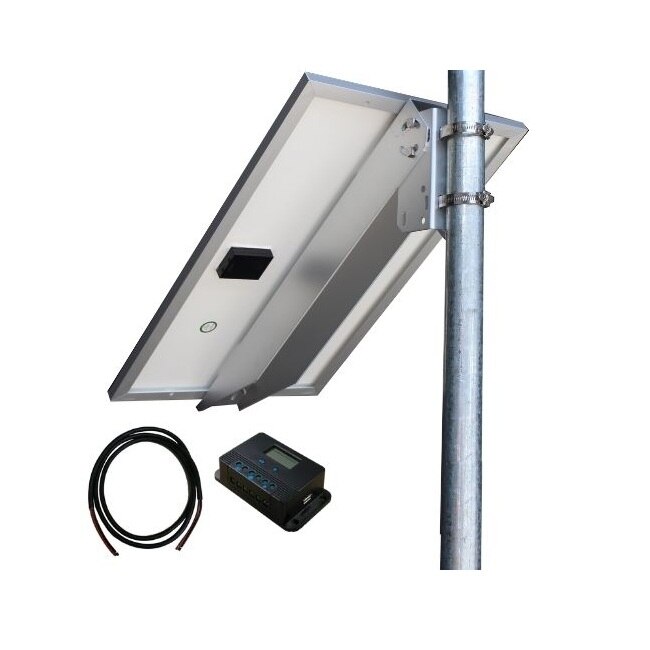

The TPSK series of solar panel kits come complete with high efficiency multicrystalline solar panel, side of pole/wall mounts, PWM Charge Controller and outdoor rated 12AWG cable. They are ready for quick connection to Tycon Solar outdoor UPSPro Systems or any other application requiring solar power. The panels provide excellent low light performance and long life (25years). The rugged aluminum frame and high transparency, low iron, tempered glass withstands high wind, hail and snow loading. The mounts are heavy duty aluminum with stainless steel hardware. They are a simplified design that makes them easy to install, saving precious installer time. The mounts are designed for pole mounting but can also be wall mounted. They provide quick tilt adjustment for positioning the panel to proper sun angles for summer and winter sun.
Features:
- v Complete Kit – Solar Panel, Pole/Wall Mount, Outdoor 12AWG Cable, Battery Charge Controller
- Accommodates 2" to 4.5" dia. Pole or Wall Mount
- Quick tilt adjustment (15° to 65°)v
- Certified for up to 110MPH Winds
Applications:
- Remote Power Stations
- Wireless Base Stations
- Lighting Applications
- Surveillance Applications
Specifications
Specifications TPSK12-35W
| Solar Panel Voltage/Capacity | 12V 30W lbs |
| Solar Panel Max Current | 1.74A lbs |
| Solar Panel Size | 16” x 26” lbs |
| Solar Panel Model | TPS-12-30 lbs |
| Pole Diameter | 2” to 4.5” lbs |
| Pole Mount Model | TPSM-30-80-SP lbs |
| Wind Speed Rating | 110MPH lbs |
| Charge Controller Model | TP-SC24-20 lbs |
| Cable – 2 Cond – Outdoor | 12AWG x 10’ lbs |
| Operating Temperature | -40C to +85C lbs |
| Shipping Weight | 8.2kg (18lb) lbs |
| System Self Consumption | <1.5W lbs |
| Battery Type | Non Spillable Sealed Lead Acid GEL lbs |
| Battery Life (TYPICAL) | 5 Years lbs |
| Enclosure Type | Powder Coated Steel, Security Locks, Pole (2” to 4”) or Wall Mount lbs |
| Enclosure External Size | 24 x 15 x 14" (610 x 381 x 356mm) lbs |
| Enclosure Internal Size | 23 x 14 x 12" (584 x 356 x 305mm) lbs |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) lbs |
| System Weight (without batteries) | 55lb (25kg) lbs |
| Battery Weight | 37lb (17kg) each x 2 lbs |
| Warranty | 3 years lbs |
