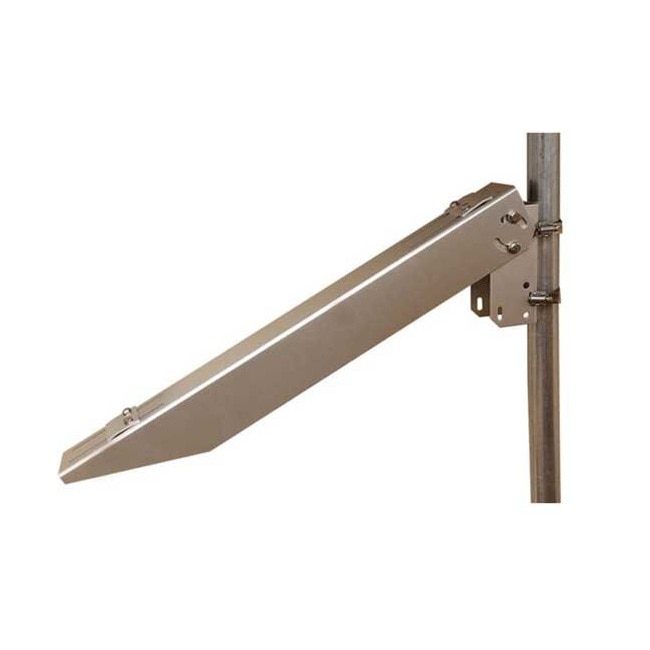

Tycon Power Side PoleMount for 30W to 80W Solar Panels
- SKU: TPSM-30-80-SP
Product Information
Tycon Power TPSM-30-80-SP
Side PoleMount for 30W to 80W Solar Panels
The TPSM series of solar panel mounts are designed to be used with Tycon Power Systems solar panels but are flexible in their design and can be used with other manufacturer’s solar panels. The low cost simple designs reduces installation costs, saving the installer precious install time. The construction is heavy duty aluminum with all stainless steel hardware for very long service life in the harshest conditions.
Features:
- Simple, Low Cost Design
- Flexible Side of Pole Mounting (1.6" to 4.5" dia. pole)
- Heavy Duty Aluminum and stainless steel components for long life
- Easy to Install - Reduced Installation time
- Quick tilt adjustment (0deg to 90deg)
- Certified for up to 110MPH Winds
Specifications
Specifications TPSM-30-80-SP
| Solar Panel Width | 16 to 26" |
| Typical Solar Panel Size | 30 to 80W |
| Solar Panel Mount Type | Edge Clip |
| Pole Diameter | 1.6 to 4.5" |
| Pole Attach | Stainless Steel Hose Clamp (5/16" driver) |
| Wind Speed Rating | 110mph |
| Shipping Weight | 1.6kg (3.5lbs) |
| Shipping Dimensions | 686 x 102 x 102mm (27 x 4 x 4") |
| Tilt Adjustment | 0 to 90° |
