Tycon Power UPS-PL12-36-120 12V 36Ah 120W Outdoor UPS Systems
Product Information
Tycon Power UPS-PL12-36-120
12V 36Ah 120W Outdoor UPS Systems
The UPSPro® 120W series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready so a solar panel can be added as an alternate power source or to extend backup time. Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

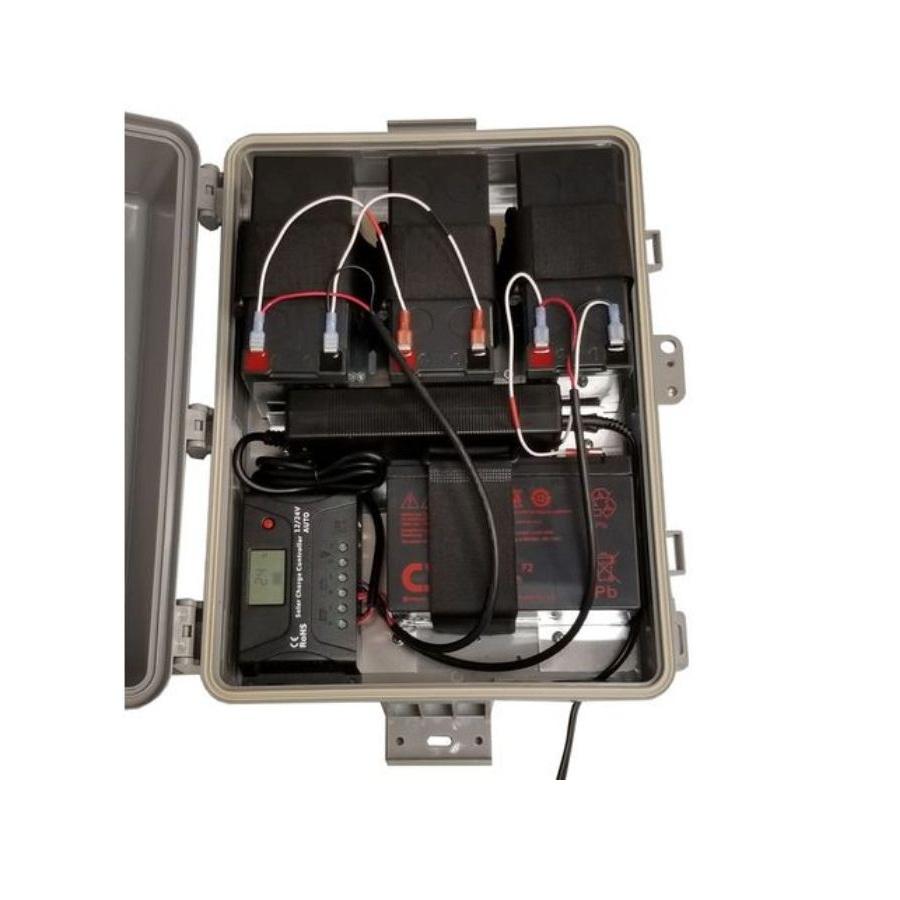

There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.
A typical 250mW wireless access point with average power consumption of 4W will run 24 hours on a 9Ah battery at room temperature or 16 hours at -20 deg C.
Features:
- Weatherproof, UV resistant, outdoor enclosures
- Powered from AC mains power and/or Solar
- Interior space for customer electronics

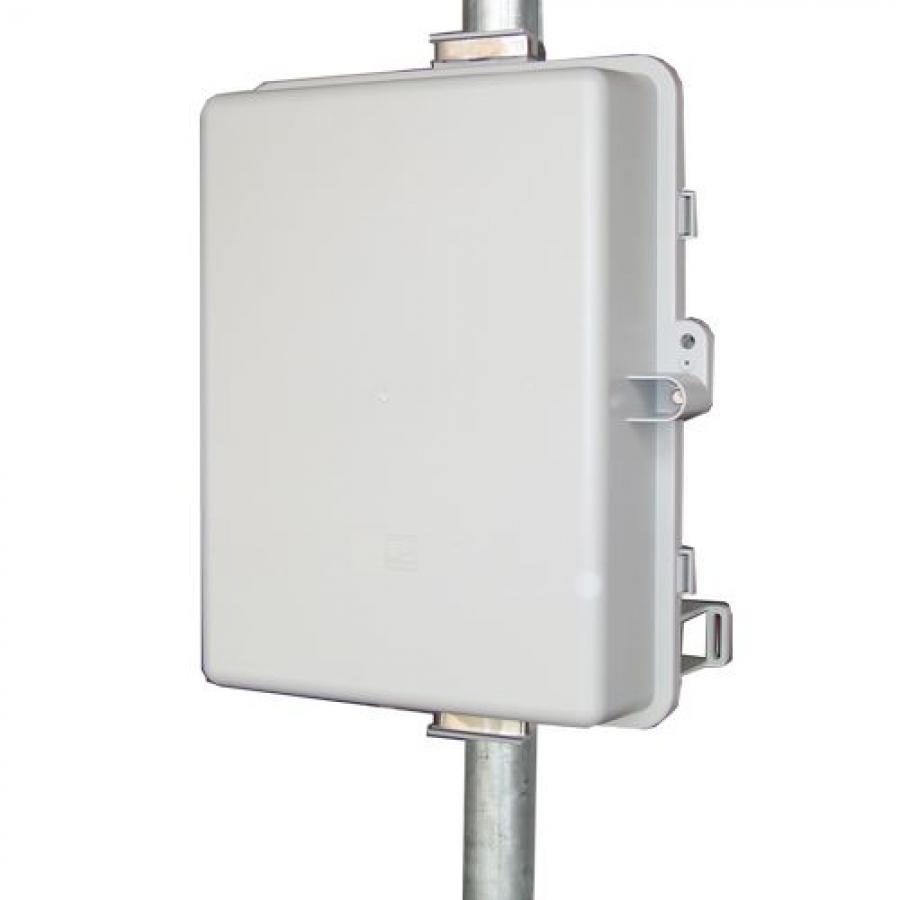

- Wall or Pole Mounting
- Isolates Customer Equipment from Power Line Surges
- High Quality AGM Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications:
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Mission critical outdoor power
- Backup Power Systems
Specifications
Specifications UPS-PL12-36-120
| Battery Voltage (DC) | 12V |
| Input Voltage (AC) | 120/240VAC, 50/60Hz, 2.5A Max |
| Available 12V Capacities (Amp Hr) | 36Ah(4 batteries) |
| Avail Storage Capacity (Watt Hr) | 432Wh |
| Max Output Power | 120W |
| Suggested Maximum Load | 100W |
| Maximum Instantaneous Load | 20A 500msec |
| Battery Type | Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
| Battery Life | 5 Years |
| Controller Type | 20A PWM Solar Controller with Status Display and Load on/off switch Max Solar Panel Size 160W |
| Controller Display Status | Battery Voltage, Charging Current, Load Current, Temperature |
| Overcharge Protection | 14.4V |
| Over-discharge protection | 11V |
| Over-discharge recovery voltage | 12.3V |
| Controller Self Consumption | <0.3W |
| Enclosure Type | Polycarbonate |
| Enclosure External Size | 17.5 x 12.5 x 6” (445 x 318 x 152mm) |
| Enclosure Internal Size | 14 x 10 x 5” (356 x 254 x 127mm) |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (without batteries) | 6lb (1.8kg) |
| Battery Weight (each) | 5.5lb (2.5kg) |
| Certifications | Individual components used have CE Certifications. Batteries have CE and UL. |
