Tycon Systems 15"x11"x6" Polycarbonate Locking Outdoor Enclosure. pole/wall mount

Tycon Systems ENC-PL-15x11x6

15"x11"x6" Polycarbonate Locking Outdoor Enclosure. pole/wall mount

The ENC-PL-15x11x6 outdoor enclosures are designed for applications that require a lightweight, sturdy, weatherproof , RF transparent enclosure to house various electronics. The hinged door is gasket sealed and secured with toggle clamps for closure. They include a combination lock to secure the door.

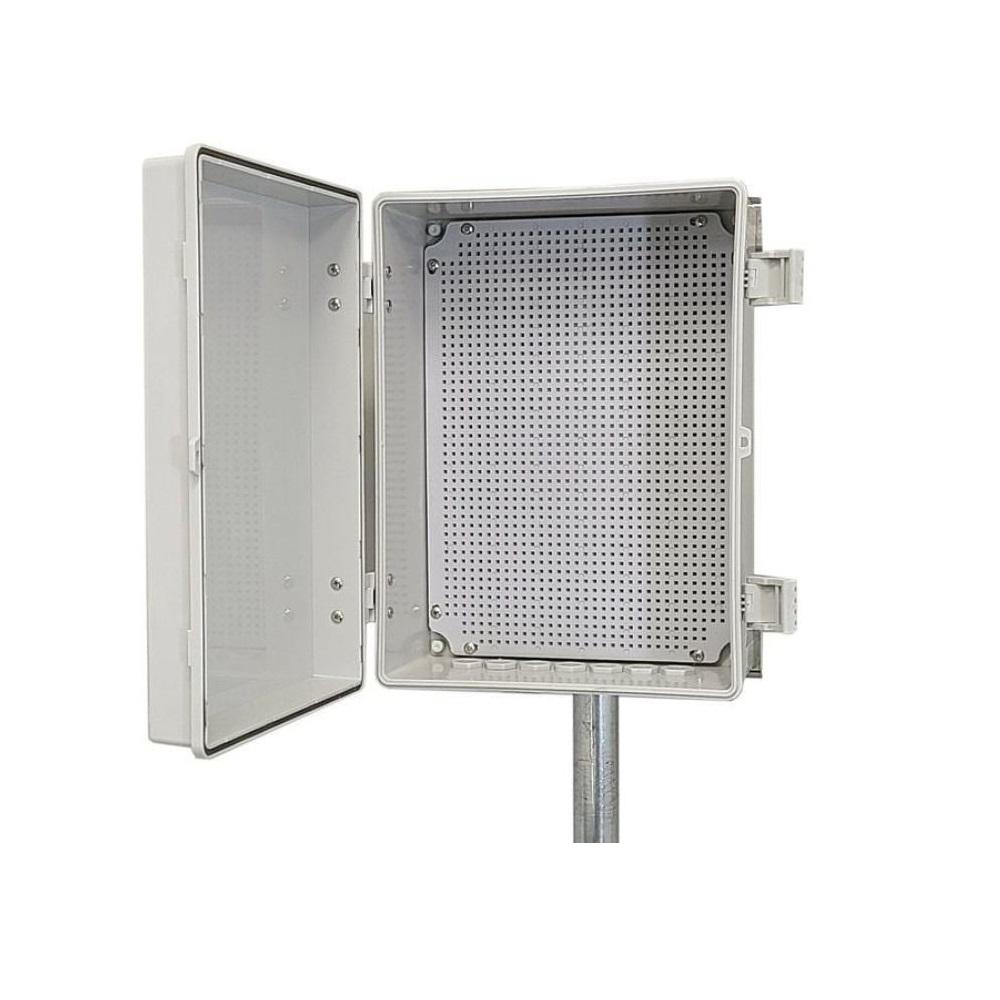

There is a perforated universal ABS backplate inside the enclosure that allows flexible mounting of customer devices using a #8 sheet metal screw.

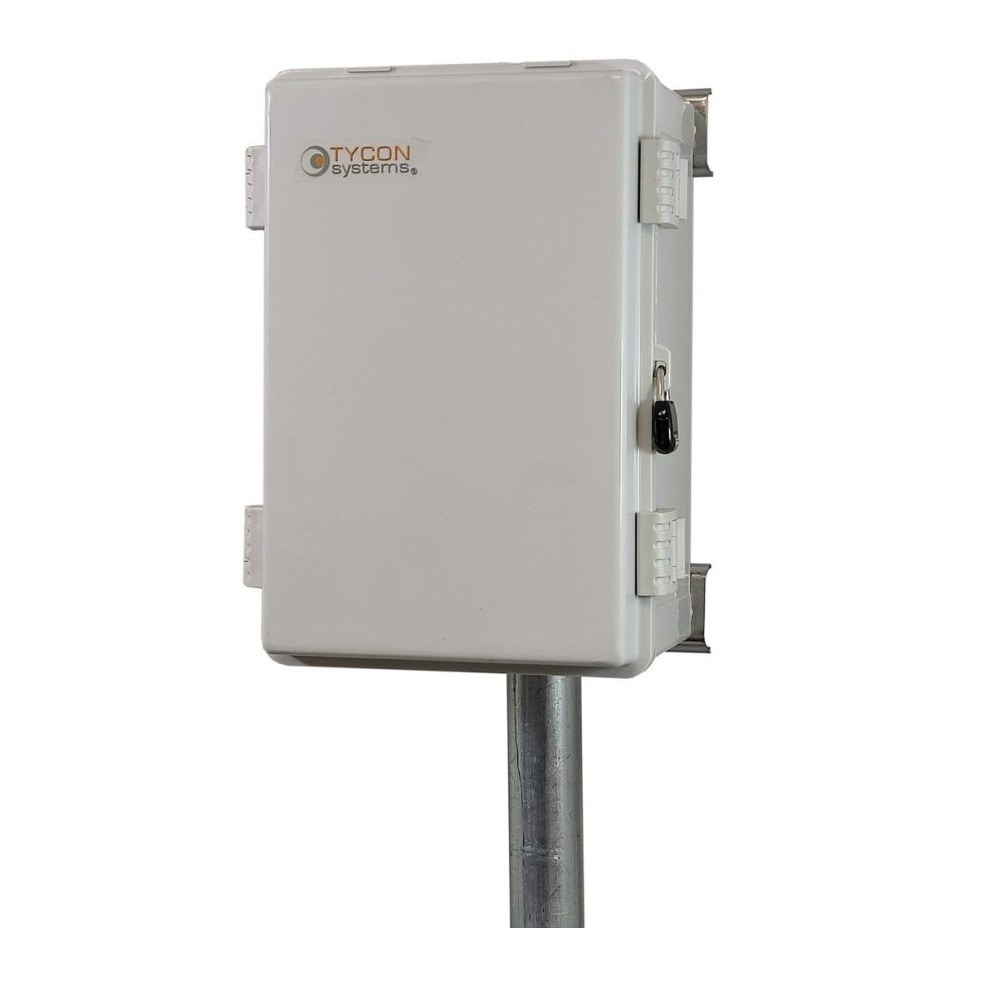

They can be wall or pole mounted with the included hardware. The pole mounting can accommodate up to a 4” diameter pole. For larger diameter poles, stainless steel straps are available commercially to accommodate almost any diameter pole.

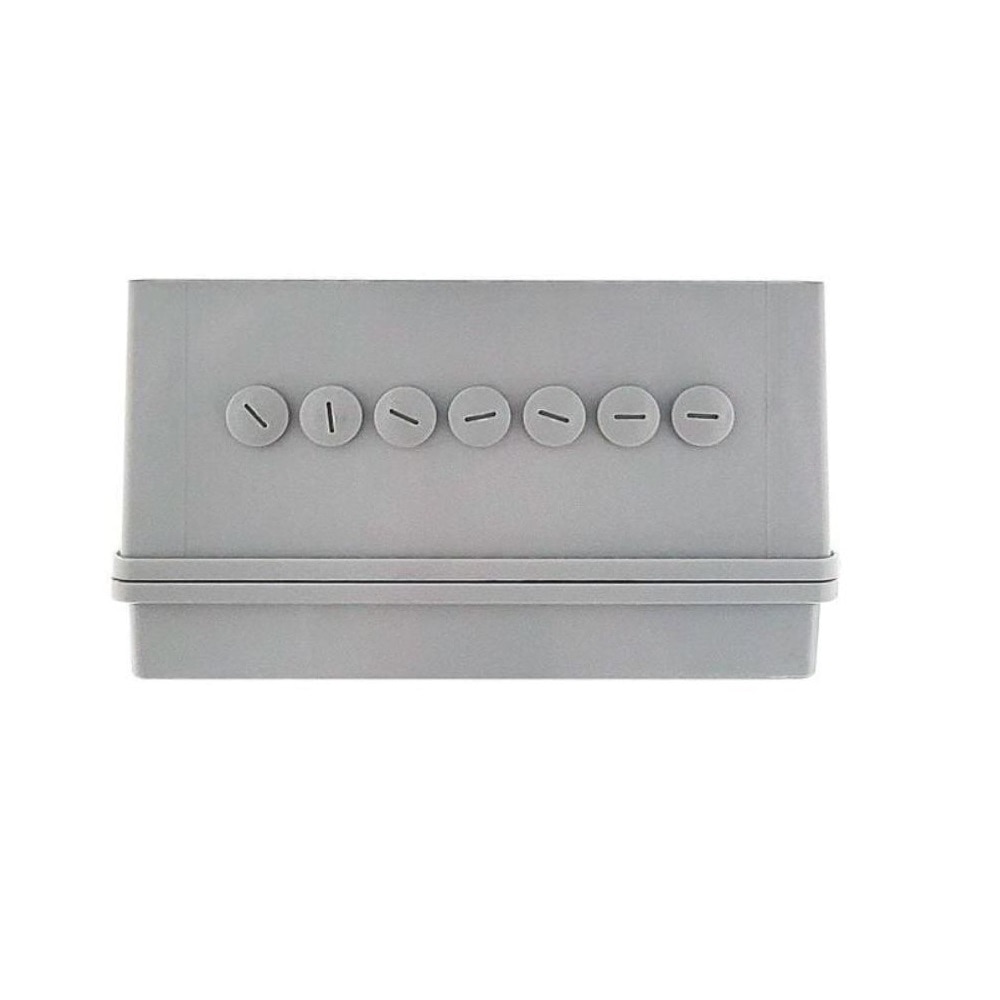

The enclosure comes with seven 20mm holes with weatherproof plugs. The holes can be used as feedthroughs for cables and wire by using appropriate cable glands or conduit fittings. The enclosure is UV protected polycarbonate for long service life. All hardware is corrosion resistant.

Features:

• Weatherproof Nema 4X / IP65, UV resistant, outdoor enclosure
• Hinged Door with toggle clamp closures
• Gasket Sealed and Lockable, Combo Lock Included
• Universal perforated backplate for flexible interior mounting
• Seven Weatherproof 20mm holes & weatherproof plugs
• Wall and Pole Mountable (Includes Mounting Hardware)

Applications:

• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors Outdoor Utilities
• Solar and Wind Power
