Tycon Systems Maximum Power Point Tracking 12/24V 30A 20A Load Solar Charge Controller

Tycon Systems TP-SC24-30N-MPPT

Maximum Power Point Tracking 12/24V 30A 20A Load Solar Charge Controller

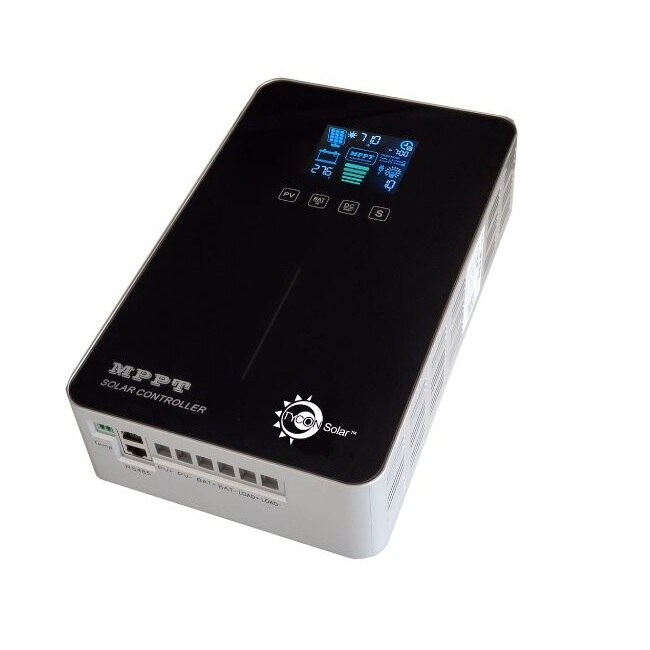

The Tycon Solar TP-SC24-30N-MPPT solar controller is a MPPT (Maximum Power Point Tracking) temperature compensated battery charging controller. The battery temperature probe cable is included. The controller is auto-ranging to accommodate 12V and 24V battery systems. It is designed to charge Sealed (AGM), GEL, Flooded, and Lithium batteries. It also has a USER setting for customizable battery charge settings. The solar controller has an integral color TFT LCD display that shows Battery Volts/Amps/Watts, Battery Level, Battery Temperature, Load Volts/Amps/Watts and Solar Volts/Amps/Watts. The display also shows the current time and charge mode (CC-Constant Current, CV-Constant Voltage and CF-Float Charge) or Standby (Running from battery). The display turns off automatically to save power. Tap the screen to turn on.

The solar controller has multiple load operating modes which can be set through the Mobile or PC app. On/Off Manual Mode, PV Voltage Control Mode, Dual-Time Control Mode, PV & Time Control Mode. Load modes are not settable from the front panel. Default is ON/Off Manual Mode.

The 20A load output has a soft start feature so it can smoothly and reliably power up high capacitance loads. The load can be turned on/off from the front panel or via the PC or Mobile Apps. They have full electronic protections for short circuit, reverse current, over-power, over-voltage, over-charge, over-discharge and over-temperature. The built-in over-discharge protection and low self-consumption ensures the battery is not over-discharged, which greatly increases the life of the batteries. All protections are auto-recovery.

The unit is protected against lightning strikes with TVS diode protection. It operates over a wide industrial temperature range.

Connections are via 6 screw terminals for wire size up to 4AWG. The controller is internally fused for protection, but we recommend always using an external fuse between the controller and the battery. There are four 3mm threaded holes for mounting permanently to a flat plate. There is also a bracket included for mounting to a wall or DIN rail using the Tycon #DINCLIPKIT-UNI DIN rail adapter bracket kit.

The MPPT controller can be connected via the RS485 interface for parallel operations, feeding multiple solar arrays into a single battery bank.

Features:

• MPPT Temp Compensated Charging (99.5% Efficient)
• Color LCD Displays: Battery/Load/Solar Volts/Amps/Watts, Battery
Temp, and Battery Level
• Fully Automatic Operation
• Auto-ranging 12V or 24V Battery Arrays
• Multimode Load Operation – 4 selectable modes
• Soft Start 20A Load Output to Power High Capacitive Loads
• TVS lightning protection, Industrial Temperature Range
• Low self-consumption <1W
• 12/24V Autodetect 20A MPPT Smart Temp Compensated Solar Charge Controller with Status Display and Load Control
• Detects 12V or 24V Battery and Automatically Adjusts, Supports WET AGM GEL Lithium and Custom Battery Charging
• Status Display Showing Solar Voltage, Solar Current, Battery Voltage, Battery Current, Load Current
• 20A Solar Input and 20A Negative Ground Load out
• Modbus Interface for Remote Monitoring and Control, DIN Rail Mounting Kit Included
