Tycon Systems TPDIN-POE-RELAY

TPDIN 18-57V PoE Powered Relay with Gigabit Data Passthrough

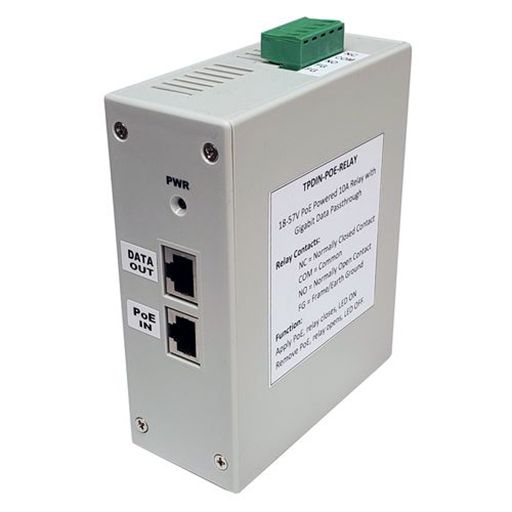

The Tycon Power TPDIN-POE-RELAY is a unique device that provides a way to control up to 10A of current from a managed PoE Switch or other PoE device. When PoE is applied to the TPDIN-POE-RELAY, the relay closes and the LED turns ON. When PoE power is removed, the relay turns off and the LED turns OFF.

There are two connections, a normally closed and a normally open, so that both relay logic states can be utilized.

Many modern PoE switches allow an operator to enable or disable the PoE on a particular port. This PoE switch function can be used to control the relay.

The unit features a Gigabit Data Passthrough with surge protection to protect the data connection up to 30KV.

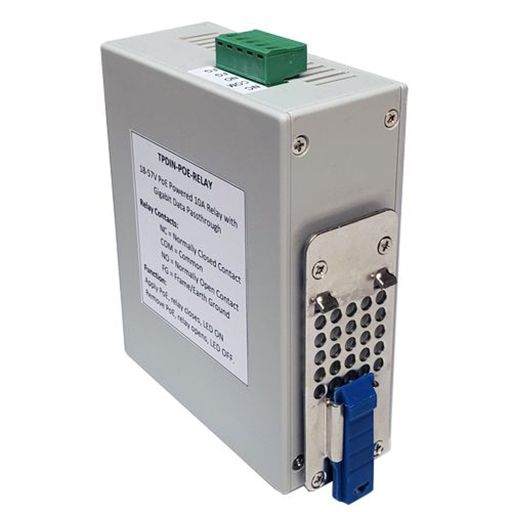

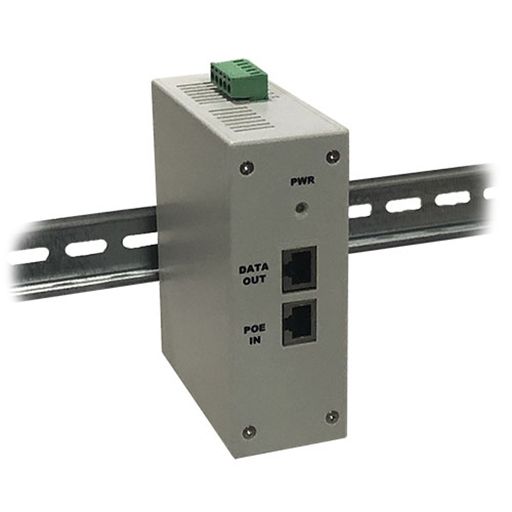

It mounts to a standard DIN Rail commonly used in industrial installations.


Features:

  • PoE Powered, No Other External Power Required
  • Accepts 802.3af/at/bt Class 0 PoE or 24V Passive PoE
  • Normally Open and Normally Closed 10A Relay Connections
  • Gigabit Data Passthrough with Surge Protection
  • Wide Operating Voltage Range: -40°C to +70°C
  • DIN Rail Mounting

Specifications

Specifications TPDIN-POE-RELAY

Relay TypeNO & NC 10A 30VDC/250VAC
Relay FunctionPoE ON- Relay Closed, LED ON PoE OFF – Relay Open, LED OFF
Data PassThrough10/100/1000Mbps
Data ProtectionPin to Pin (1-2, 3-6, 4-5, 7-8)
Clamp Voltage3.3V
ESD, IEC61000-4-2+/- 30KV contact and air
EFT, IEC61000-4-440A (5/50us)
Lightning, IEC61000-4-515A (8/20us)
PoE Input Requirements802.3af/at/bt Class 0 PoE or 24V Passive PoE
Self Consumption Power<1W
ConnectionsRemovable Wire Terminal
Wire Size12AWG Max
MountingDIN Rail
Operating Temperature-40°C to +70°C (-40°F to 158°F)
Humidity (RH)0% - 90%
Weight260g, 0.57 lbs
Dimension125 x 102 x 46mm (4.9” x 4” x 1.8”)
