Tycon Power UPSPro 24V 36Ah Battery Backup System, 48V 30W Passive PoE + 24V 1.5A Aux Output, 120/240VAC Power Supply, Pole/Wall Mount, Poly Enc

Tycon Power UPS-PL2448-36

UPSPro 24V 36Ah Battery Backup System, 48V 30W Passive PoE + 24V 1.5A Aux Output, 120/240VAC Power Supply, Pole/Wall Mount, Poly Enc

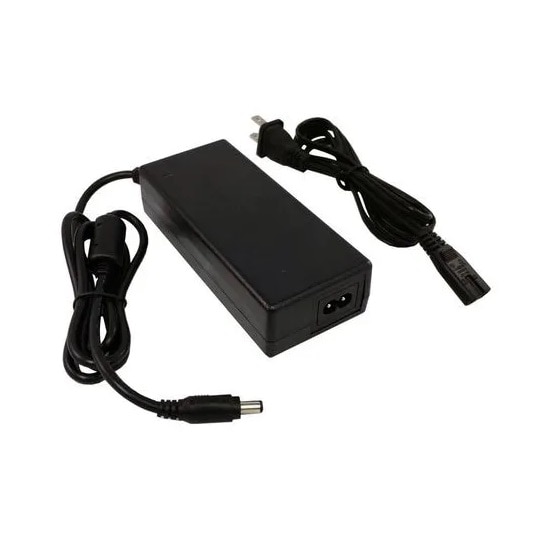

The UPSPro® series outdoor systems from Tycon Power® are meticulously designed for applications requiring a reliable backup power source to maintain uninterrupted service in the event of an AC power failure. These robust systems ensure your equipment remains operational during power outages by delivering power over a CAT5 network cable through Power over Ethernet (PoE) using the included Power Supply and PoE Inserter. Consequently, your equipment continues to function, providing peace of mind and continuous service.

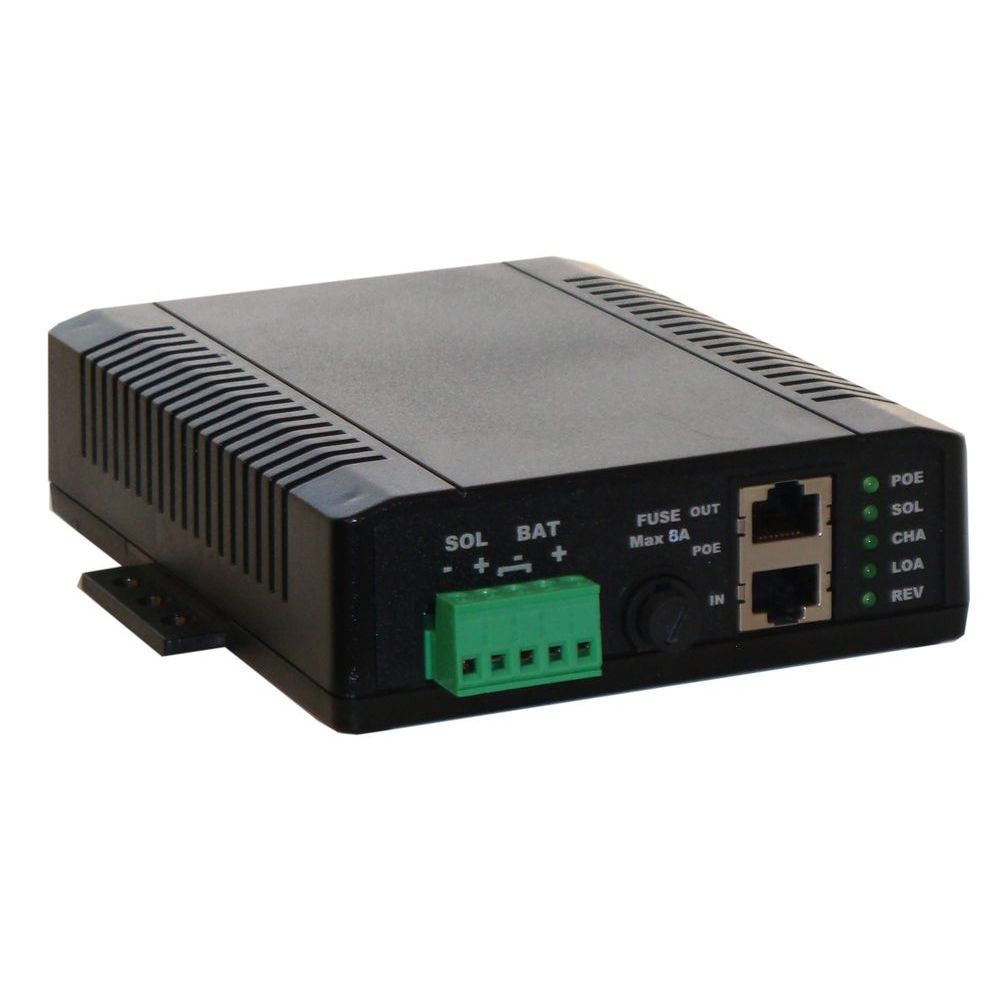

Advanced Battery Charge Controller

Protection Against Over-Charging and Over-Discharging: The advanced battery charge controller is a key feature of the UPSPro series. It safeguards the valve-regulated sealed lead acid AGM batteries from over-charging and over-discharging. This protection significantly extends the lifespan of the batteries, ensuring reliable performance over time.

Flexible and Safe Enclosures

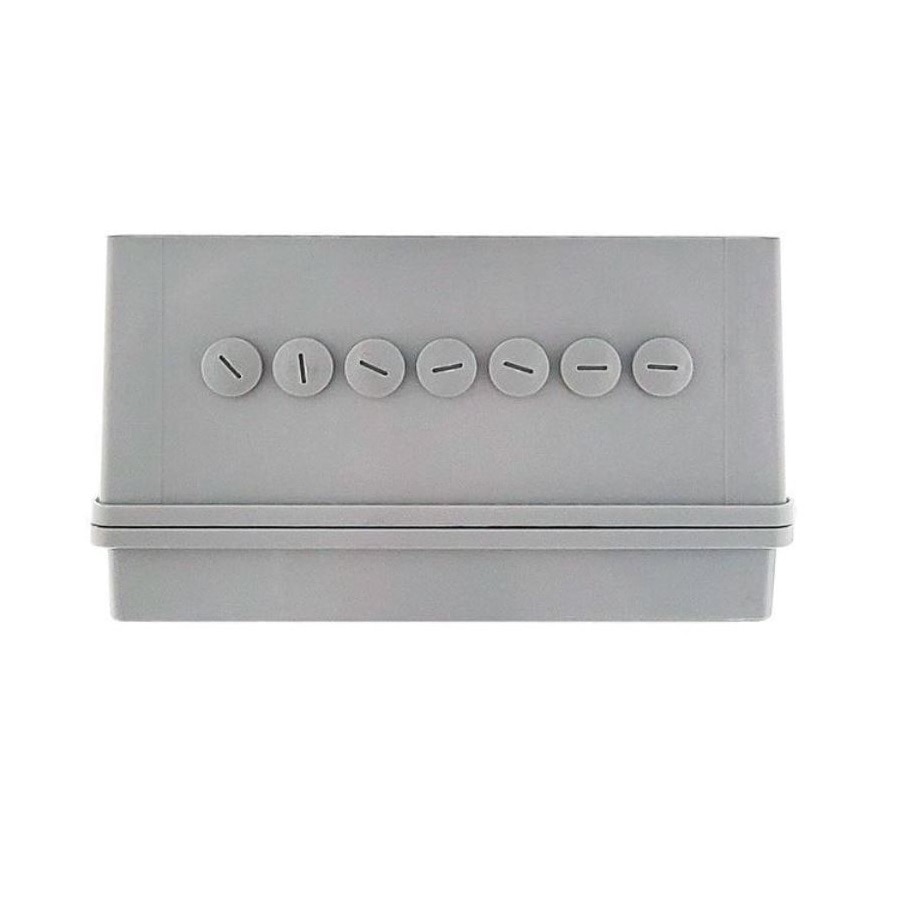

Multiple Ports for Cabling Needs: The enclosures are designed with multiple ports for CAT5 cables, antenna cables/connectors, and other cabling, providing flexibility for various wiring needs. Moreover, the vented design prevents the residual buildup of hydrogen gas, ensuring safe and efficient operation. This thoughtful design enhances the overall safety and functionality of the system.

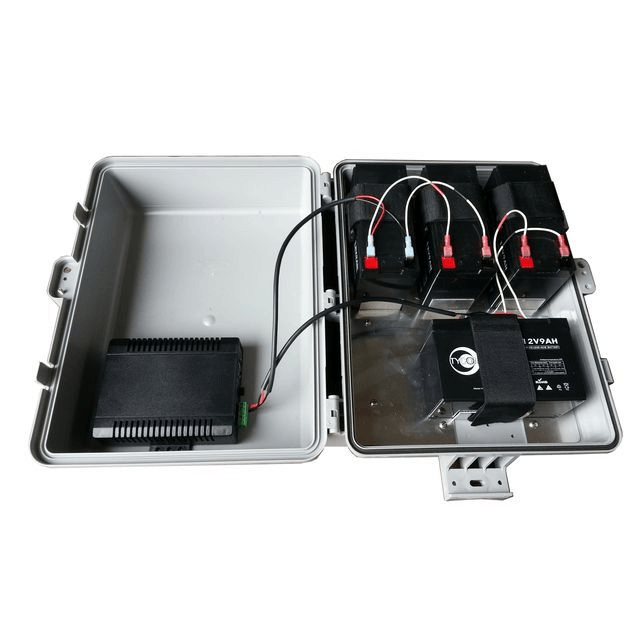

Space for Customer Electronics

Integration of Additional Equipment: Inside the enclosures, there is ample space for customer electronics such as controllers, wireless access points (AP), customer premises equipment (CPE) cards, sensors, inverters, and more. This space allows for the seamless integration of additional equipment, making the UPSPro series a versatile solution for various applications. Running equipment on battery power isolates it from power line surges, a common cause of outdoor equipment failure, thereby enhancing the reliability of the system.

Solar Ready Controller

Flexible Power Sources: Models in the UPSPro series feature a Solar Ready controller, enabling them to be powered using solar panels in addition to or instead of the AC Power Supply and PoE Inserter. This feature provides flexibility in power sources, ensuring continuous operation even in remote or off-grid locations. By utilizing solar energy, you can ensure your systems remain operational regardless of external power conditions.

Efficient and Reliable Performance

Backup Power for Critical Equipment: A typical 250mW wireless access point with an average power consumption of 3.5W can run for 24 hours on an 8.5Ah battery at room temperature or 16 hours at -20°C. This efficiency and reliability demonstrate the capability of the UPSPro series to provide backup power for critical equipment, ensuring continuous and reliable service.

Features:

• Uninterruptible Power System

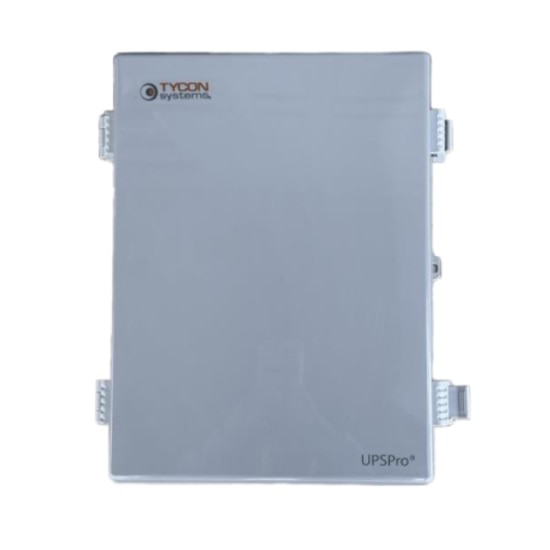

• Weatherproof, UV resistant, outdoor enclosures
• Powered over CAT5 cable using Passive POE and/or Solar
• Generous interior space for customer electronics

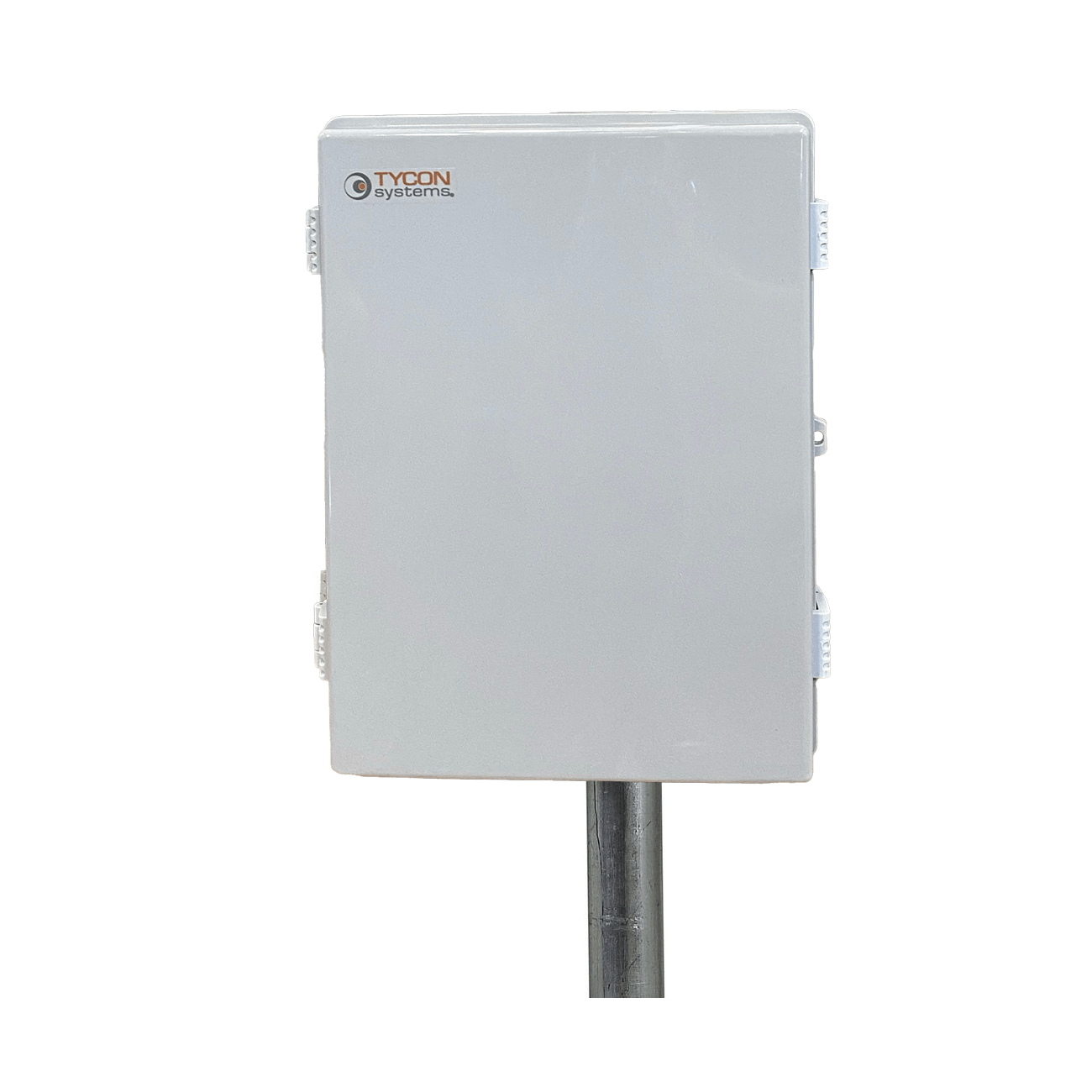

• Wall or Pole Mounting
• Isolates Customer Equipment from Power Line Surges

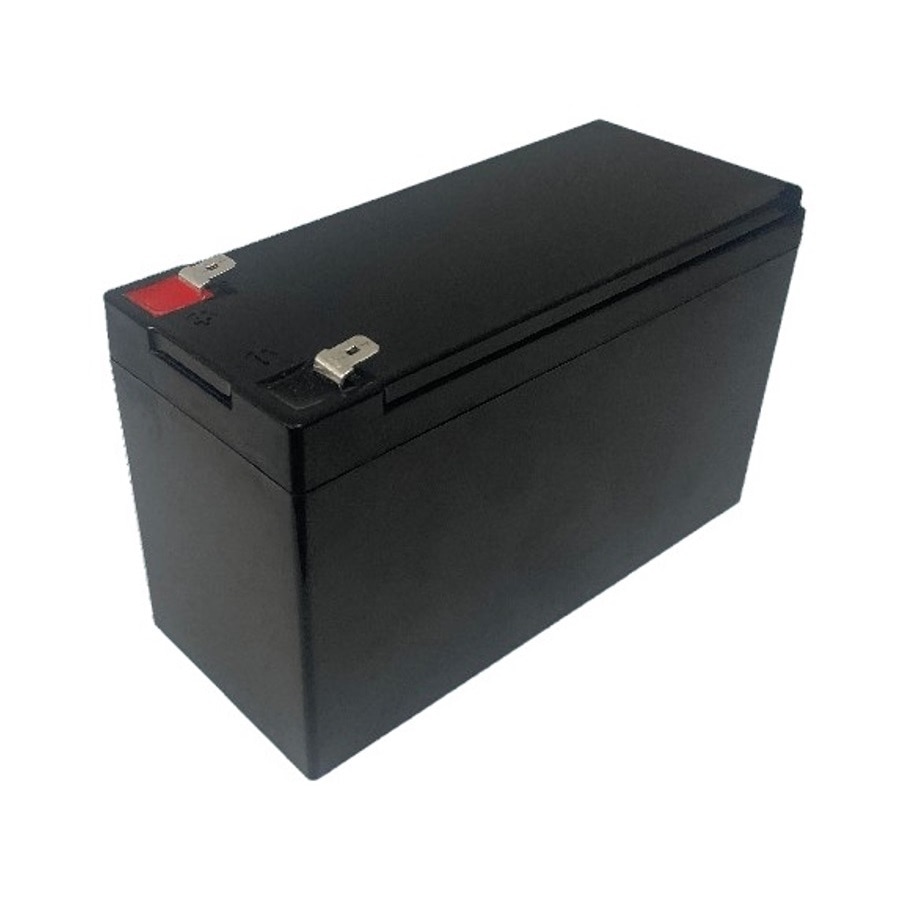

• High Quality AGM VR Sealed Lead Acid Batteries
• Advanced battery charge controller protects against overcharge and over discharge

Applications:

• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Mission critical outdoor power
• Backup Power Systems
