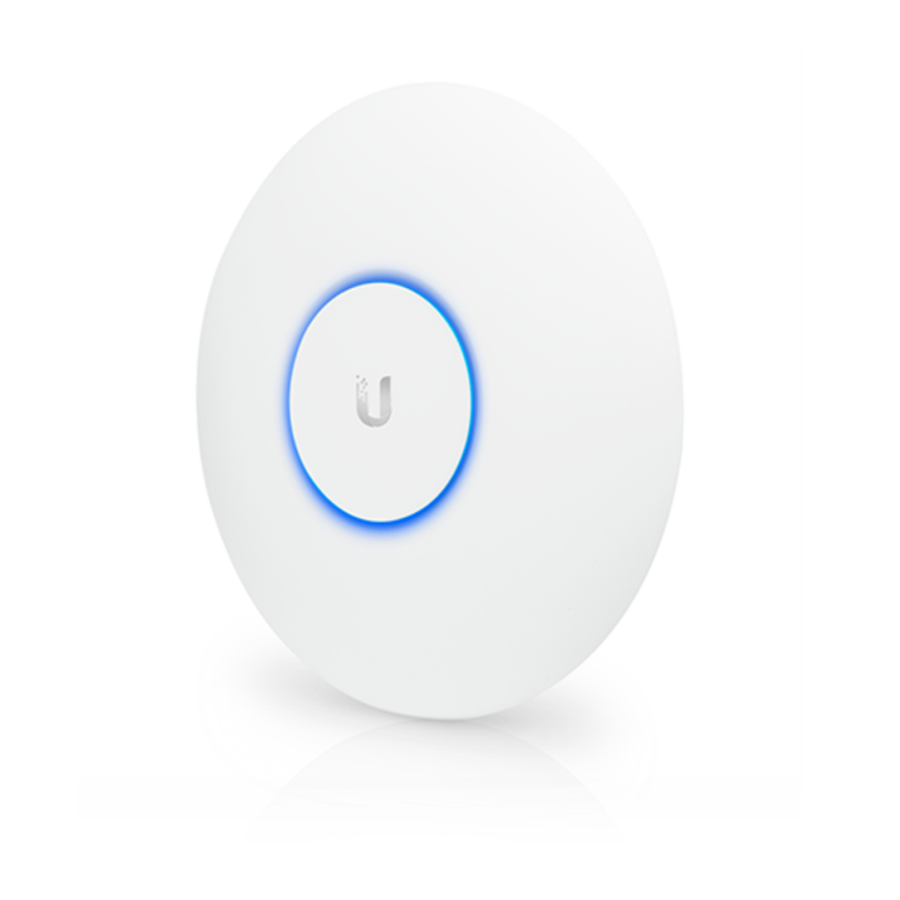

Ubiquiti UniFi AC Access Point - 802.11ac 3x3 MIMO (5-Pack)
- SKU: UAP-AC-PRO-5-US
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

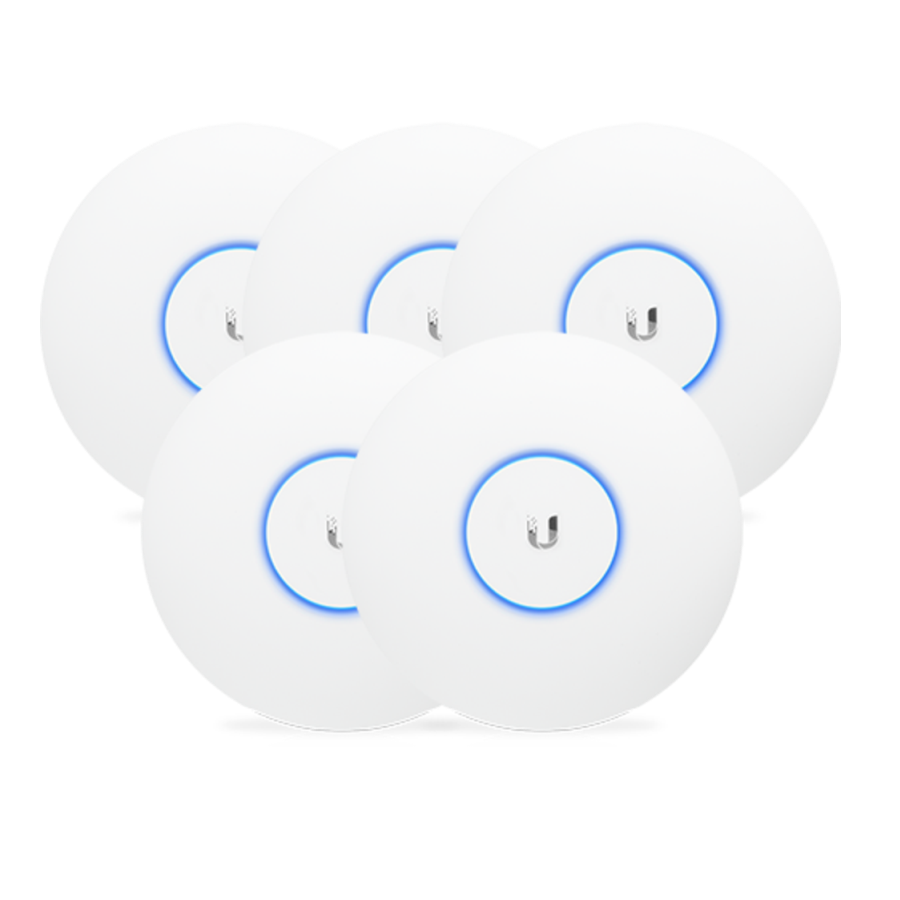

Ubiquiti Networks UAP‑AC‑PRO UniFi AC 5-Pack (POE Injectors/Power Supply Not Included)
***The 5-Pack does NOT Include POE Injectors/Power Supply***
- WiFi 5
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 250+ connected devices
- Powered using PoE*
- GbE uplink
Up to 5X Faster with Dual-Radio 3x3 11AC MIMO Technology
The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.
Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance:
Versatile Design
The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use. You can easily replace a standard UniFi AP using the same mounting hardware.
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Specifications
| Dimensions | 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38") |
| Weight With Mounting Kits | 350 g (12.4 oz) 450 g (15.9 oz) |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Port | (1) USB 2.0 Port |
| Buttons | Reset |
| Antenna | (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC) |
| Power Supply | 48V, 0.5A PoE Gigabit Adapter* (NOT INCLUDED) |
| Maximum Power Consumption With Optional Accessory | 9W 20W |
| Maximum TX Power 2.4GHz 5GHz | 22 dBm 22 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| Standard | Data Rates |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
