Ubiquiti AirFiber 2X 2GHz Carrier Backhaul
- SKU: AF-2X-US
- Manufacturer: Ubiquiti Networks
- Data sheet: Download
Product Information
AirFiber 2X AF-2X 2GHz Carrier Backhaul

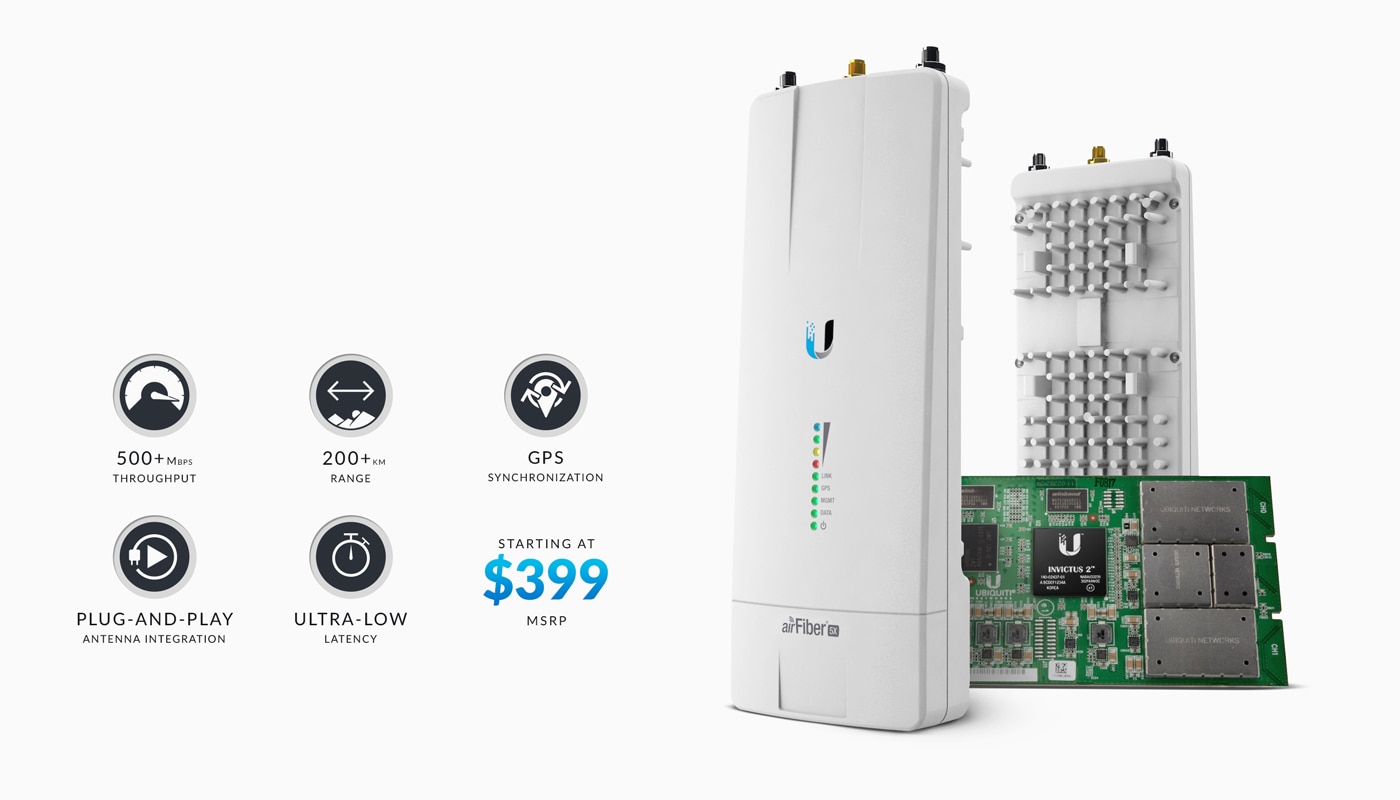

Engineered for Performance
Ubiquiti’s INVICTUS™custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

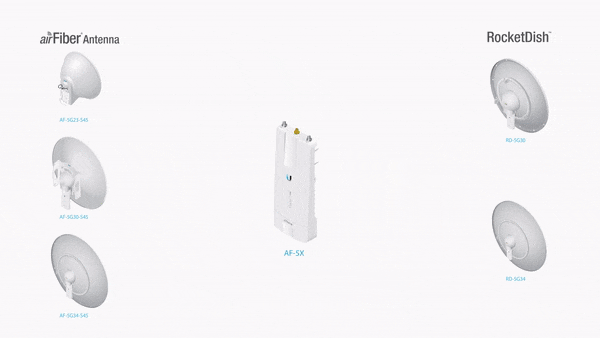

Deployment Flexibility
The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket™link that uses a RocketDish™RD‑5G30/RD‑5G34* antenna.

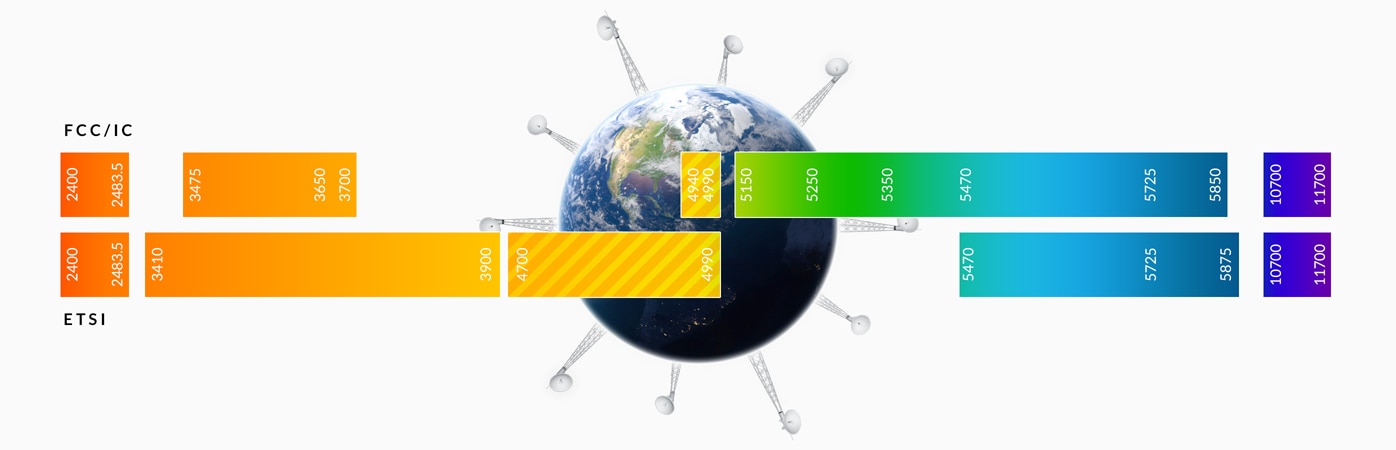

Carrier Backhaul for the World
Deploy the 2.4, 3, or 5 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.

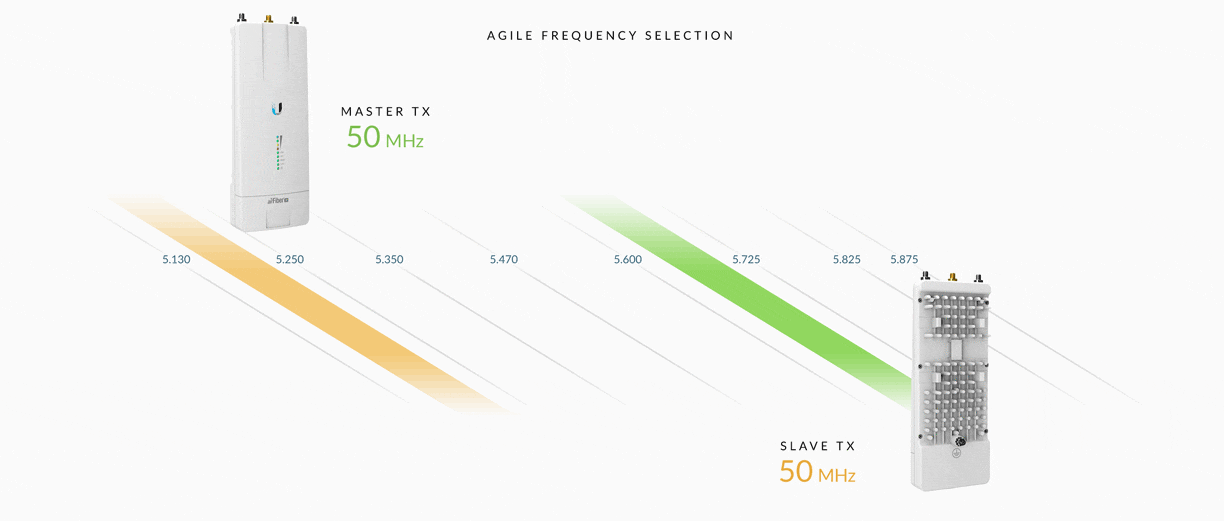

Optimal Operation and Channel Configuration
Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

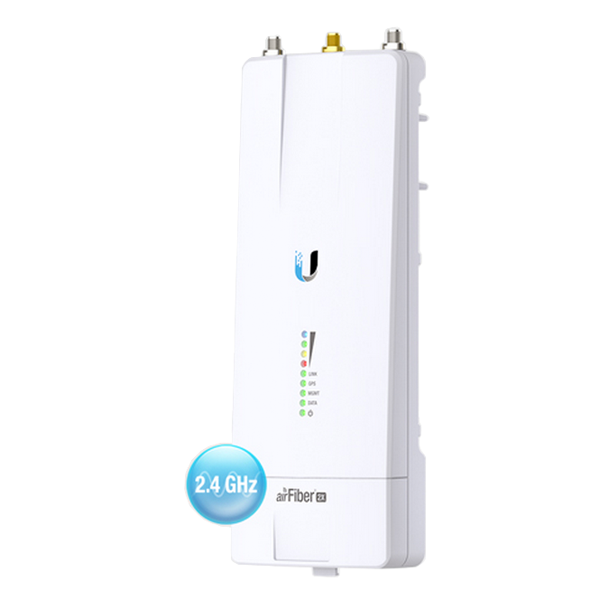

2.4 GHz
The 2.4 GHz frequency band is free to use, worldwide; and with its proprietary protocol, the AF‑2X increases both range and delivered throughput in this popular band.
Specifications
Specifications AF-2X
Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
Weight | 0.35 kg (0.77 lb) |
RF Connectors | (2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
GPS Antenna | External, Magnetic Base |
Power Supply | 24V, 1A PoE Gigabit Adapter (Included) |
Power Method | Passive Power over Ethernet |
Max Power Consumption | 17W @ Max. Power/Duty Cycle |
Supported Voltage Range | 19-29VDC |
Mounting | Rocket Mount Compatible GPS Pole Mount (Included) |
Certifications | FCC Part 15.247, CE EN 300328 v1.8.1 |
Operating Temperature | -40 to 55° C (-40 to 131° F) |

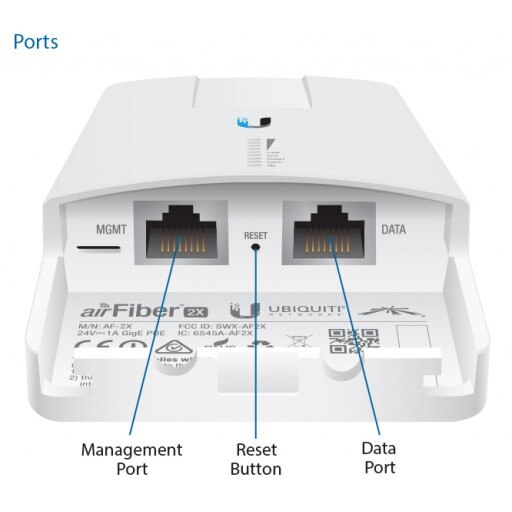

AF-2X Networking Interface
Data Port | (1) 10/100/1000 Ethernet Port |
Management Port | (1) 10/100 Ethernet Port |
AF-2X System
Processor | INVICTUS IC |
Maximum Throughput | 525 Mbps |
Maximum Range | 200+ km1 |
Encryption | 128-bit AES |
OS | airOS F |
Wireless Modes | Master/Slave |
AF-2X Radio
Frequency Range | 2400-2500 MHz (Depends on Regulatory Region) |
Max. Conducted TX Power | 29 dBm (Depends on Regulatory Region) |
Frquency Accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
Channel Bandwidth | 10/20/30/40/50 MHz Selectable Programmable Uplink and Downlink Duty Cycles |
