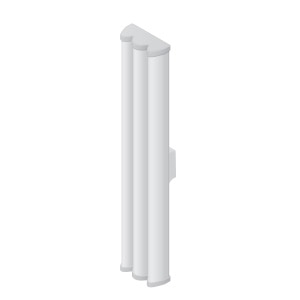

Ubiquiti airMAX® ac 2x2 BaseStation Sector Antenna 5 GHz, 22 dBi

(0)No Reviews yet
  • SKU: AM-5AC22-45
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Start Guide:Download

Out of Stock

Call for Availability

Product Information

Ubiquiti Networks AM-5AC22-45

airMAX® ac 2x2 BaseStation Sector Antenna

The airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Breakthrough Design and Performance

The airMAX® ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

Superior Noise Immunity

Featuring reduced sidelobes and backlobes, the airMAX® ac Sector Antennas are engineered to reject noise interference in co‑location deployments.

Market-Leading Beam Performance

Compare the diagram of the airMAX® ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.

Industrial-Strength Construction

airMAX® ac Antennas are designed with robust mechanical design for outdoor application use.

Plug and Play Integration

Every airMAX® ac Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.


Specifications AM-5AC22-45

Dimensions750 x 215 x 94 mm (29.53 x 8.47x 3.70")
Weight6 kg (13.23 lbs)
Frequency Range5.10 - 5.85 GHz
Gain22 dBi
HPOL Beamwidth45° (6 dBi)
VPOL Beamwidth45° (6 dBi)
Electrical Beamwidth
Electrical Downtilt
Max. VSWR1.5:1
Wind Survivability200 km/h (125 mph)
Wind Loading347 N @ 200 km/h (78 lbf @ 125 mph)
Cross-Polarization Isolation30 dB Min.
ETSI SpecificationEN 302 326 DN2
