Ubiquiti Airmax 2.3-2.7GHZ Hi-Gain Base Station Antenna, Dual-Pol 120-Degree 15DBI
- SKU: AM-2G15-120
US$139.00
Product Information

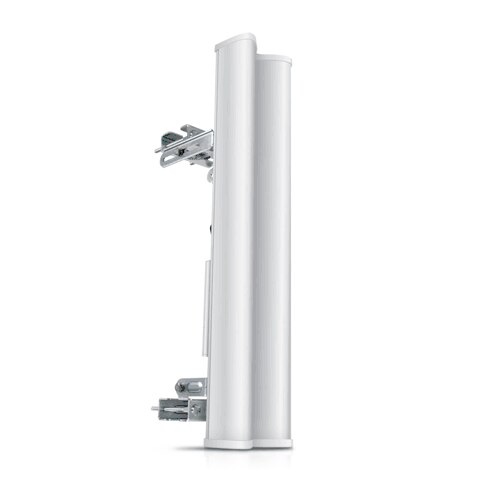

Ubiquiti Networks AM-2G15-120
Airmax 2.3-2.7GHZ Hi-Gain Base Station Antenna, Dual-Pol 120-Degree 15DBI
AirMax BaseStation 2.4GHz Sector
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M2 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M Seamlessly Integrates with AirMax BaseStation Sectors
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Specifications
Specifications AM-2G15-120
| Frequency Range | 2.3-2.7 GHz |
| Gain | 15.0-16.0dBi |
| Polarization | Dual Linear |
| Cross-pol Isolation | 28dB min |
| Max VSWR | 1.5:1 |
| Hpol Beamwidth (6dB) | 123 deg. |
| Vpol Beamwidth (6dB) | 118 deg. |
| Elevation Beamwidth | 9 deg. |
| Dimensions | 27.6x5.7x3.7in (700x145x93mm) diameter |
