Ubiquiti airMax 5.1-5.9GHZ Mid-Gain Base Station Antenna, Dual-Pol 120-Degree 16DBI

(0)No Reviews yet
  • SKU: AM-5G16-120
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Start Guide:Download
3 in stock
College Station
1 In stock
Mississippi
2 In stock

Product Information

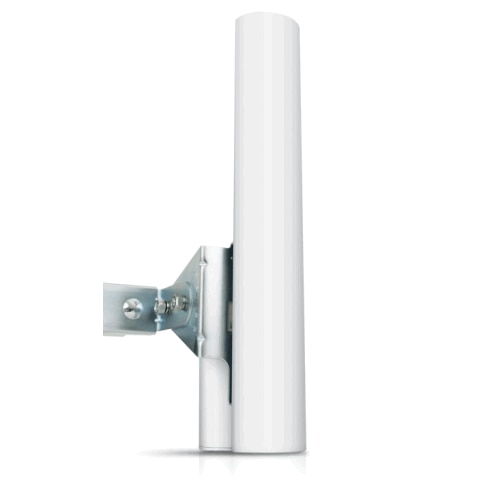

Ubiquiti Networks AM-5G16-120

Ubiquiti Airmax 5.1-5.9GHZ Mid-Gain Base Station Antenna, Dual-Pol 120-Dedree 16DBI

AirMax BaseStation 5GHz Sector

World Class Antenna Designs
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Rocket M Seamlessly Integrates with AirMax BaseStation Sectors

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specifications

Specifications AM-5G16-120

Frequency Range5.10-5.90 GHz
Gain15.0-16.0dBi
PolarizationDual Linear
Cross-pol Isolation22dB min
Max VSWR1.5:1
Hpol Beamwidth (6dB)137 deg.
Vpol Beamwidth (6dB)118 deg.
Elevation Beamwidth8 deg.
Electrical Downtilt4 deg.
