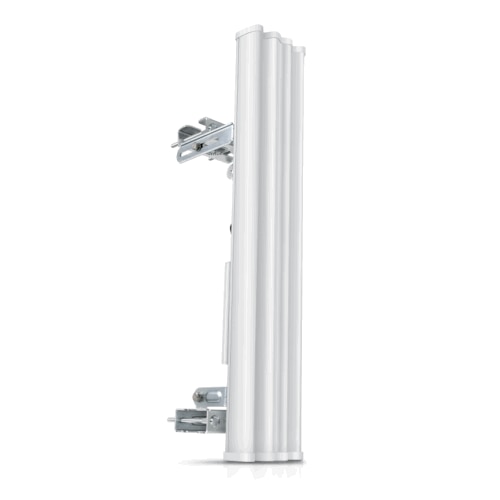

Ubiquiti AirMax 5.15-5.85GHZ Hi-Gain Base Station Antenna, Dua-Pol 90-Degree 20DBI

(0)No Reviews yet
  • SKU: AM-5G20-90
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Start Guide:Download

Out of Stock

Call for Availability

Product Information

Ubiquiti Networks AM-5G20-90

Ubiquiti AirMax 5.15-5.85GHZ Hi-Gain Base Station Antenna, Dua-Pol 90-Degree 20DBI

AirMax BaseStation 5GHz Sector World Class Antenna Designs Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Rocket M Seamlessly Integrates with AirMax BaseStation Sectors Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specifications

Specifications AM-5G20-90

Frequency Range5.15-5.85 GHz
Gain19.4-20.3dBi
PolarizationDual Linear
Cross-pol Isolation28dB min
Max VSWR1.5:1
Hpol Beamwidth (6dB)91 deg.
Vpol Beamwidth (6dB)85 deg.
Elevation Beamwidth4 deg.
Electrical Downtilt2 deg.
