Ubiquiti 2.4/5GHz Bullet Dual-Band AC US Version
Product Information
Ubiquiti B-DB-AC-US
2.4/5GHz Bullet Dual-Band AC US Version
US Version Ubiquiti B-DB-AC Bullet Dual-Band AC airMAX ac Bullet Radio with Dedicated WiFi Management 802.11ac, 2.4/5 GHz, Dual-band, 22dBm ouput power, PoE, N-type Male Features: - Dual-Band airMAX ac Processor - Dedicated Wi-Fi for UMobile Easy Setup - Powered by Gigabit PoE - N-Type Antenna Connector Supported by UMobile and airOS 8.1
Specifications
Specifications B-DB-AC-US

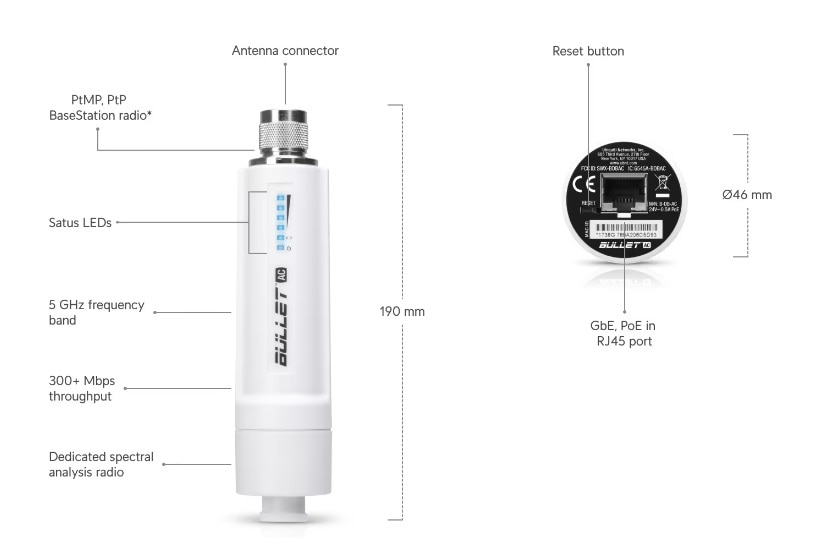

| Dimensions | 190 x 46 mm (7.48 x 1.81") |
| Weight | 196 g (6.91 oz) |
| Enclosure | Powder-Coated Aluminum |
| Networking Interface | 1x Gigabit Ethernet |
| Antenna Connector | N-Type Connector |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Throughput | 2.4 GHz - 160+ Mbps 5 GHz - 300+ Mbps |
| Operating Frequency (MHz) | USA: 2412 - 2462, 5725 - 5850 Worldwide 2412 - 2472, 5150 - 5875 |
| Max. Power Consumption | 8W |
| Output Power | 22 dBm |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Temperature | -40 to 70°C |
| Operating Humidity | 5 to 95%, no condensing |
| Certifications | CE, FCC, IC |
