Ubiquiti EdgePower Modular DC Power Supply
- SKU: EP-54V-150W
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti EP-54V-150W
EdgePower EP-54V-150W Modular DC Power Supply
The Ubiquiti EdgePower EP-54V-150W is a high-power, modular PSU system designed to connect to EdgePoint™ routers/switches and provide reliable power to attached PoE devices.
Versatile, Modular Design

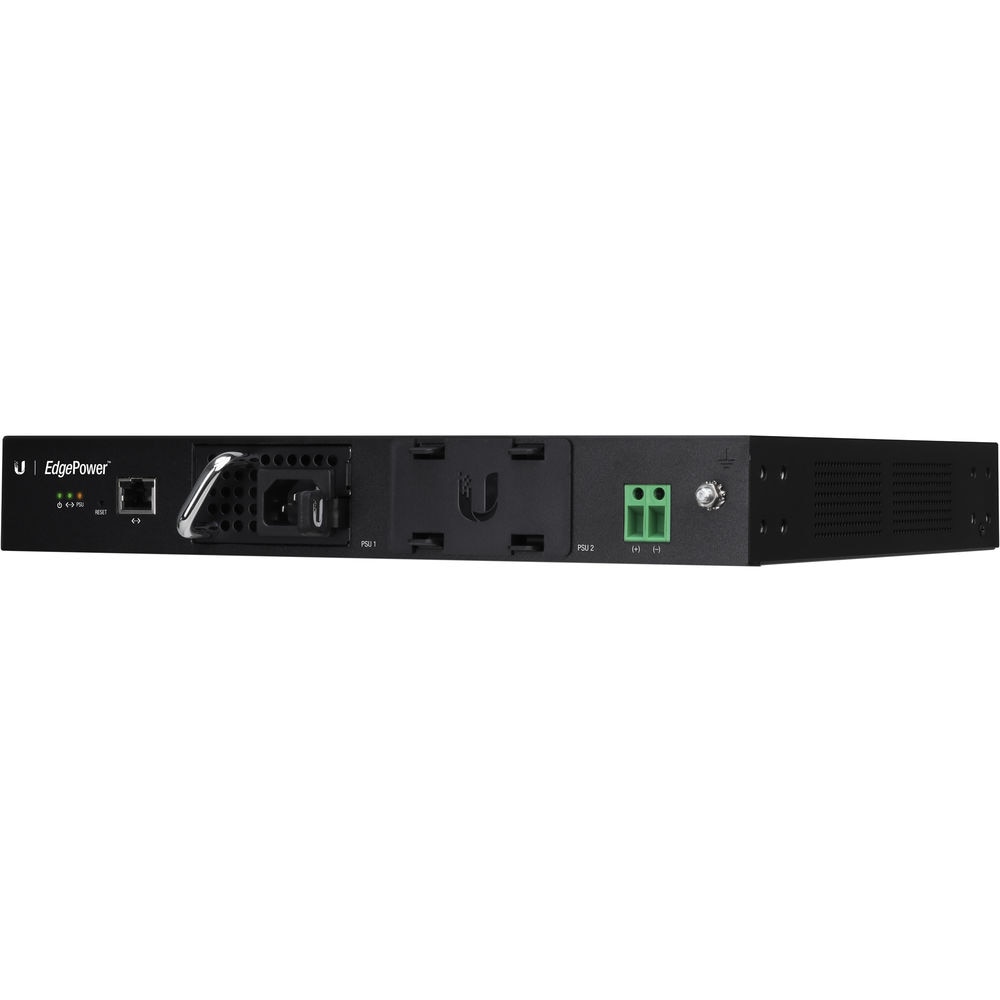

The rack-mountable EdgePower features two PSU bays. One 54V, 150W AC-DC module is included, and an optional AC-DC or DC-DC module is available.
Modular DC Power Supply for EdgePoint
The EdgePower EP-54V-150W Modular DC Power Supply for EdgePoint is a high-power,modular PSU system designed to connect to EdgePoint routers/switches and provide reliable power to attached PoE devices.The EdgePower uses modular PSUsfor flexible configuration options. The EdgePower can utilise two modular PSUsto provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup
High Power
The Edge Power provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower maybe configured to deliver up to 300W of power.
Backup PSU
The secondary PSU may be configured as a backup PSU. In backup mode,the secondary PSU remains inactiveand offline. If failure of the primary PSU is detected, the secondary PSUautomatically activates to supply continuous power.
Web UI
Designed for convenient management,the EdgePower Configuration Interface allows administrators to configureand monitor PSU features in a simple, graphical user interface.The EdgePower may be connected to the LAN for remote monitoring and configuration.
EdgePower Tower Deployment Example
Remote Monitoring and Configuration
Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface.
Outdoor DC Power Cabling
Manufactured to engineering specifications to supply reliable power to your EdgePoint devices. Available in 1000 ft. reels.
Specifications
Specifications EP-54V-150W
| Dimensions without Mount Brackets | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675") |
| Weight without Mount Brackets | 2.7 kg (5.95 lb) |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply Module | 54V, 150W AC/DC, Model EP-54V-150W-AC, Installed in PSU 1 |
| Maximum Power Output | 150W (1 PSU Module) 300W (2 PSU Modules @ 150W Each) |
| LEDs Power, Ethernet, PSU | System On/Off Management Port Link PSU1+PSU2, PSU1/PSU2 |
| Networking Interface | (1) 10/100 RJ45 Ethernet |
| Management Interface | Ethernet In-Band, Web UI |
| Rack-Mount | Yes, 1U High |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% RH |
| ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
| Certifications | CE, FCC, IC |
