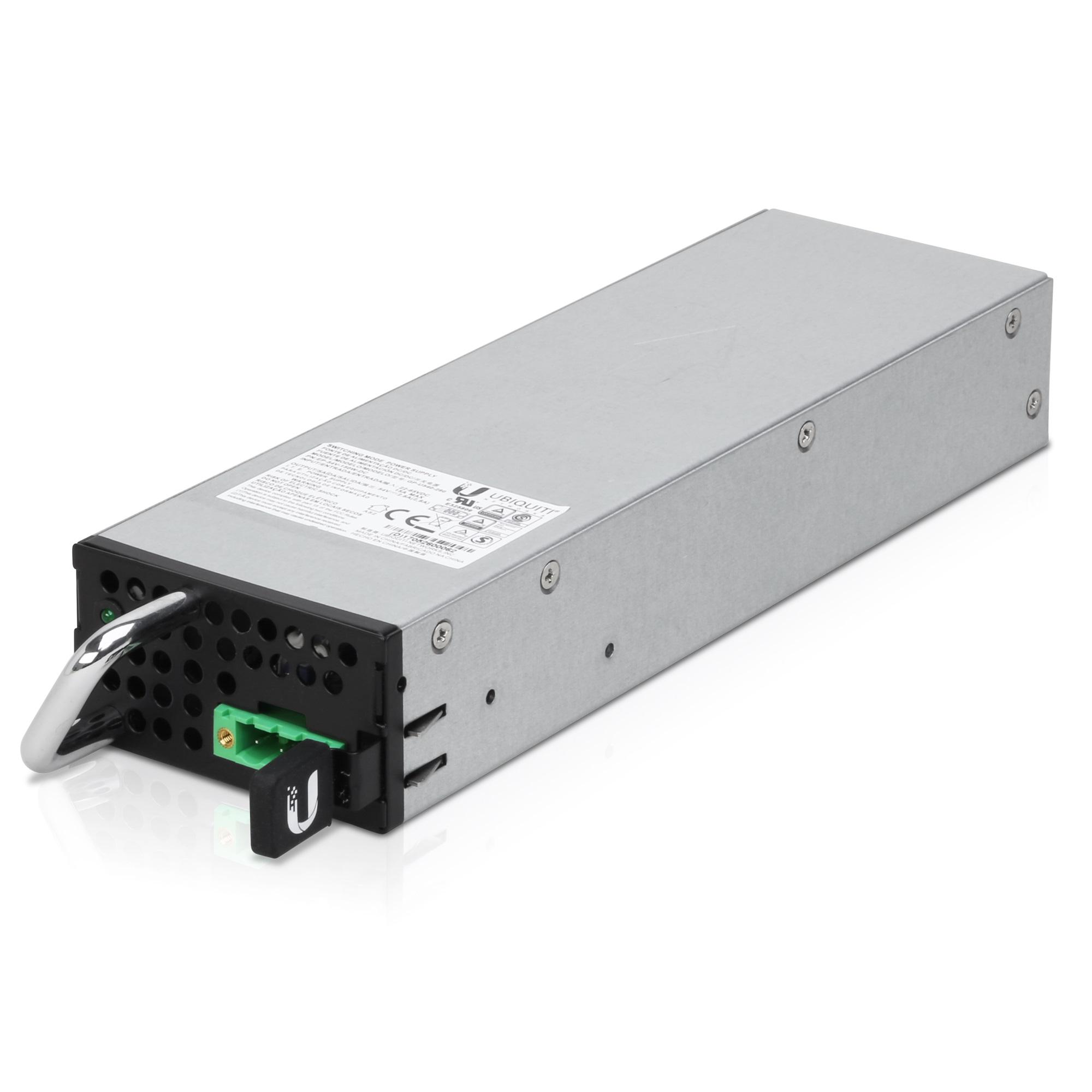

Ubiquiti EdgeMax 54V, 150W DC to DC PSU Module
- SKU: EP-54V-150W-DC
Product Information
Ubiquiti EP-54V-150WDC
EdgeMax 54V, 150W DC to DC PSU Module
EP-54V-150WDC Secondary AC PSU Module from Ubiquiti Networks it is possible to double the power output of the EdgePower EdgePoint DC Power Supply unit. With a total of 300 watts of power the PSU can then power EdgePoint routers and switches and even provide power to connected PoE equipment. The on-board power can also be divided in half using 150 watts of power for network equipment and the other 150 watts as redundant power should the initial PSU fail. The secondary PSU module is also hot swappable eliminating the need to power down the system when replacing modules.
High Power
The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.
Backup PSU
If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.

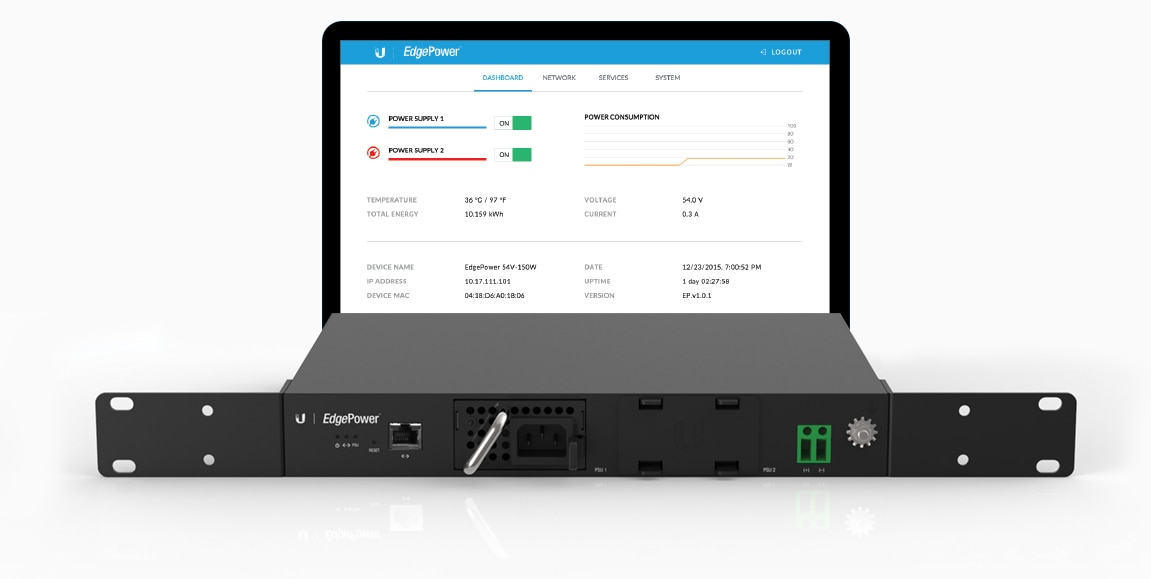

Remote Monitoring and Configuration
Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface.
Specifications
Specifications EP-54V-150W-DC
| Dimensions | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675") |
| Power method | DC/DC 150W for 22–60V input, DC terminal block for 54V output |
| Power supply | DC/DC 150W for 22–60V input |
| Voltage range | DC/DC for 22–60V input, 54V output |
| Battery type | 2/3/4 series lead acid battery |
| Maximum charging voltage 2 series 3 series 4 series | 26.8–27.5V 40.2–41.2V 53.6–55V |
| Discharge protection voltage 2 series 3 series 4 series | 21.5V 32V 43V |
| Charging current 2 series 3 series 4 series | 0.3A 0.3A 0.2A |
| LED | System On/Off |
| ESD/EMP protection | Air ± 8kV; contact ± 6kV |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
