Ubiquiti EdgePoint, intelligent WISP Control Point with FiberProtect
Product Information
Ubiquiti Networks EP-R6

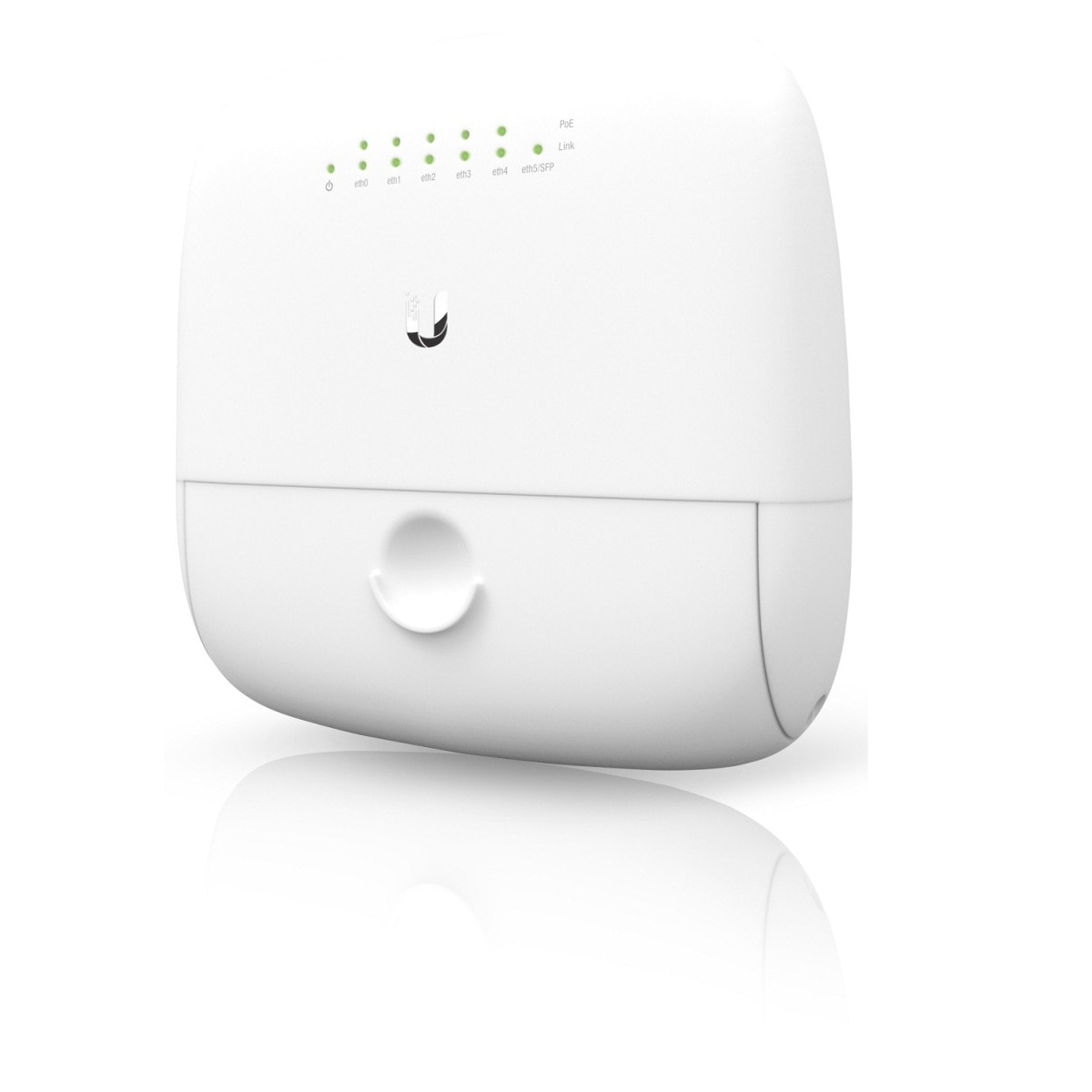

EdgePoint, intelligent WISP Control Point with FiberProtect
Ubiquiti Networks introduces the EdgePoint, part of the EdgeMAX platform. The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities.
Breakthrough in Tower Deployment
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
Purpose-Built for WISP Control
The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX® with fiber backhaul and versatile powering capabilities.
All-in-One Design
A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.
Advanced Routing Applications
Powerful routing features – such as link balancing – provide redundancy and increased performance for outdoor wireless links.
Specifications
Specifications EP-R6
| Dimensions | 188.6 x 177.1 x 49.8 mm (7.43 x 6.97 x 1.96") |
| Weight | 605 g (1.33 lb) |
| Max. Power Consumption | 7W (Excludes PoE Output) |
| Power Input | (1) DC Terminal Block or (1) RJ45 (eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs) |
| Power Supply | Min. 24V / 0.3A (Excludes PoE Output Power) |
| VDC Input | 24V, 3A |
| Passive PoE Input | (1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 (Do NOT Configure eth0 in PoE Output Mode if You Are Using a PoE Input Power Source.) |
| Passive PoE Output | (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4 |
| Power Monitoring | (1) DC Terminal Block, Input Power (1) RJ45, eth0, Input Power |
| Supported Voltage Range | 26 to 16VDC |
| Button | Reset |

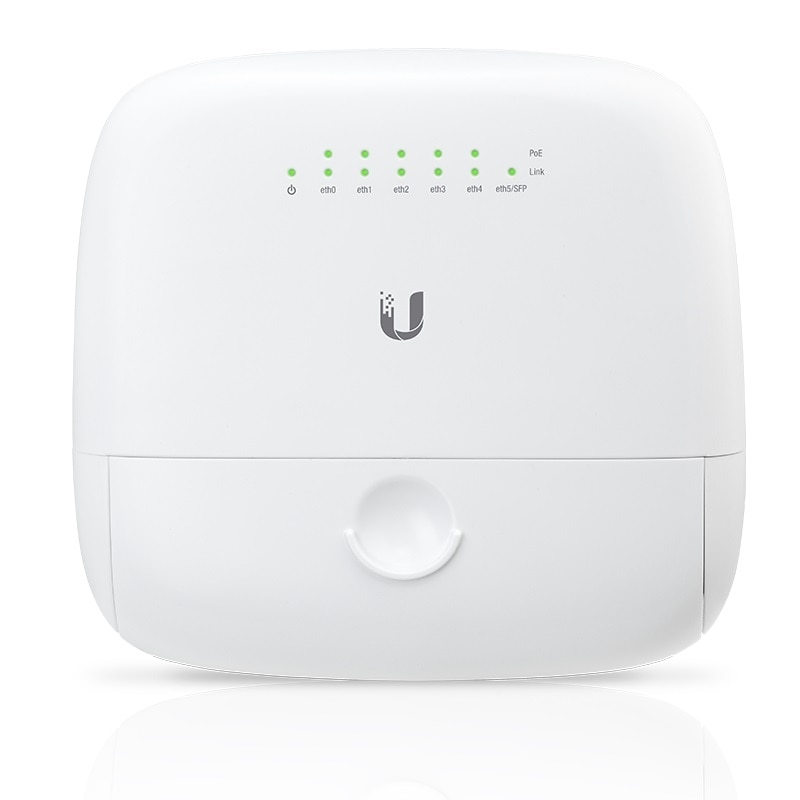

| LEDs | System eth0 to eth4 eth5/SFP Power Speed/Link/Activity, PoE Speed/Link/Activity |

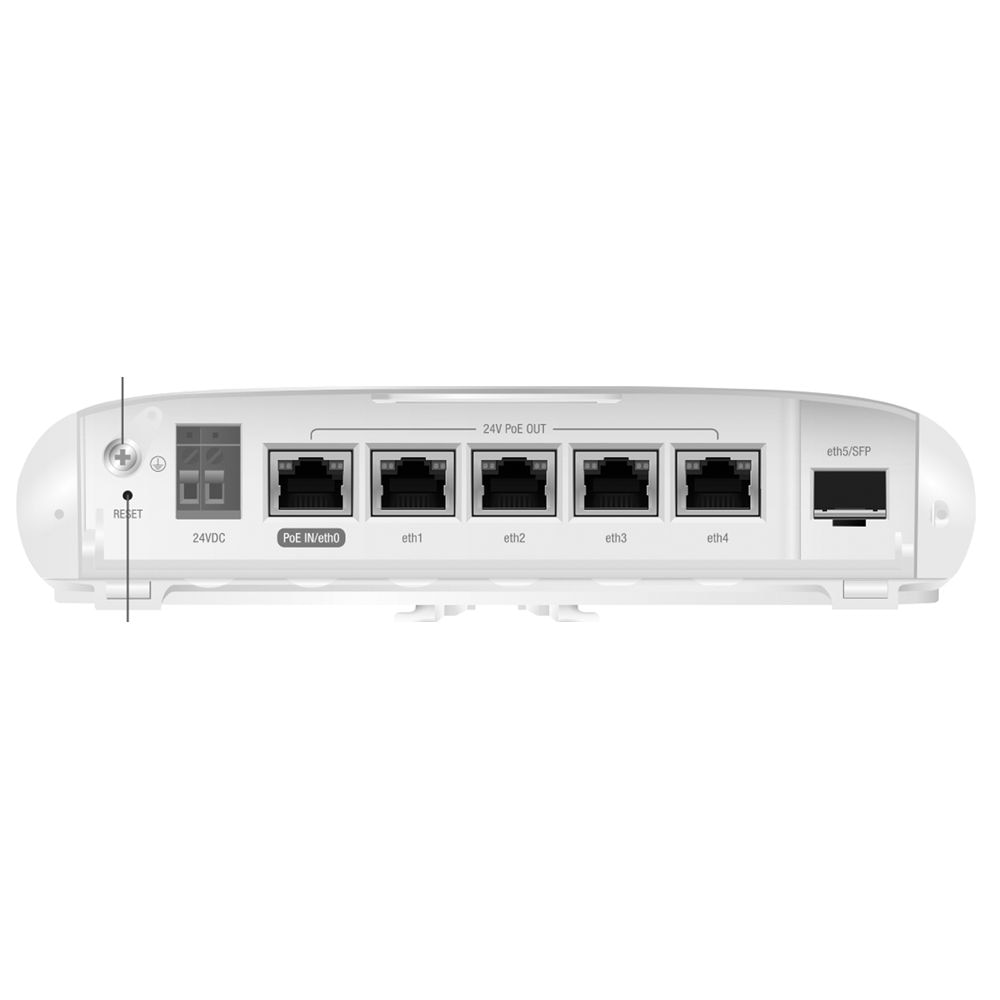

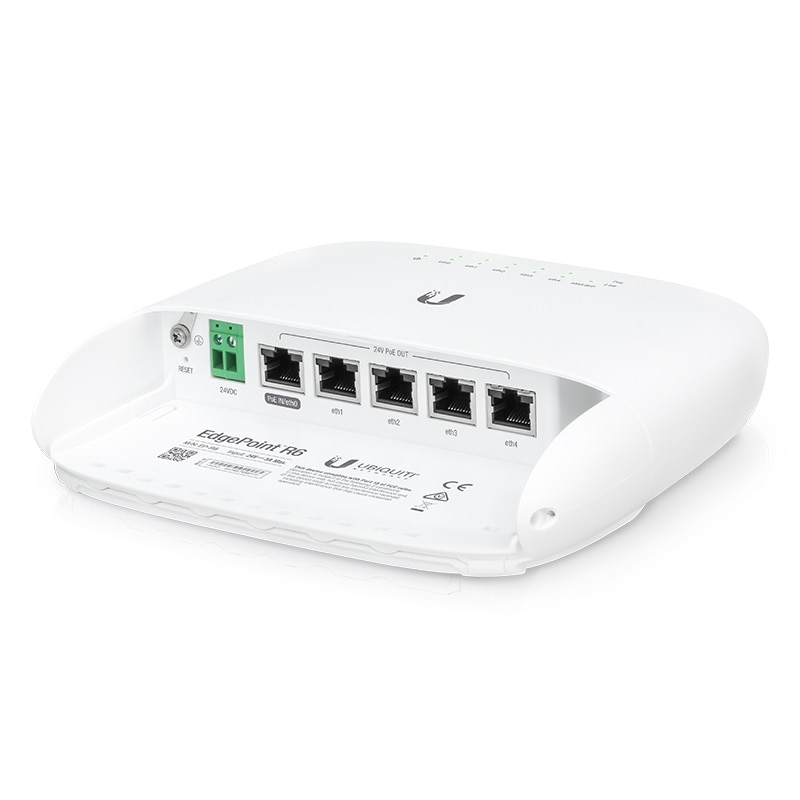

| Ports | Data Ports (5) 10/100/1000 RJ45 Ports (1) 1 Gbps SFP Port |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| System Memory | 256 MB DDR3-1600 RAM |
| Code Storage | 256 MB NAND |
| Certifications | CE, FCC, IC |

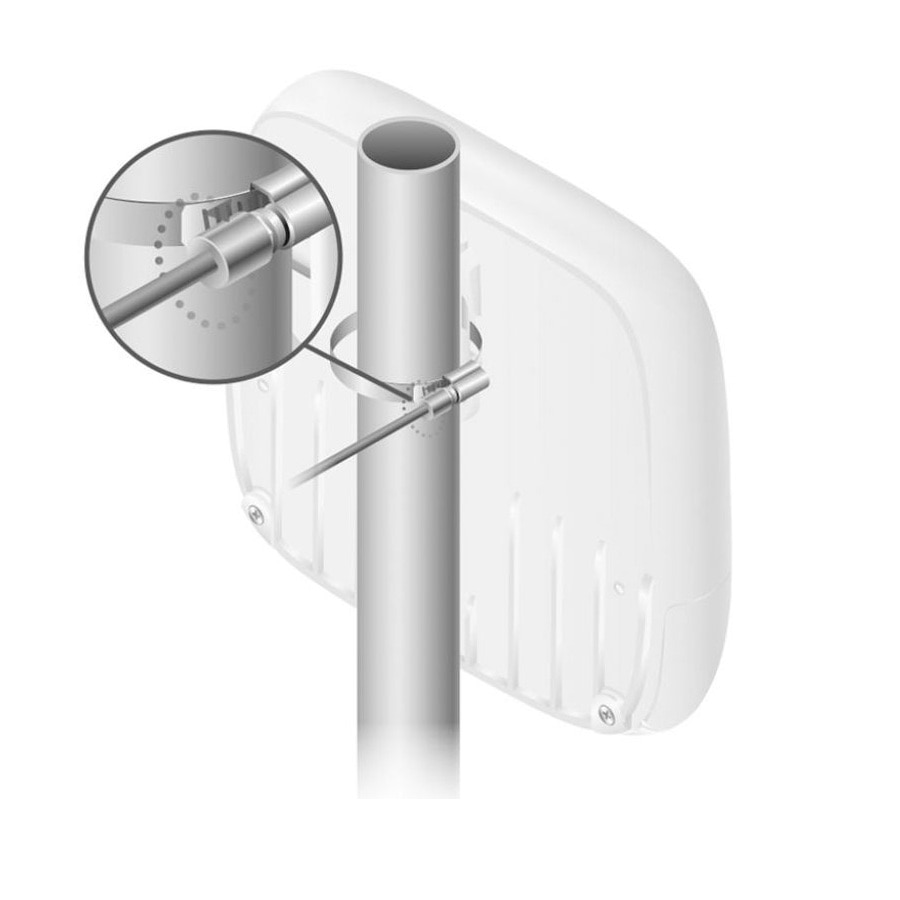

| Pole Mount | Yes |
| Operating Temperature | -20 to 65° C (-4 to 149° F) |
| Operating Humidity | 10 to 90% Noncondensing |
