Ubiquiti 5 GHz LTU-LITE (US Version)

(0)No Reviews yet
  • SKU: LTU-LITE-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download

Out of Stock

Call for Availability

Product Information

Ubiquiti 5 GHz LTU-LITE (US Version)

Incorporating Ubiquiti’s proprietary LTU technology, the LTU Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE. LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.


Features:

  • PTMP CPE
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Auto power adjustments
  • Router mode support
  • Functions in a PtMP environment with the LTU-Rocket as the basestation

Specifications

Specifications LTU-LITE-US

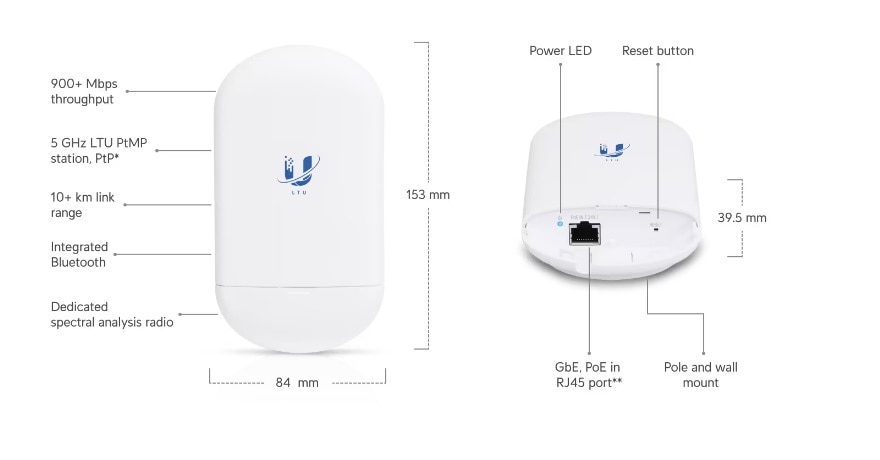

Dimensions 153 x 84 x 39.5 mm (6.02 x 3.31 x 1.56")
Weight 250 g (8.82 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range 22 - 26V
Max. Conducted TX Power 22 dBm per Chain
Gain 13 dBi
Cross-pol Isolation 20 dB Minimum
Max. VSWR 1.8:1
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization Dual Linear
Mounting Pole-Mount Wall Mount (Kit Included)
Wind Loading 20 N @ 200 km/h (4.5 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
OPERATING FREQUENCY (MHZ)
Worldwide 2400 - 2483.5* 4800 - 6200*
US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850
EU 2400 - 2483.5 5150 - 5875
