Ubiquiti NanoStation AirMax 2.4GHz CPE 802.11g/n 200mW
- SKU: LocoM2-US
- Manufacturer: Ubiquiti Networks
- Datasheet: Download
Product Information
Ubiquiti Networks LOCOM2

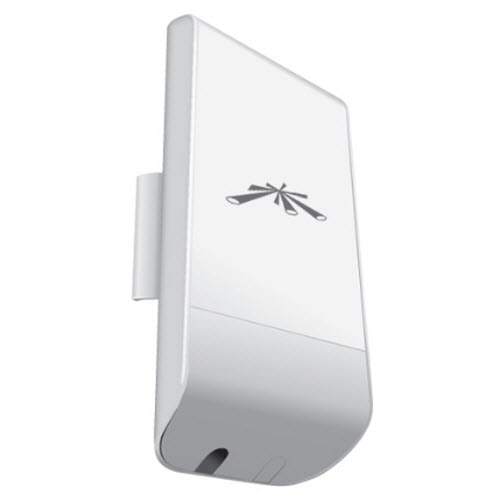

NanoStation Loco M2: Compact and cost-effective AirMax 2.4GHz CPE 802.11g/n 200mW
(For World Version Please Call for Availability)
Wireless NanoStation Loco 2 provides a breakthrough in cost, reliability,& performance. Features up tp 10km of range performance, 25+Mbps of throughput performance,& the powerful, intuitive interface. NanoStation2 Loco is the latest innovation in broadband wireless CPE technology. NanoStation exhibits outstanding antenna performance. NanoStation2 Loco was able to maintain 8 dBi of dual-polarity antenna gain in a compact form-factor using a highly efficient and innovative patch array antenna design.
Specifications
Specifications LOCOM2
| Dimensions | 161 x 31 x 80 mm (6.31 x 1.22 x 3.15") |
| Processor Specs | Atheros, MIPS 24KC, 400MHz |
| Memory Information | 32MB SDRAM, 8MB Flash |
| Networking Interface | 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
| Wireless Approvals | FCC Part 15.247, IC RS210 |
| RoHS Compliance | Yes |
| TX Power | 23dBm, +/-2dB |
| RX Sensitivity | -96dBm +/-2dB |
| TCP/IP Throughput | 150Mbps+ |
| Max Power Consumption | 5.5 Watts |
| Power Supply | 24V, 0.5A surge protection integrated POE adapter included |
| Power Method | Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
| Operating Temperature | -30C to +80C |
| Operating Humidity | 5 to 95% Condensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Weight | 0.18 kg |
