Ubiquiti Nanostation 5GHz 802.11a/n hi-power (27dBm) 2x2 MIMO AirMax TDMA PoE station
|Dimensions||294 x 31 x 80 mm (11.57 x 1.22 x 3.15")|
|Weight||400 g (14.11 oz)|
|Power Supply (PoE)||24V, 0.5A|
|Max. Power Consumption||8W|
|Power Method||Passive PoE (Pairs 4, 5+; 7, 8 Return)|
|Operating Frequency||5725-5850 MHz|
|Networking Interface||(2) 10/100 Ethernet Ports|
|Processor Specs||Atheros MIPS 74Kc, 560 MHz|
|Memory||64 MB DDR2, 8 MB Flash|
|Cross-pol Isolation||22 dB Minimum|
|Beamwidth||43° (H-pol) / 41° (V-pol) / 15° (Elevation)|
|Enclosure||Outdoor UV Stabilized Plastic|
|Mounting||Pole-Mount (Kit Included)|
|Operating Temperature||-30 to 75° C (-22 to 167° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Wireless Approvals||FCC Part 15.247, IC RS210, CE|
|Shock & Vibration||ETSI300-019-1.4|

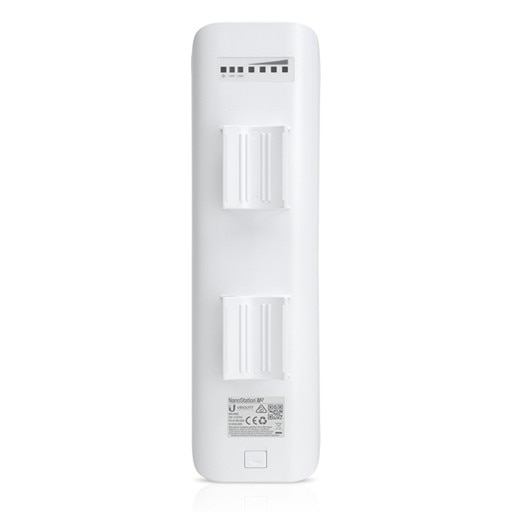

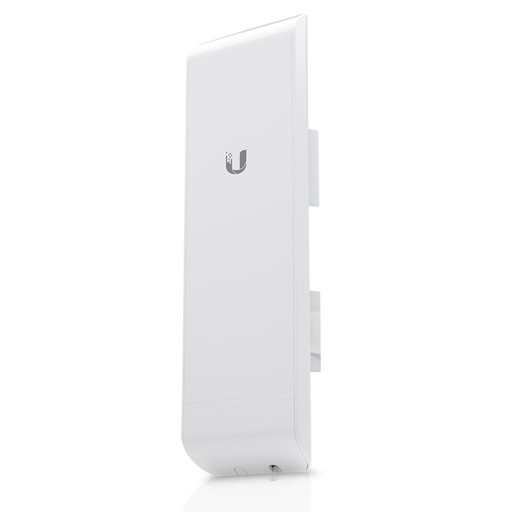

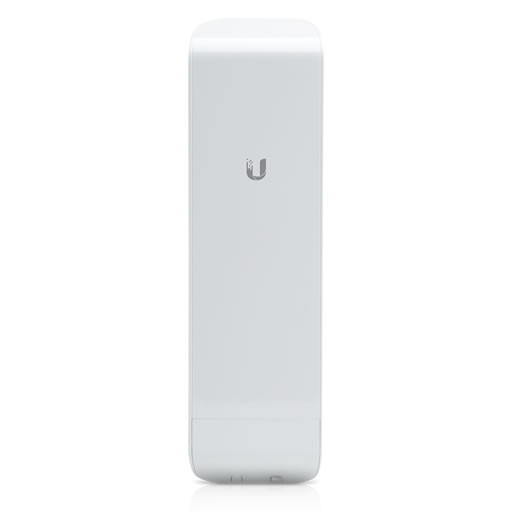

Ubiquiti Nanostation M5
Ubiquiti Networks NSM5 5GHz Nanostation M5 2x2 ROW
5GHz 802.11a/n hi-power (27dBm) 2x2 MIMO AirMax TDMA PoE station. This is the ultimate 5Ghz wireless outdoor CPE with integrated 14dBi dual polarity antenna.

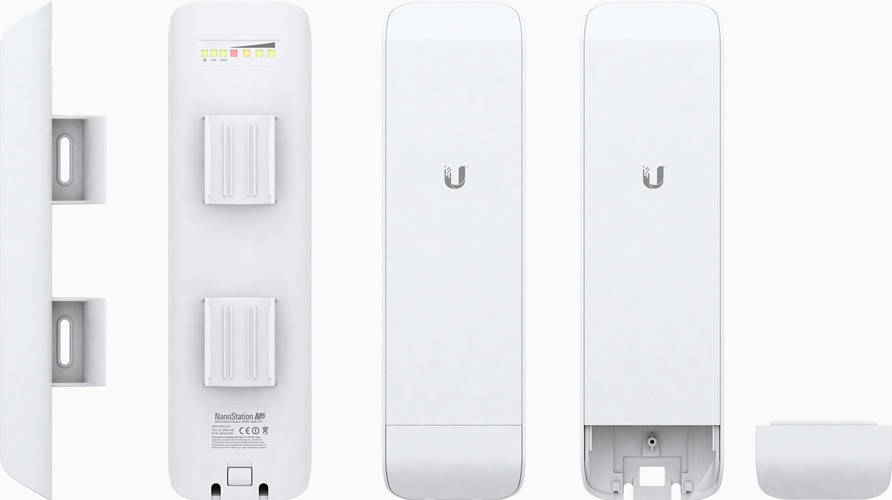

Compact CPE Design
The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
Plug and Play Installation
The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.

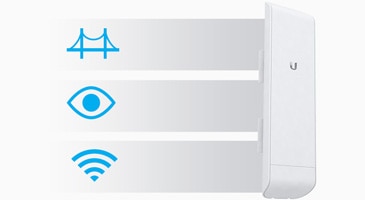

Versatile Application Use
The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.

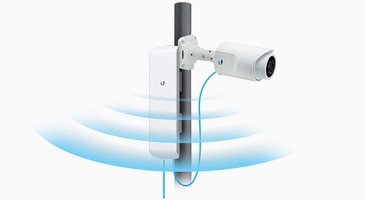

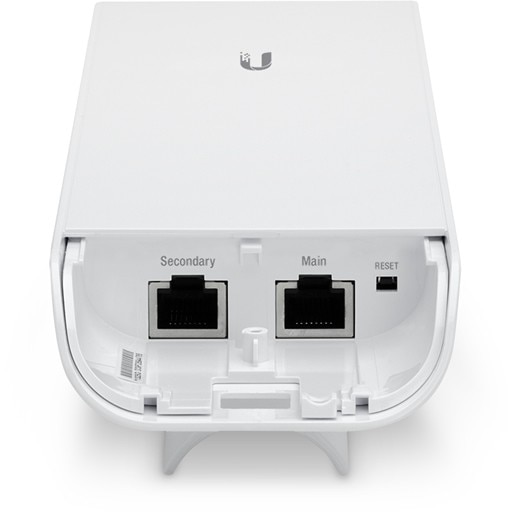

Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

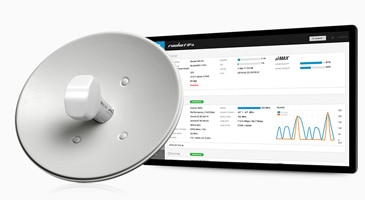

Powerful airOS® Features
Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

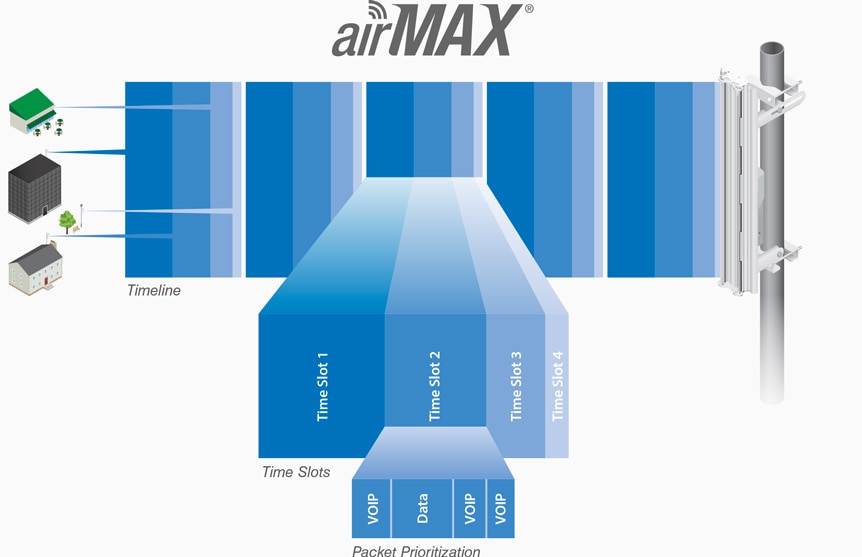

Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide,� exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

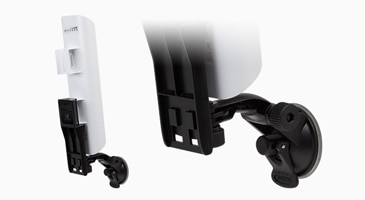

Window/Wall Mounting Kit
Use the NanoStation® Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.

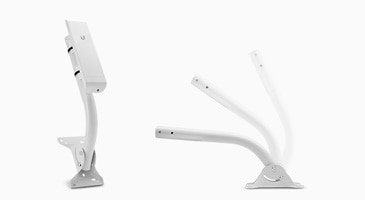

Wall/Pole Mounting Kit
The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation®M. 90° tilt adjustment allows for easy positioning.
