Ubiquiti Networks AF-5U 5.7-6.2GHz airFiber PtP 500Mbps+

(0) No Reviews yet
  • SKU: AF-5U-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$999.00

Specifications AF-5U-US

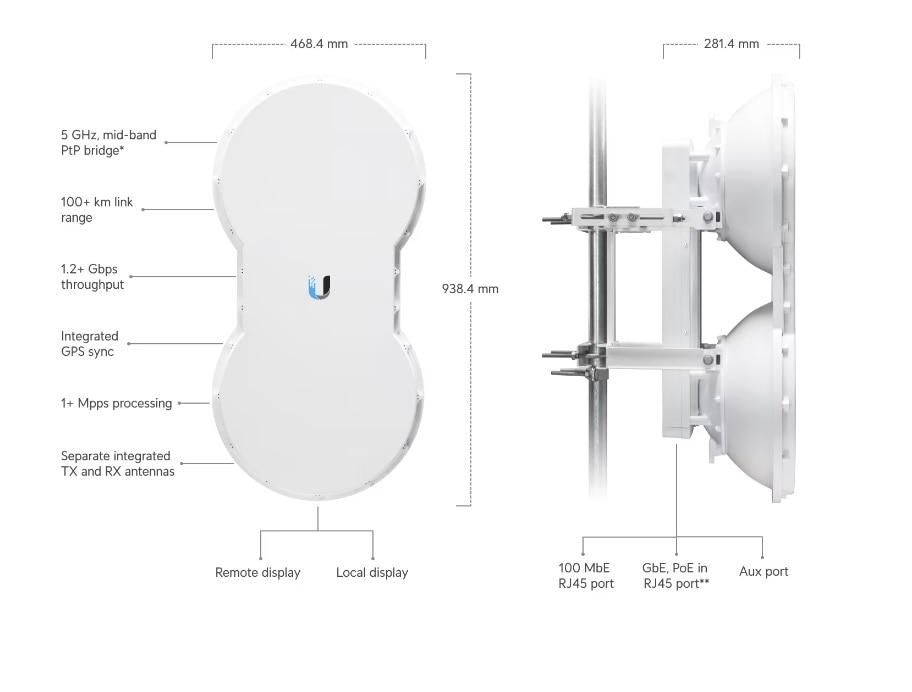

Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08")
Weight 16 kg (35.27 lb) Mount Included
Max. Power Consumption 40 W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet
Supported Voltage Range 42-58VDC
Certifications CE, FCC, IC

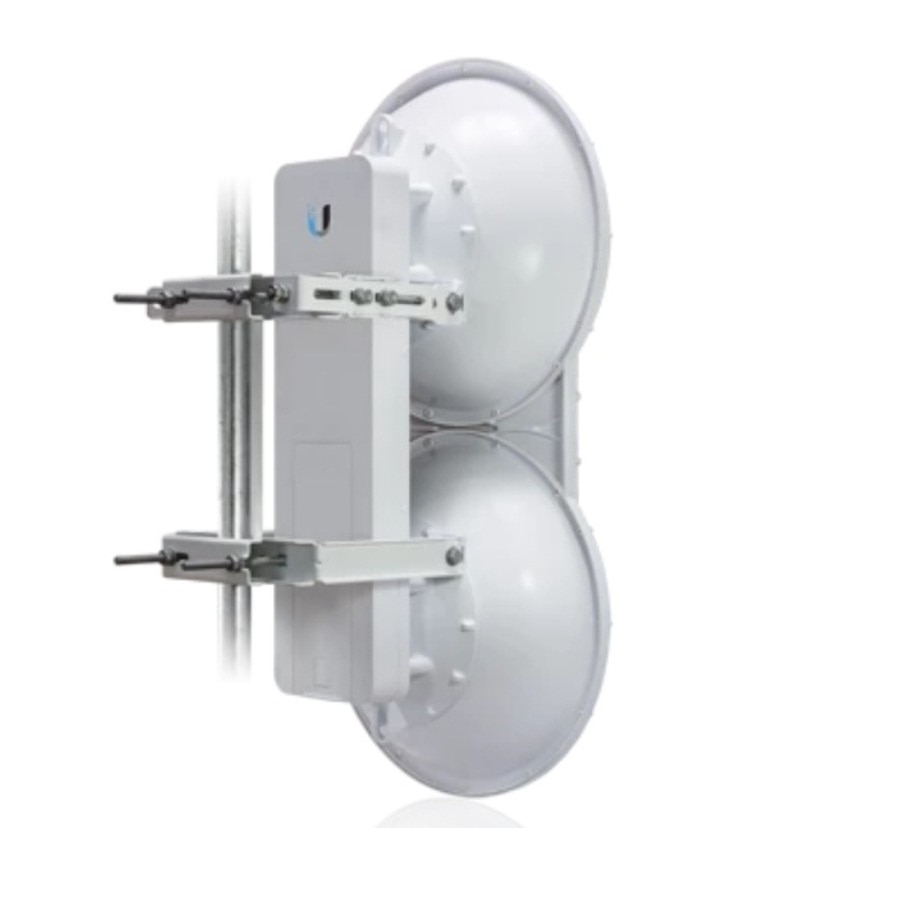

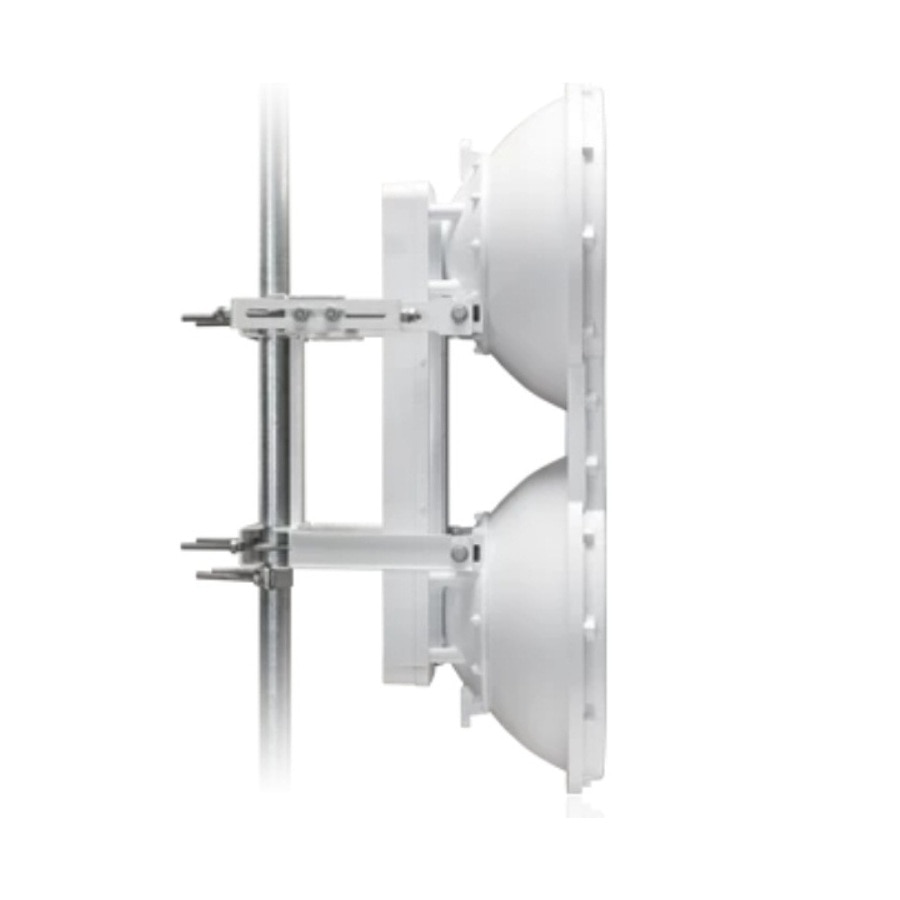

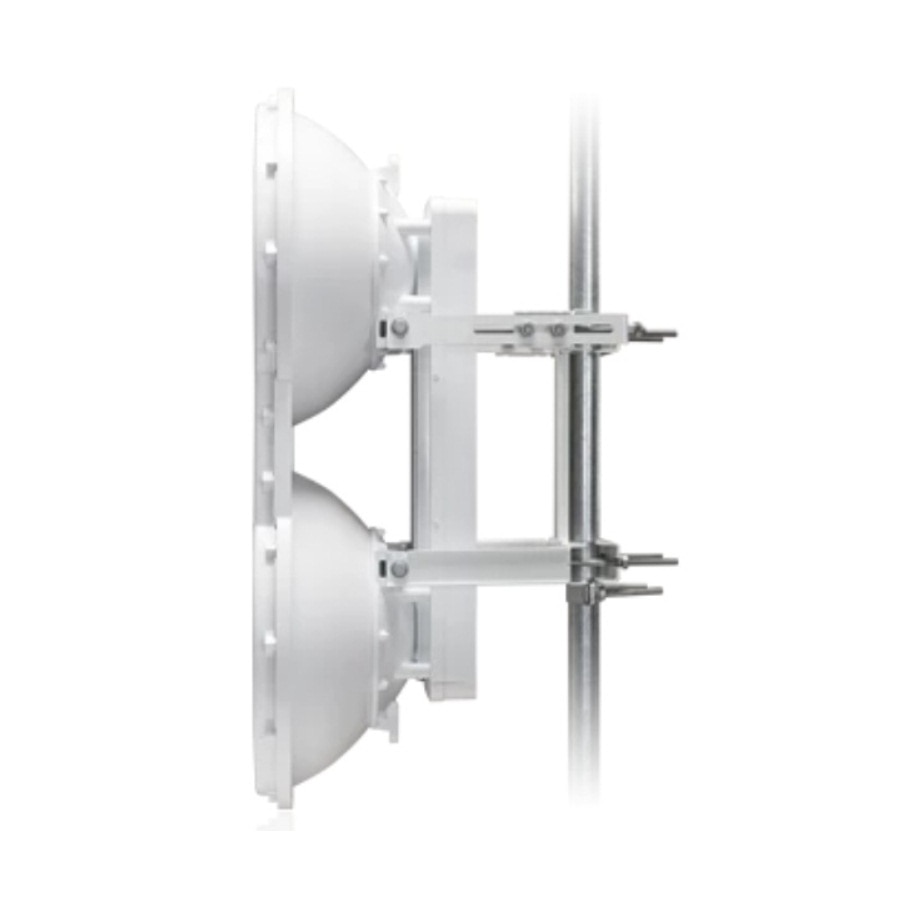

Mounting Pole Mount Kit (Included)
Wind Loading 863 N @ 200 km/hr (194 lbf @ 125 mph)
Wind Survivability 200 km/hr (125 mph)
Operating Temperature -40 to 55° C (-40 to 131°F)
LEDs (12) Status LEDs:
Data Port Link/Activity
Data Port Speed
Management Port Link/Activity
Management Port Speed
GPS Synchronization
Master/Slave
Link Status
Modulation Mode 0.25x to 4x, 6x, 8x, 10x (Unlabeled), Overload
Remote and Local Displays (Calibrated Signal Strength)
Operating Frequency
AF-5
FCC 15.247, 15.407, IC RSS-210 ETSI EN 301 893, EN 302 502 Other Regions
5470 - 5600 MHz, 5650 - 5850 MHz
5470 - 5875 MHz
5470 - 5950 MHz
AF-5U
FCC 15.247, IC RSS-210
ETSI EN 302 502
Other Regions
5725 - 5850 MHz
5725 - 5875 MHz
5725 - 6200 MHz
Interface
Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
System
Maximum Throughput 1.2+ Gbps
Maximum Range 100+ km (Dependent on Regulatory Region)
Packets per Second 1+ Million
Encryption 128-Bit AES
Uplink/Downlink Ratio 50% Fixed
Radio Frame Synchronization GPS
Dynamic Frequency Selection AF-5 AF-5U CE, FCC/IC CE, (FCC/IC Not Applicable)

Ubiquiti Networks AF-5U-US (US Version)

Ubiquiti 5.7-6.2GHz airFiber PtP 500Mbps+ US

Introducing airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks™. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Ubiquiti’s innovative proprietary modem technology was purpose-built to address the specific challenges of outdoor, PtP (Point‑to-Point) bridging and high-performance network backhauls. Every aspect of the radio has been carefully simulated and designed to optimize range, speed, and latency performance in the harshest RF noise environments.

Supports high-band 5 GHz frequencies.

NOTE: Price shown is for a single unit. airFiber® is normally purchased in pairs to form a single link.

Two units are required for a complete link.

  • High-band 5 GHz frequencies 5725 - 6200 MHz
  • (1) 10/100/1000 Ethernet Port
  • (1) 10/100 Ethernet Port
  • (1) RJ-12, Alignment Tone Port
  • 50V, 1.2A PoE GigE Adapter (Included)
  • Passive PoE
  • Pole Mount Kit (Included)
