Ubiquiti EdgePoint FiberProtect 6 Gigabit 2 SFP Router
- SKU: EP-R8
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

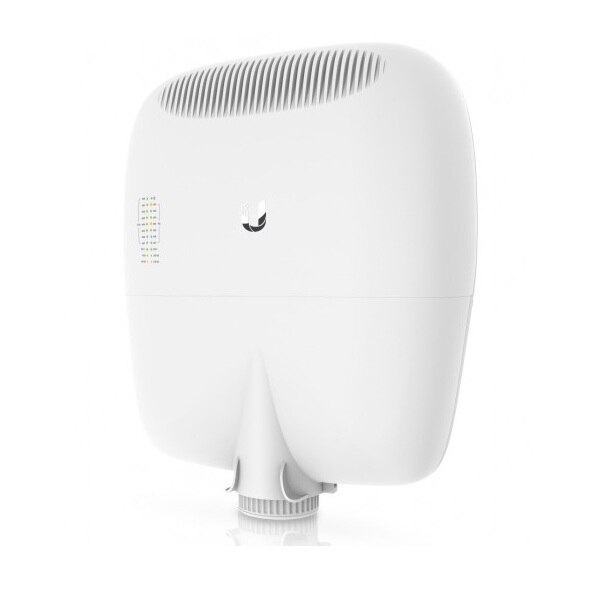

Ubiquiti Networks EP-R8
EdgePoint FiberProtect 6 Gigabit 2 SFP Router
Application-specific WISP control point with (6) Gigabit RJ45 ports and (2) RJ45/SFP hybrid ports.
- Layer-3 router
- (6) GbE RJ45 ports
- (2) 1G RJ45/SFP combination ports
- Weatherproof enclosure for outdoor use
Breakthrough in Tower Deployment
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
Purpose-Built for WISP Control
The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX® with fiber backhaul and versatile powering capabilities.

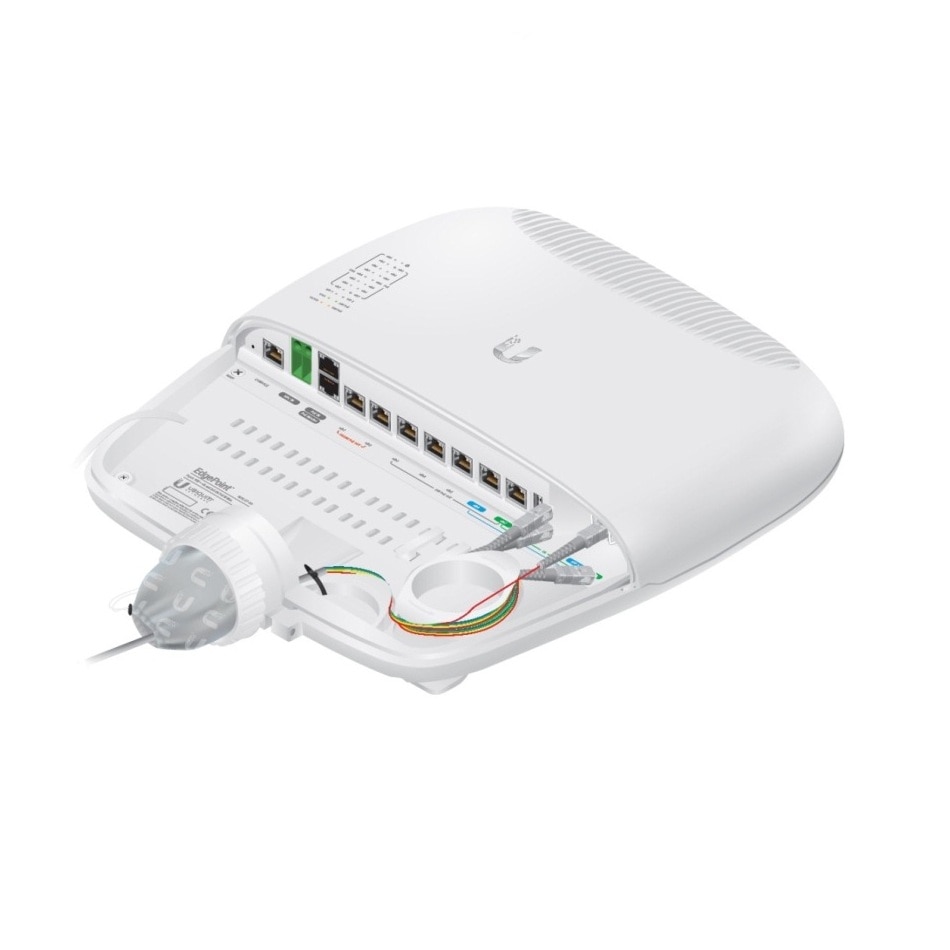

All-in-One Design
EdgePoint FiberProtect 6 Gigabit 2 SFP Router
A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.
Advanced Routing Applications
Powerful routing features – such as link balancing – provide redundancy and increased performance for outdoor wireless links.
Specifications
Specifications EP-R8
| Dimensions | Without wall-mount: 326.6 x 382.7 x 88.8 mm (12.9 x 15.1 x 3.5") With wall-mount: 326.6 x 382.7 x 105.5 mm (12.9 x 15.1 x 4.2") |
| Weight | Without wall-mount: 3.4 kg (7.5 lb) With wall-mount: 3.8 kg (8.4 lb) |
| Enclosure material | Diecast aluminum alloy, UV-resistant polycarbonate |
| Mount | Pole/wall mount |
| Wind loading | 153 N at 200 km/h (34 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Processor | Dual-core 600 MHz, MIPS64 with hardware acceleration for packet processing |
| System memory | 2 GB DDR3-1600 RAM |
| Code storage | 4 GB |

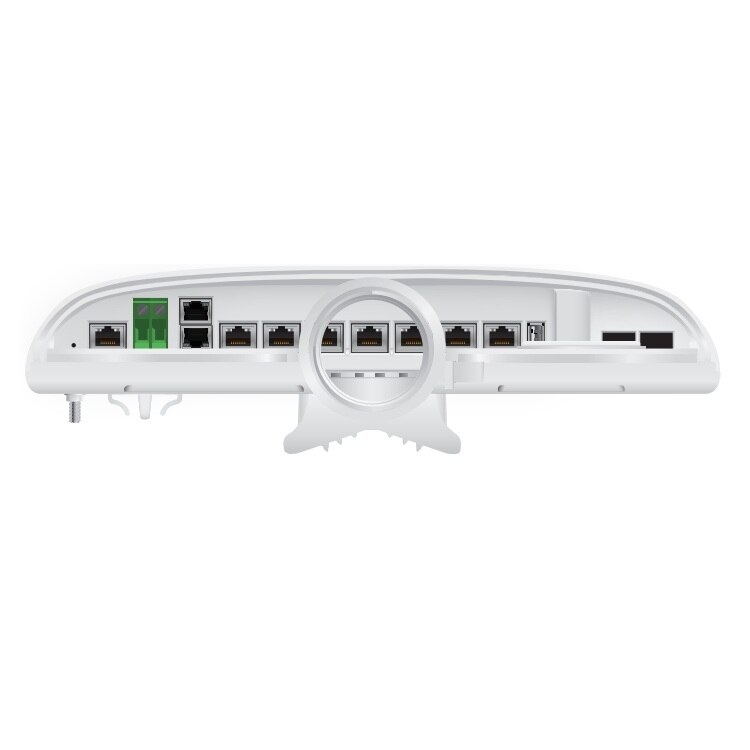

| Networking interface | (1) RJ45 serial port (1) RJ45 PoE In port (6) 10/100/1000 RJ45 ports (2) 10/100/1000 RJ45/SFP combination ports |
| Power method* | (1) DC terminal block (2) RJ45 (PoE In and eth0) 54V DC, 6A input |
| Power supply | Min. 54V / 0.8A (Excludes PoE output) |
| Passive PoE input* | (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) passive PoE, eth0 and PoE In |
| Passive PoE output | (2) 54V or 24V / 1.4A, 4-pair (+1, 2, 4, 5; -3, 6, 7, 8) passive PoE, eth1 to eth2 (5) 24V / 0.7A, 2-pair (+4, 5; -7, 8) passive PoE, eth3 to eth7 |
| Power monitoring | (1) DC terminal block, input power (2) RJ45, PoE In and eth0, input power |
| Supported voltage range | 56–42V DC |
| Max. power consumption | 40W (Excludes PoE output) |
| Button | Factory reset |
| LEDs | System: Power Data ports: speed/link/activity, PoE SFP ports: speed/link/activity |
| Ambient operating temperature | -40 to 65° C (-40 to 149° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
