Ubiquiti Networks G4 Doorbell Pro PoE Kit
- SKU: G4 Doorbell Pro PoE Kit
- Manufacturer: Ubiquiti Networks
- Installation Guide - PoE Kit: Download
- Installation Guide - WiFi: Download
Product Information

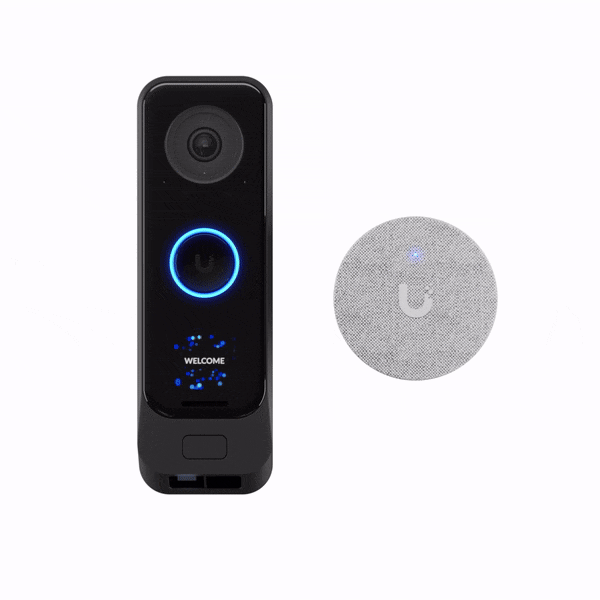

Ubiquiti Networks G4 Doorbell Pro PoE Kit
G4 Doorbell Pro PoE Kit
Your premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
This Ubiquiti G4 Doorbell Professional PoE Kit is designed to enhance the setup and functionality of the G4 Doorbell Professional by providing Power over Ethernet (PoE) features. It is curated explicitly for individuals seeking reliable and efficient power and data linkage for their video doorbell setup. The kit utilizes Ubiquiti's cutting-edge technology and excellence. This Kit has been designed to focus on durability and dependability. Its components are encased in sturdy materials capable of enduring diverse environmental circumstances, and a weatherproof IPX4-rated enclosure guarantees sustained functionality whether the device is placed indoors or outdoors.
Features:
- Improved HDR and low-light performance
- Programmable welcome display and secondary package-detection camera
- AI event detections
- Connect and power using PoE
- Integrated 2-way audio
- Includes PoE Chime
- Weather-resistant (outdoor covered)

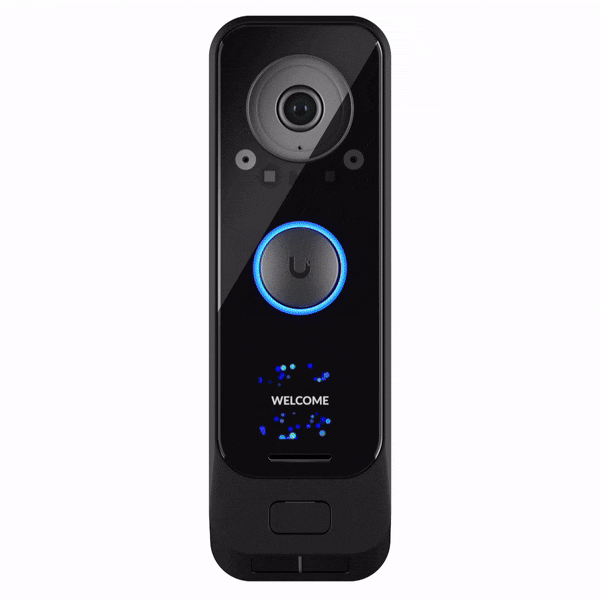

Ubiquiti Networks UVC-G4 Doorbell Pro
WiFi-connected video doorbell with a primary 5MP night vision camera, secondary 8 MP package camera, programmable display, and porch light.
The G4 Doorbell Pro is a WiFi-enabled video doorbell equipped with a primary 5MP camera and a secondary 8MP package camera. The doorbell's main camera is equipped with IR LED to provide enhanced night vision that, when combined with the built-in porch light, ensures a reliably clear surveillance feed around the clock. The G4 Doorbell Pro also features echo-cancelling, two-way audio so you can interact with visitors, and its programmable display allows you to give alerts or delivery instructions to couriers. Designed to be a powerful, plug-and-play security tool, the G4 Doorbell Pro can be set up and configured in minutes with the UniFi Protect application.
Features:
- Streams 1080p HD video at 30 FPS
- Dual-band WiFi and GbE* connectivity
- (1) 5MP camera with an IR LED [Video output: 1600x1200 (2MP), 30 FPS]
- (1) 8MP package camera [Video output: 1600x1200 (2MP), 2 FPS, no IR LED]
- Two-way audio with echo cancellation
- Built-in porch light that illuminates objects up to 2 meters away
- Motion detection sensor
- IPX4-rated, weather-resistant casing
- Programmable display
- Included wall mount, angle mount, screw kit, and chime power kit*
- Easy, Bluetooth-powered setup via the UniFi Protect mobile app
Specifications

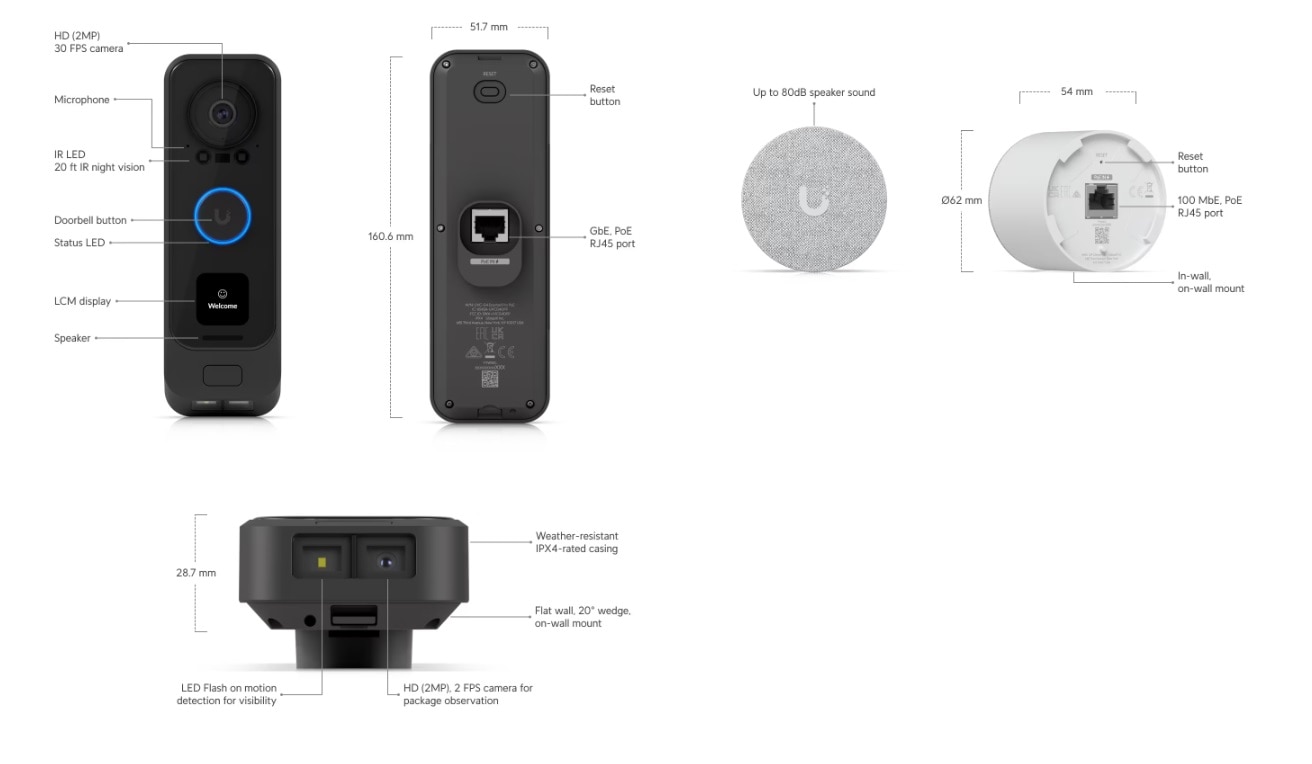

Specifications G4 Doorbell Pro PoE Kit
Dimensions | Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1") On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1") |
IR Night Vision | 6 m (20 ft) |
Smart Detections (People, Vehicles, Animals) | Yes |
Resolution | FHD |
Field of View | Main camera: H: 138°, V: 114°, D: 155° (LDC On) Main camera: H: 160°, V: 117°, D: 160° (LDC Off) Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
Audio | Two-way audio |
Weatherproofing | IPX4 (While Covered) |
Mounting | Wall, wedge (Included) Gang box, junction box (Optional) |
UniFi Application Suite | Protect |
Performance | |
Networking Interface | GbE RJ45 port |
Video | |
Max. Frame Rate | 30 FPS |
Resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
Optics | |
Sensor | Main camera: 5MP CMOS Package camera: 8MP CMOS |
Lens | Fixed focal length |
Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware | |
Max. Power Consumption | 7W |
Supported Voltage Range | 37—57V DC |
Power Method | PoE |
Processor | Quad-core Arm® Cortex®-A53 based chip |
Weight | Device: 264 g (9.3 oz) Wall mount: 56 g (2 oz) Wedge: 33 g (1.2 oz) On-wall mount: 53 g (1.9 oz) |
Enclosure Material | Polycarbonate, aluminum alloy |
Mount Material | Polycarbonate, aluminum alloy |
Button | Ring Button Factory Reset |
Ambient Operating Temperature | -30 to 40º C (-22 to 104º F) |
Ambient Operating Humidity | 0 to 90% noncondensing |
Certifications | CE, FCC, IC |
Chime | |
Dimensions | Device: Ø62 x 54 mm (Ø2.5 x 2.1") In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5") On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8") |
Weight | Device: 158 g (5.6 oz) In-wall mount: 91 g (3.2 oz) On-wall mount: 28 g (1 oz) |
Enclosure Material | Polycarbonate, aluminum alloy |
Mounting Material | Polycarbonate, zinc alloy |
Networking Interface | 10/100 MbE port |
Power Method | PoE |
Supported Voltage Range | 44—57V DC |
Max. Power Consumption | 3W |
Speaker | Yes |
Buzzer | Yes |
Buttons | (1) Factory-reset |
Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
Ambient Operating Humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
LEDs | R/G/B/W |
Software | |
Mobile app | UniFi Protect iOS™ and Android™ |

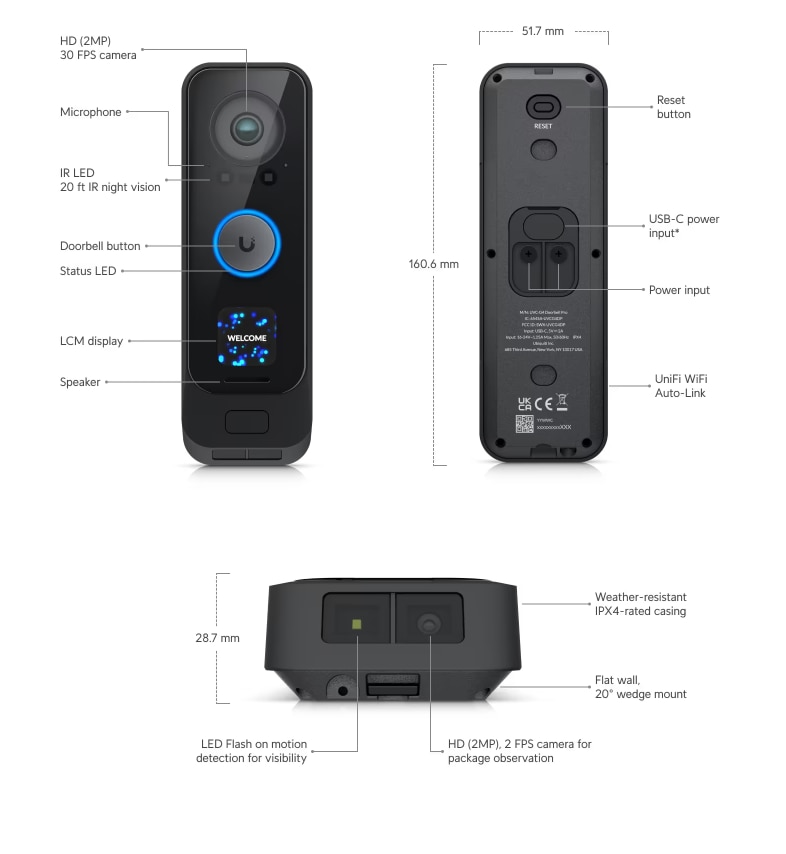

Specifications UVC-G4 Doorbell Pro
Dimensions | 160.6 x 51.7 x 28.7 mm (6.32 x 2.03 x 1.13") |
Weight | Without mount: 253 g (8.92 oz) With flat wall mount: 286 g (10.08 oz) With 20° wedge mount: 325 g (11.46 oz) |
Enclosure materials | Polycarbonate, aluminum alloy |
Mounting materials | Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
Weatherproofing | IPX4 |
Optics | |
Sensor | 5 MP CMOS sensor |
Lens | Fixed focal length |
View angle | H: 138°, V: 114°, D: 155° |
Night mode | IR LED illumination and an IR cut filter |
Video | |
Video compression | H.264 |
Resolution | 1600 x 1200 (4:3) |
Maximum frame rate | 30 FPS |
System | |
Processor specs | Quad core Arm® Cortex®-A53 based chip |
Memory information | 512 MB |
Management interface | UniFi Protect application |
Networking interface | 802.11a/b/g/n/ac WiFi Bluetooth™ 5.0 GbE support (with UACC-Adapter-DBPOE) |
Flash memory support | 256 MB |
Max. power consumption | 10VA |
Power requirements | 16 to 24VAC, 1.25A max., 50/60 Hz USB-C power cable, 5VDC, 2A |
Supported voltage range | 37 to 57VDC |
Link/activity LED | Yes |
Button | Factory reset |
Mounting | Flat wall, 20° wedge (kits included) |
Operating temperature | -10 to 40º C (14 to 104º F) |
Operating humidity | 10 to 90% noncondensing |
Certifications | FCC, IC, CE |
Audio | |
Microphone | Yes (can be disabled) |
Speaker | Yes |
Software | |
UniFi OS application | UniFi Protect |
Mobile app | UniFi Protect iOS and Android |
Compatible Mechanical Chimes | |
Manufacturer | Model |
Broan-NuTone | LA126WH |
Broan-NuTone | LA11WH |
Heath Zenith | SL-2735 |
Craftmade | CTPW-RG |
Broan-NuTone | LA39WH |
Newhouse Hardware | CHM3D |
Compatible Digital Chimes | |
Manufacturer | Model |
Broan-NuTone | LA600WH |
IQ AMERICA | DW-2850 |
IQ AMERICA | DW-2840 |
