Ubiquiti 60GHz Radio airMAX GigaBeam Plus 1.5+Gbps (US Version)

  • SKU: GBE-Plus-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: 190 In Stock    (updated live)
US$‎179.00

Add-Ons (click to select)

Specifications GBE-Plus-US

MECHANICAL

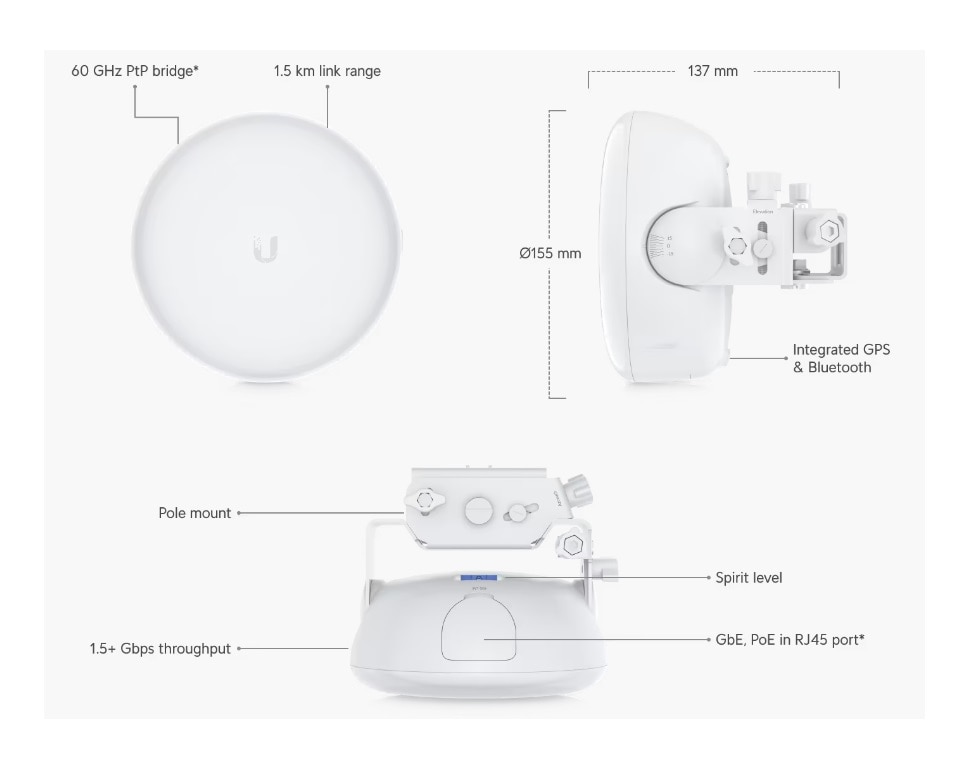

DimensionsØ155 x 137 mm (Ø6.1 x 5.4")
Weight1kg (2.2 lb)
Enclosure MaterialsUV Resistance Polycarbonate, Stainless Steel
Mount MaterialsMetal
Wind Loading50 N at 200 km/h (11.24 lbf at 125 mph)
HARDWARE
ProcessorQuad-Core ARM® Cortex® A7
Memory256 MB DDR3
Networking Interface10/100/1000 Mbps Ethernet RJ45
Management InterfaceEthernet In-Band
BLUETOTH
RF ConnectionsInternal
Max. Power Consumption11W
Power MethodPassive PoE (Pairs 4, 5+; 7, 8-)
Power Supply24VDC, 0.5A Gigabit PoE Adapter 24V, 1A for using Motor Accessory
Supported Voltage Range22 to 26VDC
ESD/EMP ProtectionAir/Contact: ± 24kV
Operating Temperature-40 to 60° C (-40 to 140° F)
Operating Humidity5 - 95% Noncondensing
CertificationsFCC, IC, CE
LEDS
PowerFlashing White: Bootup in Progress
White: Not Connected to Ubiquiti® Internet Service Provider (UISP™)
Blue: Connected to UISP
EthernetFlashing Blue: Ethernet Traffic Detected
60GHzBlue: Active Connection
SOFTWARE
OSairOS®
Operating ModesPtP as Access Point or Station
Ubiquiti Specific FeaturesIntegrated 60 GHz Radio, Discovery Protocol
SecurityWPA2 AES Only
DashboardYes
Wireless SettingsYes
Network SettingsYes
SystemYes
ServicesUISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery
ToolsAntenna Alignment Tool, Discovery Utility, Traceroute, Speed Test
Software ManagementBluetooth Management for Easy Setup Over UISP™ App WEB UI
Minimum Software RequirementsAny Modern Web Browser/iPhone/Android
RF
Operating Frequency*57,000 - 66,000 MHz * Depends on regulatory region.
Max. Conducted TX Power17 dBm
Channel Bandwidth2160 MHz
Operating Channels58320, 60480, 62640, 64800 MHz
Antenna Gain35 dBi
BeamwidthHPOL: NaN (The Antenna is Only Vertically Polarized) VPOL: 3° Elevation: 3°
Management Radio2400 - 2483.5 MHz
Electrical Downtilt

Ubiquiti Networks GBE-Plus-US

60GHz Radio airMAX GigaBeam Plus 1.5+Gbps (US Version)

airMAX® 60 GHz Radio System with True Duplex Gigabit Performance.

GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP™️ Mobile app via Bluetooth.


Features:

  • Low-Interference 60 GHz Spectrum
  • 35 dBi Antenna Gain with Integrated Reflector
  • 1.5+ Gbps Bidirectional Throughput with Low Latency
  • Long Range, up to 1.5 km
