  • Ubiquiti 5GHz IsoStation ac Gen2 CPE 14dBi

Ubiquiti 5GHz IsoStation ac Gen2 CPE 14dBi

(0) No Reviews yet
  • SKU: IS-5AC-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: 23 In Stock (updated live)
$129.00

Specifications IS‑5AC-US

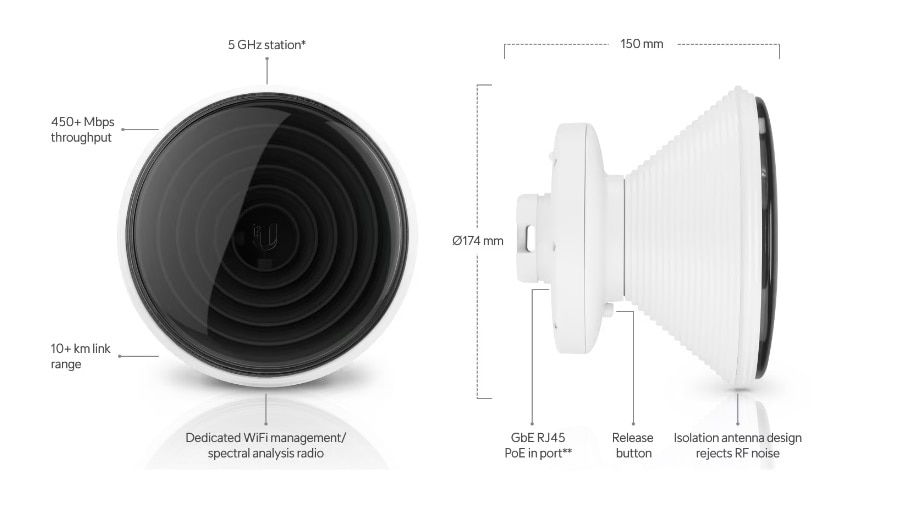

Dimensions With Horn: 174 x 174 x 150 mm (6.85 x 6.85 x 5.91") Without Horn: 131 x 131 x 65 mm (5.16 x 5.16 x 2.56")
Weight With Horn: 725.7 g (1.6 lb) Without Horn: 408.2 g (0.9 lb)
Operating FrequencyWorldwide 2412 - 2462 MHz 5150 - 5875 MHz, USA: U-NII-1 5150 - 5250 MHz, USA: U-NII-3 5725 - 5850 MHz
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Gain 14 dBi
Beamwidth 45° (Default Horn)
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74 Kc
Memory 64 MB DDR2
LED (1) Power
Mounting Pole-Mount
Wind Loading 36 N @ 200 km/h (8.09 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24 kV Contact/Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE

Ubiquiti Networks IS‑5AC-US

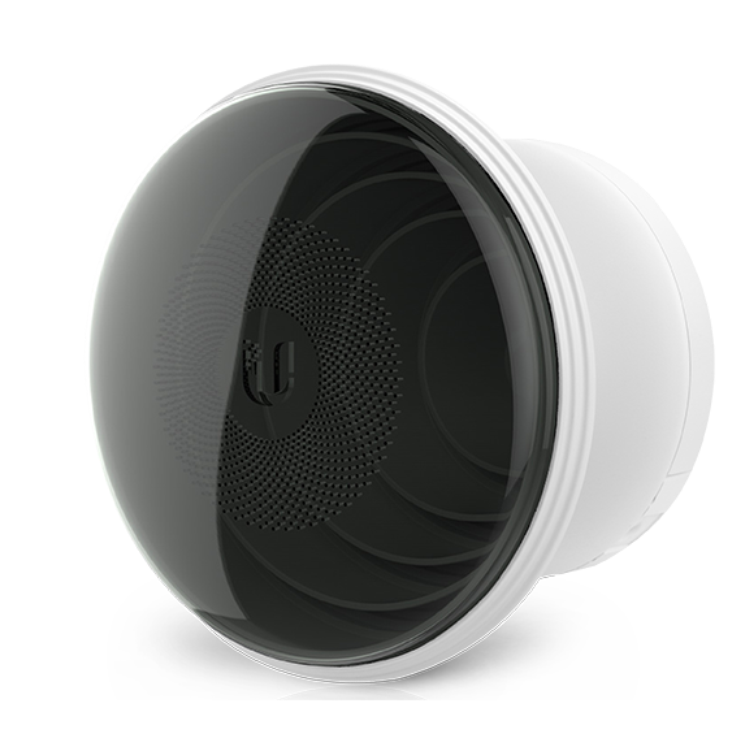

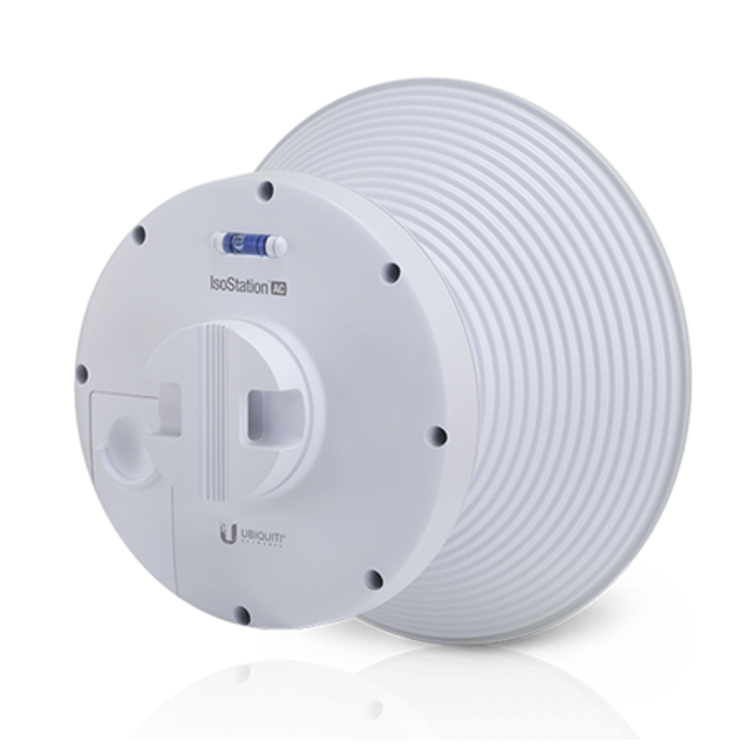

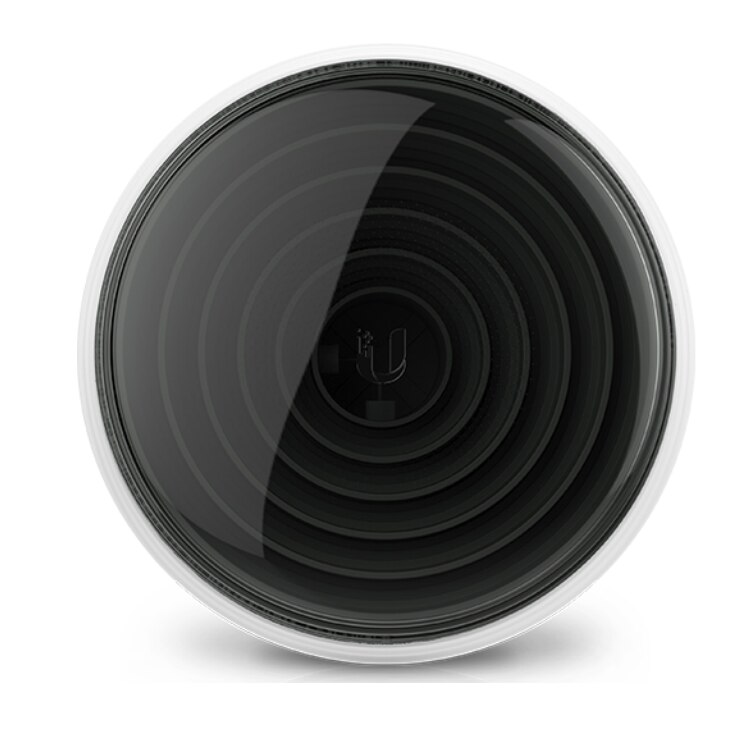

Ubiquiti 5GHz Isostation ac Gen2 CPE 14dBi

With a die-cast aluminum base and interchangeable antenna, the IsoStation™ is available in two models and brings increased performance to your network using technology that isolates beam communications between your devices. The IsoStation AC delivers throughput speeds of up to 450+ Mbps, and the IsoStation M5 delivers throughput speeds of up to 100+ Mbps.

Modular Design

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.

Beam Performance Perfected

The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity

IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

High MAC Efficiency

High MAC efficiency provides ±80% PHY RATE throughput.

Management Wi-Fi Radio

The IsoStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
